Quick Details
-
Material:
-
carton
-
Weight:
-
depends
-
Size:
-
depends
-
Power:
-
0
-
Productivity:
-
depends on size and micron rate
-
Weight (KG):
-
5 kg
-
Product name:
-
high flow filter cartridge
-
Micron Rate:
-
1, 5, 10 to 100 micron
-
Length:
-
20", 40", 60'' inch
-
Filter Medium:
-
PP, Melt Blown PP, Cellulose
-
Code / End Cap:
-
glass fiber reinforced polypropylene
-
Usage:
-
liquid filter elements, water filter parts
-
Inner core:
-
PP or glass fiber
-
Certification:
-
CE ISO
-
Diameter:
-
6'', 152mm / 6.5'', 165mm
-
Replacement:
-
P/ALL PARK/ER 3/M
Quick Details
-
Core Components:
-
liquid cartridge filters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lvyuan / OEM
-
Material:
-
carton
-
Weight:
-
depends
-
Size:
-
depends
-
Power:
-
0
-
Productivity:
-
depends on size and micron rate
-
Weight (KG):
-
5 kg
-
Product name:
-
high flow filter cartridge
-
Micron Rate:
-
1, 5, 10 to 100 micron
-
Length:
-
20", 40", 60'' inch
-
Filter Medium:
-
PP, Melt Blown PP, Cellulose
-
Code / End Cap:
-
glass fiber reinforced polypropylene
-
Usage:
-
liquid filter elements, water filter parts
-
Inner core:
-
PP or glass fiber
-
Certification:
-
CE ISO
-
Diameter:
-
6'', 152mm / 6.5'', 165mm
-
Replacement:
-
P/ALL PARK/ER 3/M

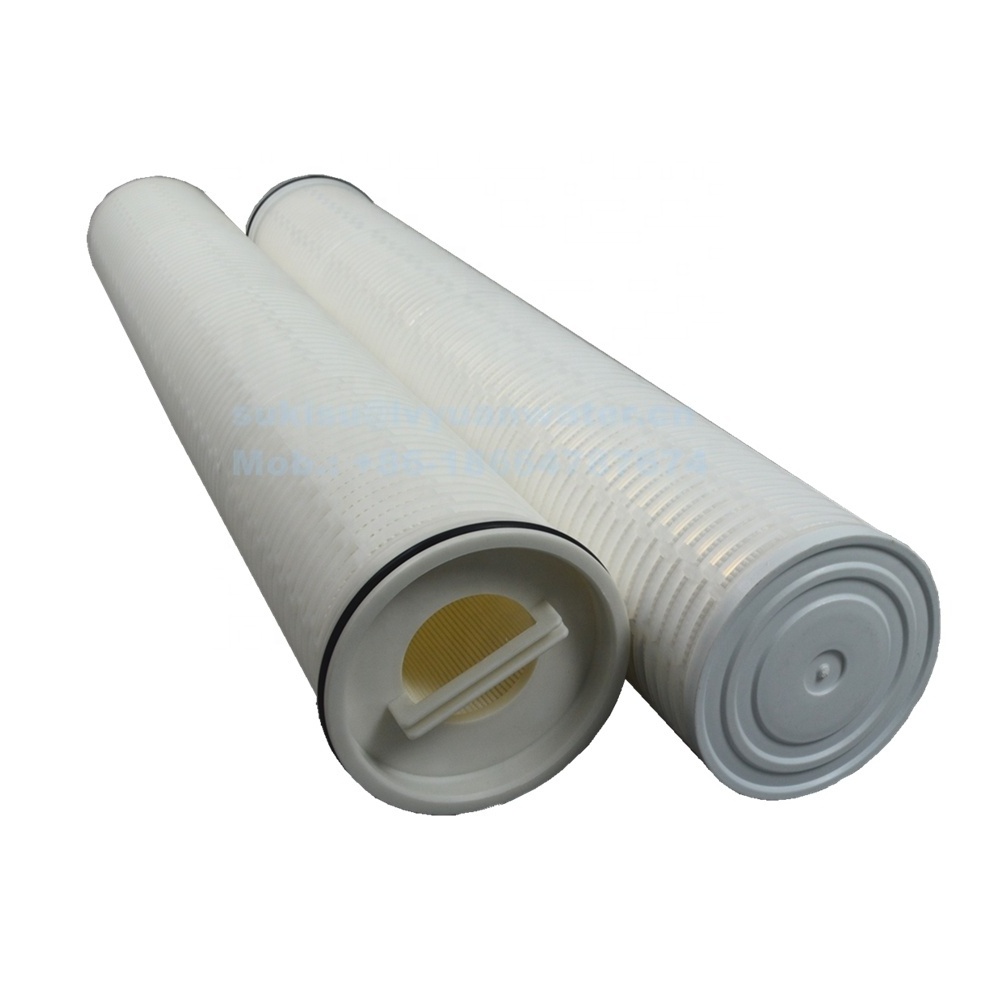

Industrial large flux cartridges Pleated Cartridge Filter High Flow Filter Cartridge for R.O sea water purification system
Industrial Pleated Cartridge Filter High Flow Filter Cartridge for R.O water purification system
pollutant capacity, can meet different kinds of flow requirements. With design of large diameter, in addition to increasing the effective filtring area, it can greatly reduce the use number of cartridge and reduce the size of filter housing. Therefore, in many applications, it has the advantages of large flow, long life filtering, frequency of cartridge replacement reducing and more convenient replacement. As rusult, it can greatly reduce the expenditure and manpower cost.
1. Prefiltration of RO Reverse Osmosis, Pretreatment of sea water desalination system.
2. Condensate water filtration, hot water recovery for power generation factory.
3. API, solvents and water filtration in BioPharm market.
4. Filtration of bottled water, high fructose, edible oil, soft drinks and milk.
5. Paints and coatings, petrochemical, refineries.
6. Microelectronics, film, fiber and resin.
|
Replacement
|
P/all
|
Park/er
|
3/M
|
|
Length
|
20", 40'', 60''
|
40''
|
20", 40'', 60''
|
|
Micron Rate
|
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
|
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
|
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
|
|
Filter Medium
|
Polypropylene, Cellulose, Melt Blown PP
|
Polypropylene, Cellulose, Melt Blown PP
|
Polypropylene, Cellulose, Melt Blown PP
|
|
Support
|
Polypropylene
|
Polypropylene
|
Polypropylene
|
|
End Cap
|
Glass Fiber Reinforced Polypropylene
|
Glass Fiber Reinforced Polypropylene
|
Glass Fiber Reinforced Polypropylene
|
|
Outer Diameter
|
6'', 152mm
|
6'', 152mm
|
6'', 152mm / 6.5'', 165mm
|
|
Gasket/O ring material
|
EPDM/NBR/Viton
|
EPDM/NBR/Viton
|
EPDM/NBR/Viton
|
|
Max. Operating Differential Pressure
|
PP: 3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
|
PP:3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
|
PP:3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
|
|
Suggestion Flow
|
20" 660LPM
40" 1300LPM
60" 1900LPM
|
40" 1300LPM
|
20" 660LPM
40" 1300LPM 60" 1900LPM |
