Quick Details
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (MIG):
-
220 V
-
Wire Feeding Speed:
-
3 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DuroWelder
-
Dimensions:
-
660*395*766
-
Use:
-
Welding
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Online support
-
Color:
-
Orange/Blue
-
Welding Wire Diameter:
-
0.8-1.6mm
-
Output Current:
-
50-630A
-
Weight:
-
80KG
-
Certification:
-
CCC
-
Voltage:
-
380V 50/60Hz
-
Power:
-
6.5KVA-32KVA
Quick Details
-
Wire Melting Type:
-
Globular Transfer
-
Max. Load Power Capacity:
-
31.9
-
Rated Duty Cycle @40°C (MIG):
-
60%
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (MIG):
-
220 V
-
Wire Feeding Speed:
-
3 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DuroWelder
-
Dimensions:
-
660*395*766
-
Use:
-
Welding
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Online support
-
Color:
-
Orange/Blue
-
Welding Wire Diameter:
-
0.8-1.6mm
-
Output Current:
-
50-630A
-
Weight:
-
80KG
-
Certification:
-
CCC
-
Voltage:
-
380V 50/60Hz
-
Power:
-
6.5KVA-32KVA

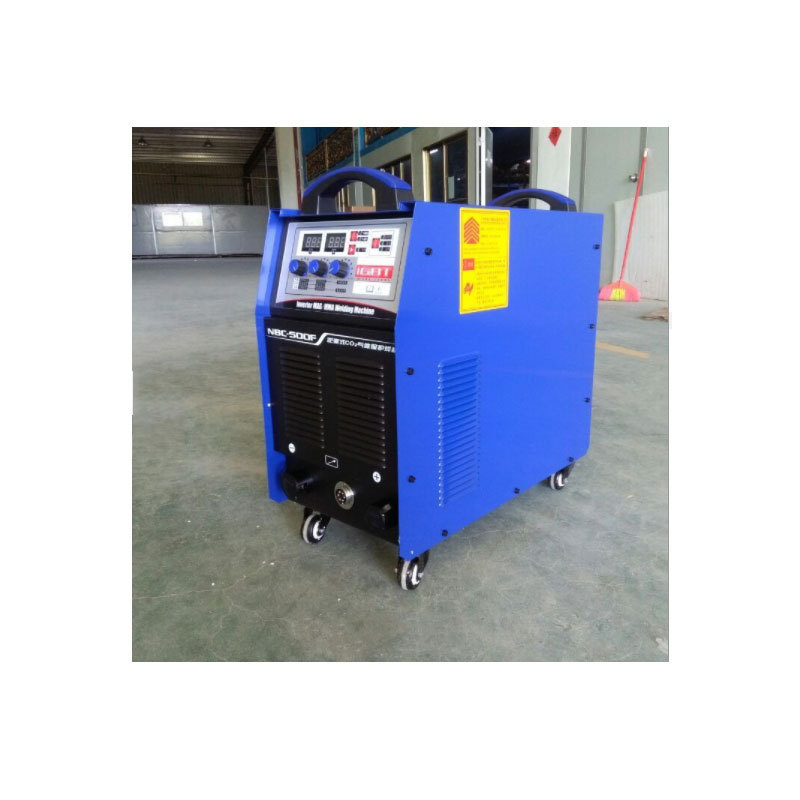

NBC Series Standard Type With Adjustable Tap Switch MIG MAG Welding Machine(Separate Wire Feeder)
| Main Features and Applications:Apply high frequency inverter technolog , feature optimized design, light effect and energy saving.With automatic arc length compensating function, stable electric arc, lessSplashing, electric arc has high penetration force.Deep bath, beautiful appearance.With excellent dynamic response.Continuously and persistently weld workpiece, high effciency with high current.Can use CO2, ar, or80%ar+20% shield gas to weld which meets many kinds of welding process demands.Automatic functions for over voltage and over current protections.Adjustable output current and voltage functions to satisfy different kinds of welding requirements.Closed loop feedback, constant voltage output.Widely used in electric power, steel structure and shipbuilding and other industries. |
Main Technical Parameter:
| Main Parameters | Units | Main Models | |||||
| NBC-200 | NBC-250 | NBC-315 | NBC-350 | NBC-500 | NBC-630 | ||
| Input Voltage | V/Hz | 380V 50/60Hz | |||||
| Rated Input Capacity | KVA | 6.5 | 9.3 | 13.5 | 18 | 31.9 | 45 |
| Open Circuit Voltage | V | 16-30 | 16-33 | 16-36 | 50 | 65 | 73 |
| Output Current | A | 50-200 | 50-250 | 60-315 | 60-350 | 60-500 | 80-630 |
| Output Voltage | V | 16-24.5 | 16.3-27.5 | 16.5-30 | 17-32.5 | 17-40 | 18-44 |
| Rated Duty Cycle | % | 60 | 60 | 60 | 60 | 60 | 60 |
|
Welding Wire
Diameter |
mm | 0.8-1.0 | 0.8-1.0 | 0.8-1.2 | 0.8-1.2 | 0.8-1.6 | 0.8-1.6 |
| Protection Grade | - | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 |
| Insulation Grade | - | F | F | F | F | F | F |
|
Power Source
Net Weight |
Kg | 103 | 108 | 130 | 130 | 190 | 230 |
|
Dimension
(L*W*H) |
mm | 663*395*766 | 663*395*766 | 663*395*766 | 680*410*753 | 710*436*815 | 660*530*980 |
