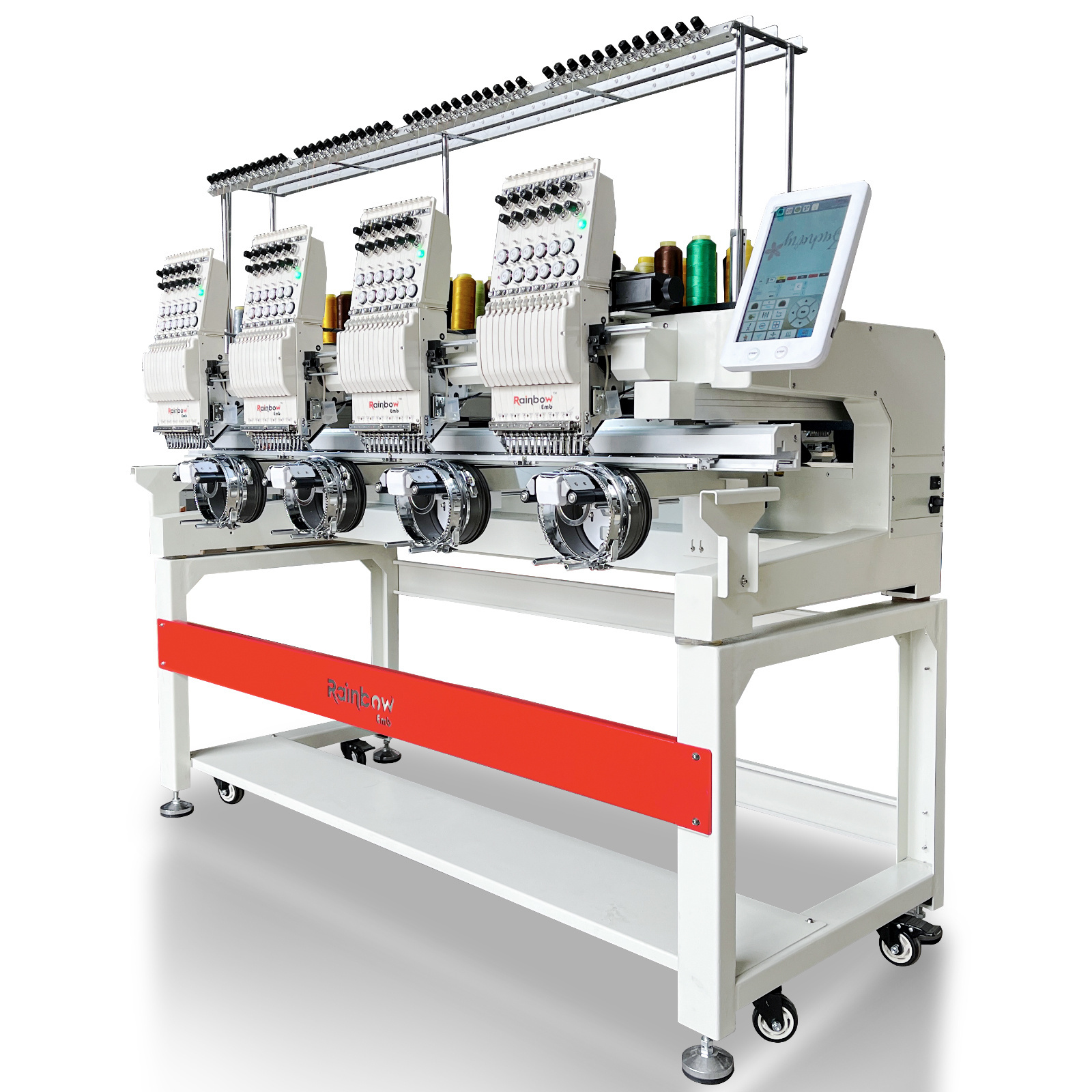

Rainbow embroidery machine RBE4040-D12 has unique design which patent protected. All machine frame and housing was made from galvanized steel which is sturdy and durable. Its structure will be still firm after many years using.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
RainbowInc
-
Overall Dimensions:
-
190*83*142cm
-
Power:
-
650w
-
Worktable Size:
-
400*1600mm
-
Embroidery Area:
-
400*1600mm
-
Weight (KG):
-
530 KG
-
Name:
-
Used Feiya Tajima Barudan 4 Head Embroidery Machine For Sale
-
Language:
-
13 Languages
-
Memory Capacity:
-
20 Million Needles
-
Machine Type:
-
Computer Cap Embroidery Machine
-
Motor:
-
Servo Motos
-
Speed:
-
1000-1200 Rpm
-
Keywords:
-
Embroidry Machine
-
Needle:
-
9/12/15 Needles
-
Brand:
-
RainbowInc
-
Head:
-
1/2/3/4/6/8/10/12/20 Head
Quick Details
-
Maximum Speed:
-
1200 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
400mm
-
Place of Origin:
-
China
-
Brand Name:
-
RainbowInc
-
Overall Dimensions:
-
190*83*142cm
-
Power:
-
650w
-
Worktable Size:
-
400*1600mm
-
Embroidery Area:
-
400*1600mm
-
Weight (KG):
-
530 KG
-
Name:
-
Used Feiya Tajima Barudan 4 Head Embroidery Machine For Sale
-
Language:
-
13 Languages
-
Memory Capacity:
-
20 Million Needles
-
Machine Type:
-
Computer Cap Embroidery Machine
-
Motor:
-
Servo Motos
-
Speed:
-
1000-1200 Rpm
-
Keywords:
-
Embroidry Machine
-
Needle:
-
9/12/15 Needles
-
Brand:
-
RainbowInc
-
Head:
-
1/2/3/4/6/8/10/12/20 Head
Products Description
|
Model:
|
RBE4040-D12
|
Needles:
|
9/12/15
|
|
Control system:
|
Dahao/Raynen/Topwisdom
|
Cap frame unit:
|
270 degree rotate
|
|
Max embroidery size:
|
400*400mm each head
|
Power:
|
650W
|
|
Maximum Speed:
|
1200 RPM
|
Gross weigth:
|
600kg
|
|
Memory Capacity:
|
20 million stitches
|
Package dimension:
|
230×113×97cm
|
▲
Machine frame and housing
▲
Servo motor, belt and bearing
Rainbow embroidery machine comes with imported servo motor, belt and bearing which make machine have accurate movement on X and Y axis. To achieve perfect embroidery works.
▲
Guide rails
Rainbow embroidery machine has
suspension type design for Y axis. Make more space on bottom of machine, big embroidery items can be done easily and barrier free.
▲
Machine head
9/12/15 needles machine heads are available. Two knobs for one needle tension adjustment. Threads tension can be adjusted easily.
Lubricating oil tank was installed nearby machine head. Easy for lubricating and maintenance
▲
Anti shaking mat
Rainbow embroidery machine has TPU soft anti-shaking mat between machine and machine stand. Screw crossed the mat and fixed machine and stand. It make machine work more stable and small noise.
Input voltage can be range from AC 100 to 240V, we can customize different plug to fit
electrical standard in your country.
▲
Laser positioning and lamp
We installed laser device on Rainbow embroidery machine head for easy finding starting point and easy positioning. And the machine comes with LED lamp for night working.
▲
Color changing motor
Rainbow embroidery machine comes with high
accuracy
color changing motor and gear. It has prefect precision for changing needles after each color embroidery finishing.
▲
Concave type machine head
Concave type machine head leave more space for
brim of cap. You can embroidery the caps which have long brim easily.
We focused on all details of our products
To achieve a
perfect
embroidery machine
After-sales service and technical support
Rainbow engineers team provide detailed support videos and user manual. Make customers master the machine quickly. Lifelong technical support if customers have any question of machine installation or operation.
Samples
Product packaging
▲
Each of Rainbow embroidery machine should be inspected well before delivery, Machine was fixed on bottom of case, all parts were packaged by soft foam.
▲
Rainbow embroidery machine was packaged in exported standard
non-fumigation wooden case. RBE4040-D12 package dimension
230×113×97cm
, gross weight 600 kg.
Rainbow RBE2235-A12 embroidery machine:
22*35cm max working size,
9/12 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
Rainbow RBE4050-B12 embroidery machine:
40*50cm max working size for each head.
9/12/15 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
9/12/15 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
