Ventilators Fan Air Curtain for glass doors with Sensor Automatic Series Cross Flow Fan IP44 Made In Thailand Door Height 3 M

Ventilators Fan Air Curtain for glass doors with Sensor Automatic Series Cross Flow Fan IP44 Made In Thailand Door Height 3 M

FOB Reference Price: Get Latest Price

≥20 Cartons

US $109

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Free spare parts

Place of Origin:: Samut Songkhram, Thailand

Brand Name:: X-PER Air-Curtain

Model Number:: 6CK09A, 6CK12A, 6CK18A, 6CK21A, 6CK24A

Application:: Air Curtains

Motor type:: AC Motor

Product name:: Crossflow Fan

Material:: Aluminum Alloy

Usage:: Split Air Conditioning

Quick Details

Applicable Industries:: Hotels, Home Use, Retail, Food & Beverage Shops

Electric Current Type:: AC

Mounting:: Wall Fan

After-sales Service Provided:: Free spare parts

Place of Origin:: Samut Songkhram, Thailand

Brand Name:: X-PER Air-Curtain

Model Number:: 6CK09A, 6CK12A, 6CK18A, 6CK21A, 6CK24A

Application:: Air Curtains

Motor type:: AC Motor

Product name:: Crossflow Fan

Material:: Aluminum Alloy

Usage:: Split Air Conditioning

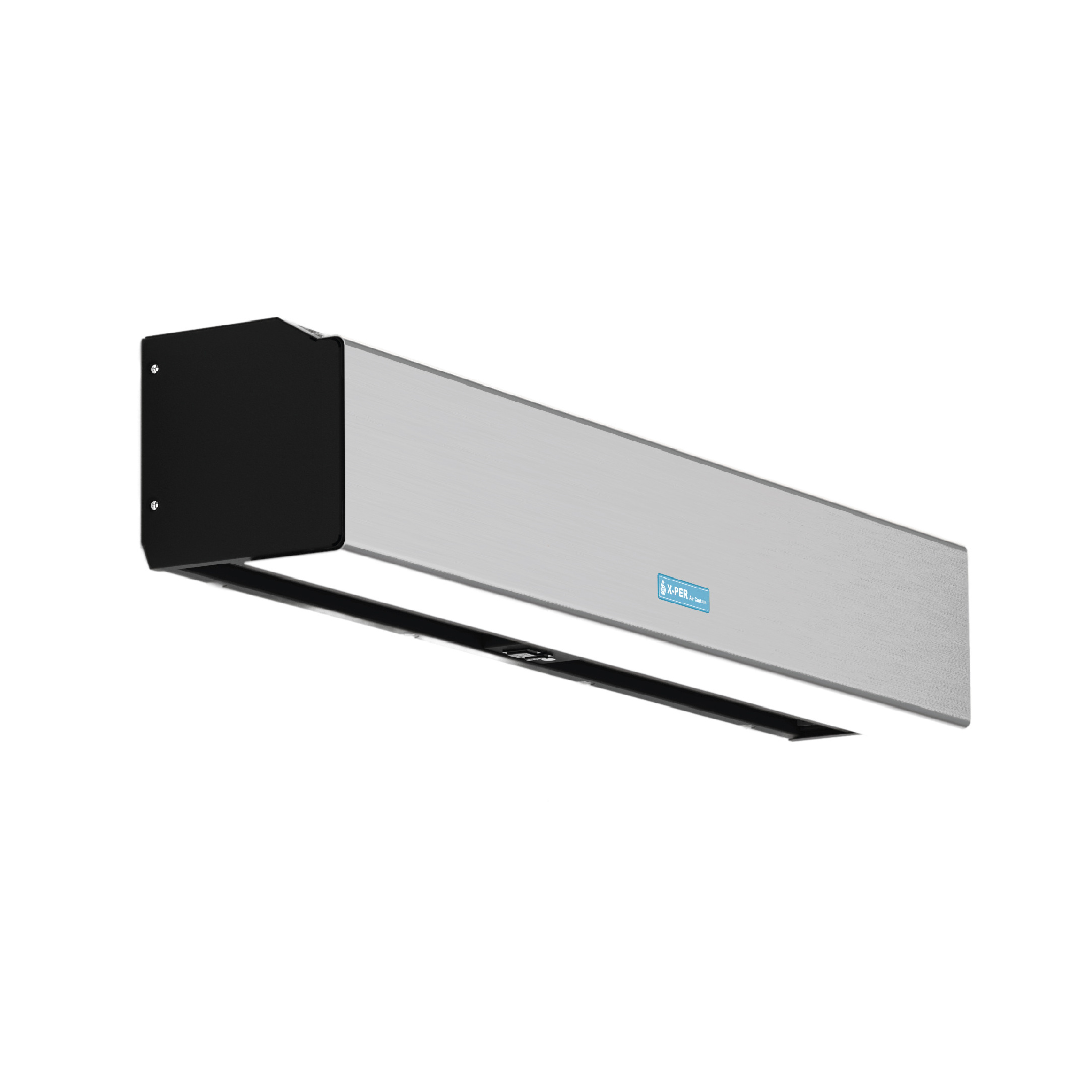

Product Overview

6CKA Series

The internal structure of 6CKA Series of commercial air curtain is made from galvanized steed with powder coating finish. Its external cover is made from Aluminum with brushed finish. The impellers are directly driven. The motors used are of totally enclosed type with self-lubricating ball bearings. The motor has a protection rating of IP44. While the 6CKA series are equipped with manual control. With fully automated microcontroller , so the air curtain works only when the door open and closes when the door closes.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

MANUAL/AUTOMATIC MODES

AIR CURTAIN UNIT IPX4

TOTALLY ENCLOSEED MOTOR IP44

DIRECT DRIVE

EG STEEL CONSTRUCTION

BRUSHED ALUMINUM COVER

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

MODEL	LENGTH(mm)	AIRFLOW SPEED(m/s)	AIRFLOW VOLUME(CFM)	VOLTAGE/FREQUENCY
6CK09A	900	12	1209	220-240V/ 50/60Hz / 1Ph
6CK12A	1200				1674
6CK18A	1800				2418
6CK21A	2100				2883
6CK24A	2400				3347
