Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
PLC
-
Place of Origin:
-
China
-
Brand Name:
-
Aohua
-
Weight (KG):
-
30 KG
-
Keywords:
-
UV fiber laser welding machine
-
Max. power:
-
3W~10W
-
Laser wavelength:
-
355±1nm
-
Beam quality:
-
㎡<1.2
-
Cooling style:
-
water cooling
-
Min tuning Q laser pulse width:
-
30ns
-
Power consumption:
-
4kw
-
Engraving depth:
-
≤0.5mm
-
Engraving linear speed:
-
12000mm/s
-
Min. line width:
-
0.01mm
-
Marketing Type:
-
easy to operate
Quick Details
-
Working Accuracy:
-
±0.003mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
UV
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
PLC
-
Place of Origin:
-
China
-
Brand Name:
-
Aohua
-
Weight (KG):
-
30 KG
-
Keywords:
-
UV fiber laser welding machine
-
Max. power:
-
3W~10W
-
Laser wavelength:
-
355±1nm
-
Beam quality:
-
㎡<1.2
-
Cooling style:
-
water cooling
-
Min tuning Q laser pulse width:
-
30ns
-
Power consumption:
-
4kw
-
Engraving depth:
-
≤0.5mm
-
Engraving linear speed:
-
12000mm/s
-
Min. line width:
-
0.01mm
-
Marketing Type:
-
easy to operate
Application
Th
e fi
ber laser marking machine can be combined with other assembly line equipment to mark on the line. It is mainly used to mar
k
hardware tools,
kitchen knives, engineering plastics,
electroplating materials, coating materials, plastics, rubber, epoxy resin,
ceramics, computer keyboards, integrated circuits, bottles, glasses, food and medicines, medical equipment, watch glasses, gifts, precious metal jewelry, and leather.
Main Features

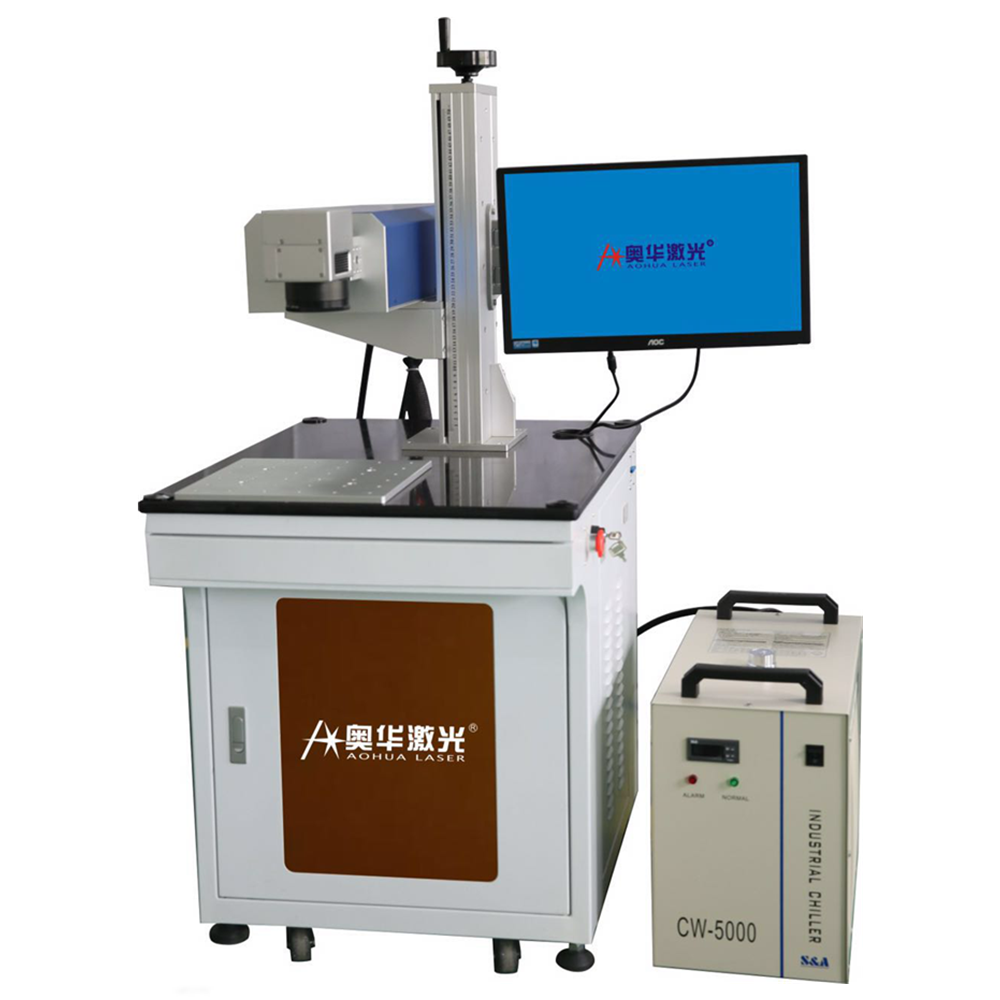

● The UV laser marking machine features a high quality laser and small light spot that can carry out repeat marking with high precision, even in special materials.
● With the wavelength of 355nm, the processing lowers its heat affection in order to ensure the smooth and beautiful appearance of the materials, even after laser marking.
● The UV laser marking machine is especially suitable for marking on materials that have strong reactions to thermal radiation.
● In addition, the machine can be combined with assembly line equipment for automatic loading and unloading of materials to mark, including both metal and non-metal materials.
Model
|
AHL-UV3
|
AHL-UV5
|
AHL-UV8
|
AHL-UV10
|
Max. power
|
3W
|
5W
|
8W
|
10W
|
Laser wavelength
|
355±1nm
|
355±1nm
|
355±1nm
|
355±1nm
|
Beam quality
|
㎡<1.2
|
㎡<1.2
|
㎡<1.2
|
㎡<1.2
|
Laser repetition frequency
|
10KHZ ~ 50KHZ
|
10KHZ ~ 50KHZ
|
10KHZ ~ 50KHZ
|
10KHZ ~ 50KHZ
|
Min tuning Q laser pulse width
|
30ns
|
30ns
|
30ns
|
30ns
|
Beam divergence angle
|
<0.3mrad
|
<0.3mrad
|
<0.3mrad
|
<0.3mrad
|
Standard marking range
|
110*110mm
|
110*110mm
|
110*110mm
|
110*110mm
|
Optional engraving range
|
50*50mm/150* 150mm
|
50*50mm/150* 150mm
|
50*50mm/150* 150mm
|
50*50mm/150* 150mm
|
Engraving depth
|
≤0.5mm
|
≤0.5mm
|
≤0.5mm
|
≤0.5mm
|
Engraving linear speed
|
12000mm/s
|
12000mm/s
|
12000mm/s
|
12000mm/s
|
Min. line width
|
0.01mm
|
0.01mm
|
0.01mm
|
0.01mm
|
Repetition accuracy
|
±0.003mm
|
±0.003mm
|
±0.003mm
|
±0.003mm
|
Marking format
|
Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software)
|
Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software)
|
Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software)
|
Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software)
|
Operating system
|
WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts
|
WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts
|
WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts
|
WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts
|
Power consumption
|
≤3KW
|
≤3KW
|
≤3KW
|
≤3KW
|
Electrical connection
|
220V±22V/50HZ/15A
|
220V±22V/50HZ/15A
|
220V±22V/50HZ/15A
|
220V±22V/50HZ/15A
|
Laser unit
|
UV
|
UV
|
UV
|
UV
|
Working temperature
|
15~30ºC (no dust and required air-conditioner)
|
15~30ºC (no dust and required air-conditioner)
|
15~30ºC (no dust and required air-conditioner)
|
15~30ºC (no dust and required air-conditioner)
|
Relative humidity
|
<80%
|
<80%
|
<80%
|
<80%
|
Cooling style
|
water cooling
|
water cooling
|
water cooling
|
water cooling
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Aohua Laser Technology Co., Ltd
was founded in 1991 within the Longgang District of Shenzhen Province, China. The enterprise is a specialized manufacturer of laser equipment with a focus on research and development, production, and service. Our main product line includes equipment such as automatic laser welding machines, metal mold laser welders, laser spot welders, fiber laser marking machines, UV laser marking machines, CO2 laser marking machines, semiconductor laser side marking machines, YAG, and CO2 laser cutting machines. Our products are widely applied across many industries for the production of items such as integrated circuits, jewelry, precision instruments, mobile communications products, cloths, auto parts and much more.
With nearly 3 decades of production experience, Aohua has developed high-level expertise in the design and production of laser equipment. We have assembled a focused group of experts, each with several years of high level technical experience. These valuable engineers along with world famous laser components and production equipment, enable a production process resulting in outstanding laser products that have earned a fantastic reputation. Five product lines including welding machines, marking machines, cutting machines, stripping machines, and cleaning machines cover a broad range of applications and include many national patents and innovative functions. Our laser machinery is exported to Japan, Europe, America, Vietnam, and many other countries around the world. Contact our agents in Japan, Korea, Brazil, India, and Mexico to learn more.
Q : Are you a factory or a trading company ?
A : We are factory manufacturer with 26-year long history in laser industry.
Q :What are the primary products of your company?
A : Laser welding machine, laser cutting machine, laser marking machine and laser engraving machine.
Q : How to do control the quality when you produce laser equipment?
A : We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser machines. In addition, all components are strictly inspected in accordance with international standards before they are put into production.
Q : How can I know your machine is designed for my product?
A : You can send us samples of your product and we test it on machine.
Q : How long is the delivery time?
A : The laser machines will be delivered to you within 1-2 weeks after the order is confirmed.
Q : Do you have a CE/ISO certificate?
A : Yes.
Q : If we do not know to use the machine, can you teach us?
A : Yes, we will, if you come to China, we will offer you free training until you can use machine freely. During installation, we will have our professional engineer to your country to train your stuff to use it.
Q : When the machine can't work well, what should I do?
A : 1. The engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have one-year warranty. If there is any problem, we can offer replacement parts for free.
3. Operation CD and manual will be offered along with machine,ensuring you can operate the machine easily.
