1 Channel 12V 315MHZ 433MHZ Wireless Learning Code Remote Control Switch

1 Channel 12V 315MHZ 433MHZ Wireless Learning Code Remote Control Switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: 35*32*17mm

Operating Voltage:: DC12V

Operating current:: ≤6mA

Operating temperature:: -20℃ - +60℃

Receive frequency:: 315MHZ 433MHZ

Receiving sensitivity:: -105Db

Function:: Wireless remote switch

Lead time:: In stock

Warranty:: 90 Days

Quick Details

Use:: Universal

Place of Origin:: Guangdong, China

Type:: 1 Channel 315MHZ 433MHZ Wireless Learning Code Remote Control Switch

Size:: 35*32*17mm

Operating Voltage:: DC12V

Operating current:: ≤6mA

Operating temperature:: -20℃ - +60℃

Receive frequency:: 315MHZ 433MHZ

Receiving sensitivity:: -105Db

Function:: Wireless remote switch

Lead time:: In stock

Warranty:: 90 Days

Product Description

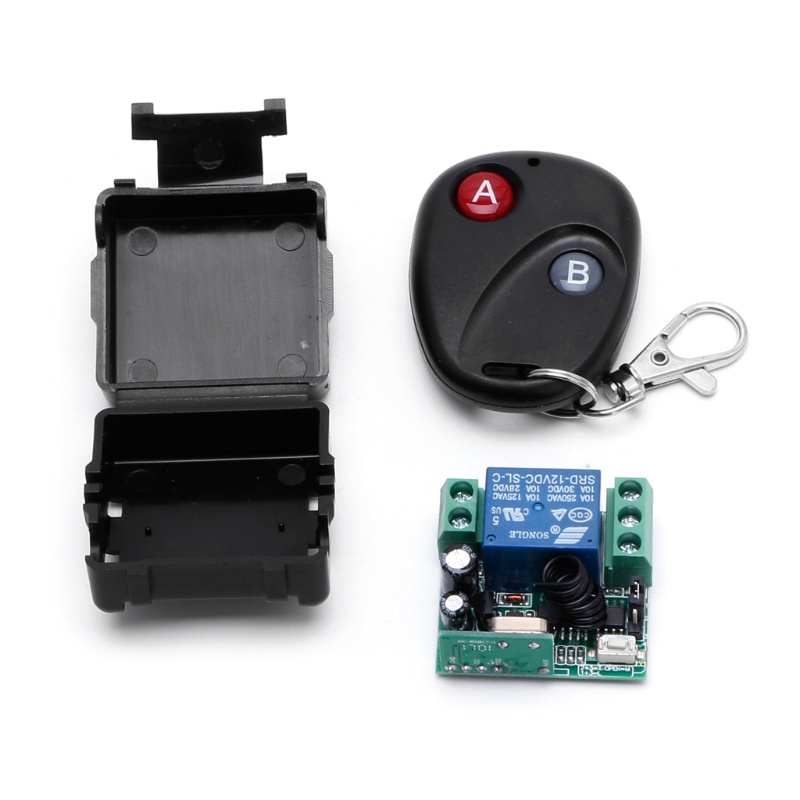

1 Channel 12V 315MHZ 433MHZ Wireless Learning Code Remote Control Switch

Description:

The wireless receiving controller, with high security, stable performance, low power consumption, and easy to use, without using the traditional dial switch or jumper encoding, only the wireless signals emitted by the remote controller to the receiving controller receives and stores, can be matched. The controller can learn a number of different coded remote controls (such as 2262, 1527, etc.). With a work indicator light, the receiver is on the turn on state indicator light, and it can clearly display the working state of the receiver.

Output mode

A, signal self locking - plug in the short circuit to 2-3
B, signal interlocking - plug in short circuit to 1-2
C, signal point movement - short circuiting vacancy, not short connection

The meaning of self locking / interlocking / point movement:

Interlocking: the hand presses one of the keys corresponding to the remote control, the corresponding relay is connected, and then another key of the remote control; the relay is disconnected.

Non lock, point movement: the hand presses the remote control key, the corresponding relay is connected, the remote control key is loosened; the corresponding relay is disconnected.

Self lock: according to a remote control key, relay is connected, and then a remote control key, the relay is broken.

Learning methods

According to the learning key, the learning indicator is extinguished to enter the learning state, and the signal is fired by the remote control. The light is extinguished for 1 second, indicating that the learning is successful.

Note: * the controller can learn a number of different encoding of the remote control, if beyond the first automatic clearance.

Clear code method: hold down the study key, about 8S, the light from bright to extinguish, at this time the remote control receiver switch no response, indicating the success of the code.

Technical parameters

1, working voltage: DC12V (or 24V need to be customized)
2, working current: less than 6mA
3, working temperature: -20 C - +60 C
4, receiving frequency: 315MHz 433MHz and so on
5. Receiving sensitivity: -105Db
6. Output voltage:AC or DC
7, output current: less than 10A
8. Size: 35*32*17mm
