Products Description
Product Overview

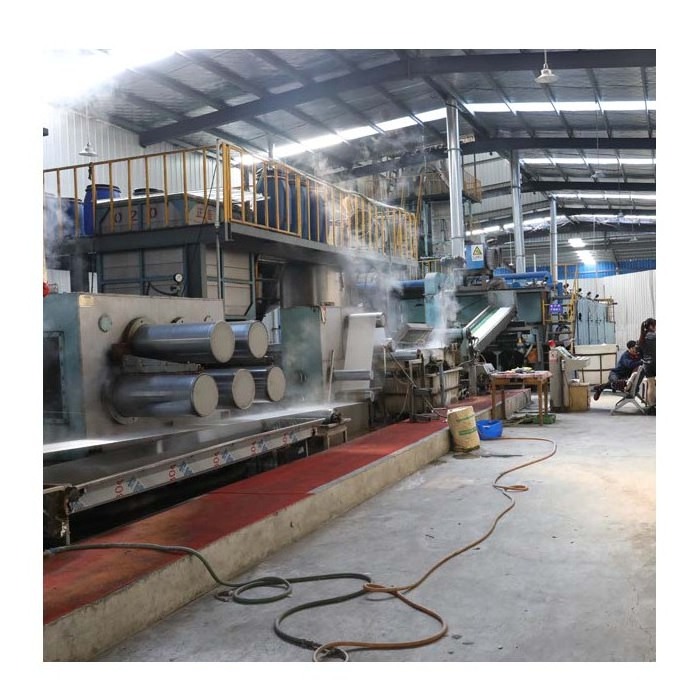

Staple fiber production line
Process flow of the production line.
Main material: PET flakes, popcorn material, pumps and other PET waste materials.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
Right elevation
Left elevation
Front elevation
Spinning
Suitable for polyester staple fibers
Cotton type 0.8-2.1 dtex, mid-length type2.2-3.2dtex;
Wool type3.3-6dtex, hollow 3.3-22.2dtex;
Nylon 6, composite fibers output: 15T/d-100T/d.
Fiber
Suitable for polyester (pain, hollow three-dimensional, high strength and low elongation fibers), nylon6, composite fibers.
PRODUCT SPECIFICATIONS
|
Extruder Technology Parameters
|
Screw Dia
|
Rotation Speed
|
Extrusion
|
Extrusion
|
Driving Power
|
Heating Power
|
|
Model
|
(mm)
|
r/min
|
PET kg/h
|
PP kg/h
|
KW
|
KW
|
|
LM160
|
θ160
|
20-60
|
900
|
405
|
132
|
93
|
|
LM170
|
θ170
|
20-50
|
1000
|
450
|
160
|
100
|
|
LM180
|
θ180
|
20-50
|
1150
|
520
|
185
|
110
|
|
LM200
|
θ200
|
20-50
|
1500
|
675
|
220
|
150
|
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
