Quick Details
-
Brand Name:
-
CLW brand
-
color:
-
blue
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
16000
-
Brand Name:
-
CLW brand
-
color:
-
blue
| Main Technology Parameter | |

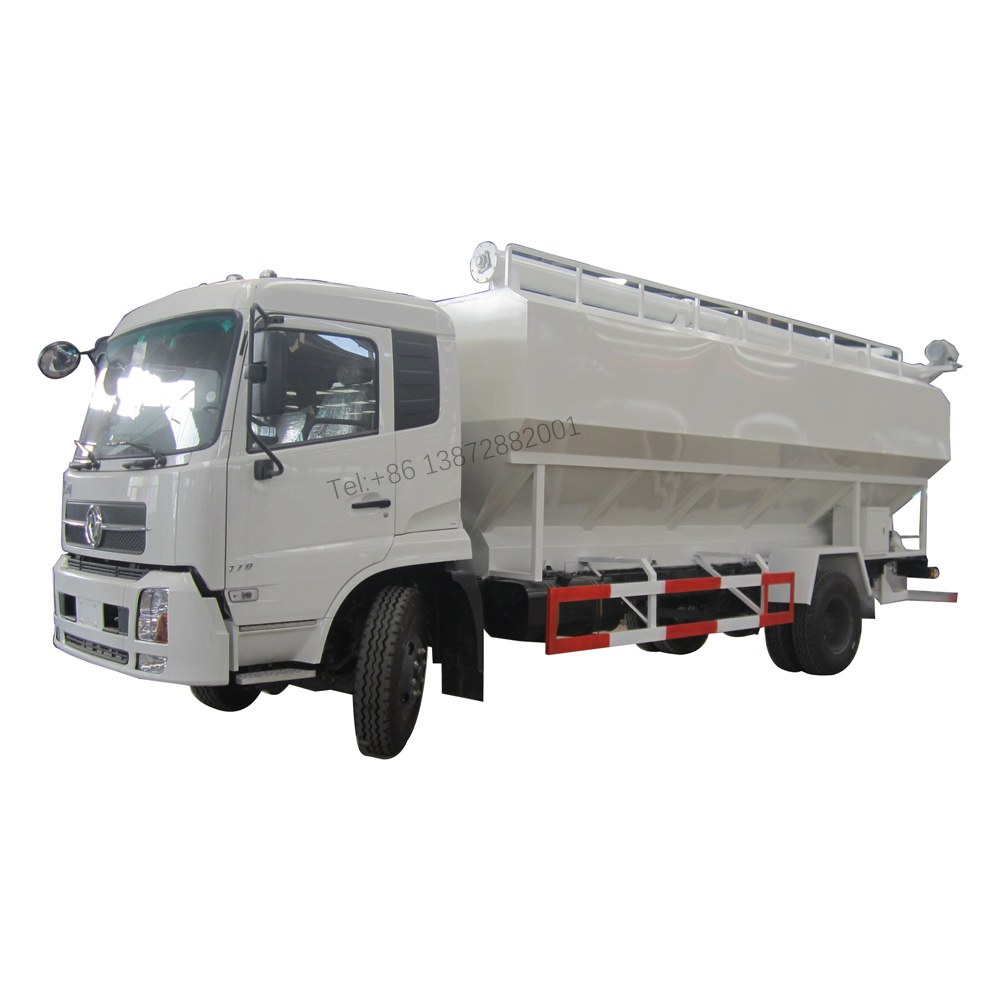

| Model Name | Dongfeng bulk feed truck 20m3(10-12tons) |
| Driving Type | 4×2,left hand drive |
| Color | optional |
| Weights | |
| Max.loading (kg) | 15000 |
| Curb weight(kg) | 8905 |
| Dimensions | |
| Wheelbase(mm) | 4500 OR 4700 |
| Overall Dimension(mm) | 9000×2500x3800 |
| Tanker Valume | 20m3 |
| Max speed(km/h) | 85 |
| Engine | |
| Engine model | B190 33(190HP) OR Cummins 170hp |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 5.9L |
| Max. output (kw) | 140kw |
| Drive Line | |
| Transmission | 6 speeds ,6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Air brake |
| Cab | |
| Air container | have |
| Standard configuration | Sound,dongfeng standard |
| Axle | |
| Front axle | 4.5 tons |
| Rear axle | 9 tons |
| Tire specification | |
| Tire specification | 9.00R20 standard tire,6 tires+1 spare tire |
| bulk feed specification | |
| tank | 20m3 |
| configuration | 3 compartments, electric auger unloading, or hydraulic auger unloading, discharge pipe inclined 70 degrees, vertical discharge 8.5m height, vehicle unloading time 20 minutes |
| Other | |
| Electric system | 24V |
Naked, waxing on roro or bulk ship or by 20GP,40GP,40HQ,40FR and so on
1. Factory Supply :
one of the biggest special purpose truck manufacturers in china,
more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification
Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
passed the ISO9001-2008 and the 3C (China Compulsory Certification),
our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery : 5-10 days after payment(most common products), safe and quick delivery.
