Quick Details
-
Model Number:
-
KCD1-105(color/with led/without led)
-
Max. Current:
-
10A
-
Mechanical Life:
-
100,000 cycles
-
model:
-
KCD1-105
-
product name:
-

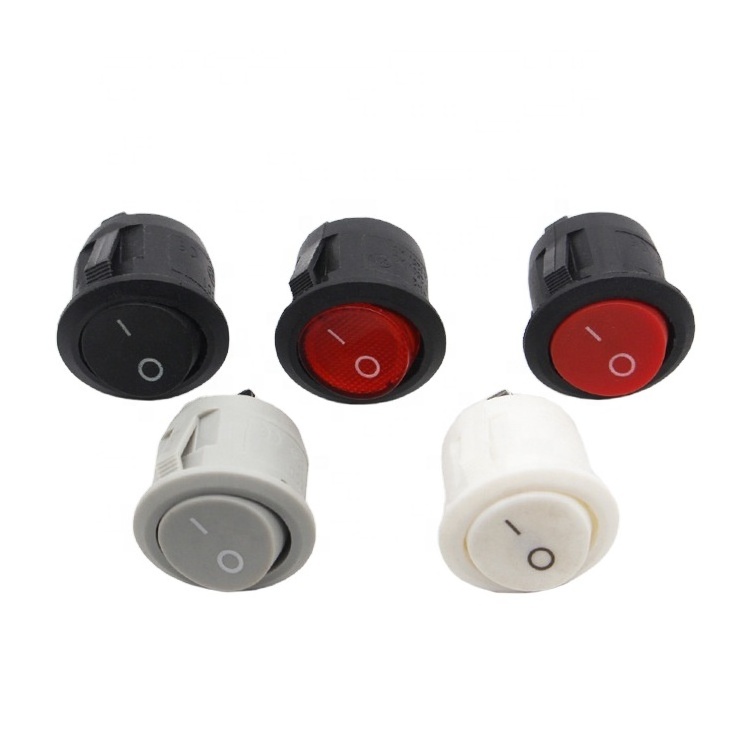

Rocker Switch
-
Rated current and voltage:
-
6(4)A 250VAC,10A 125VAC
-
Insulation resistance:
-
≥100MΩ
-
Contact resistance:
-
≤50MΩ
-
Dielectric Strength (Interpole):
-
≥1500VAC/min
-
pole pair housing:
-
≥3000VAC/min
-
Electrical life:
-
≥10*4 times
-
ambient temperature:
-
25T85
-
PIN number:
-
2pin
-
Certification:
-
other
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHOUHAN
-
Model Number:
-
KCD1-105(color/with led/without led)
-
Max. Current:
-
10A
-
Mechanical Life:
-
100,000 cycles
-
model:
-
KCD1-105
-
product name:
-
Rocker Switch
-
Rated current and voltage:
-
6(4)A 250VAC,10A 125VAC
-
Insulation resistance:
-
≥100MΩ
-
Contact resistance:
-
≤50MΩ
-
Dielectric Strength (Interpole):
-
≥1500VAC/min
-
pole pair housing:
-
≥3000VAC/min
-
Electrical life:
-
≥10*4 times
-
ambient temperature:
-
25T85
-
PIN number:
-
2pin
-
Certification:
-
other
