Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB25C
-
Diameter:
-
25mm
-
Switch Combination:
-
2NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/15A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-

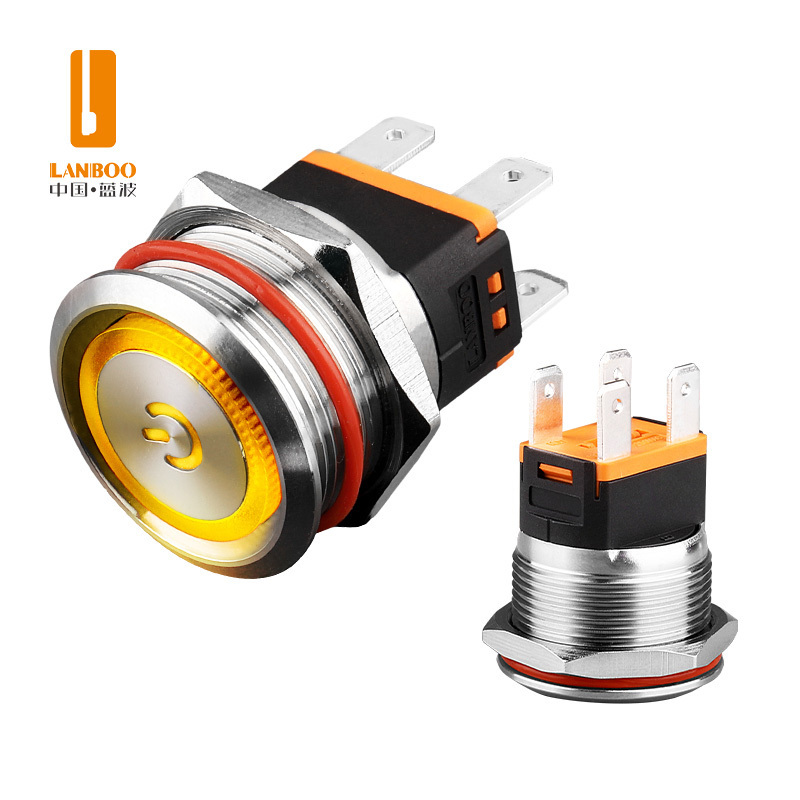

LB22/25C push button switch 15a 125vac spdt with 3v led
Quick Details
-
Protection Level:
-
IP65/IK10
-
Max. Current:
-
Ith:20A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB25C
-
Diameter:
-
25mm
-
Switch Combination:
-
2NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/15A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
LB22/25C push button switch 15a 125vac spdt with 3v led
|
||
|
|
|
| Model Description | |
| Model NO. | LB22C 25C metal push button switch |
| Mounting diameter | 22/25mm |
| Head shape | Plat/High Head |
| Switch Combination | 2NO |
| Operation type | Momentary/Latching |
| Illuminating type | Ring LED/Ring+Symbol LED/Dot LED |
| Illuminating color | red,green,blue,yellow,white |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless Steel/chromium plated brass/Aluminum oxide |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving double contact | Operation Schedule | Connected:1.3±0.2mm,Total:3.5±0.1mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 9±0.8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤9mm |
| Dielectric Strength | 1000VAC min | Nut torque | 0.8~1.2N.m |
| Ambient Temperature | -40℃~+80℃ |
Outshell
Press Key
|
304 Stainless Steel/6063 Aluminum oxide/H57/59 Chromium plated brass
304/316 Stainless Steel/6063 A luminum oxide |
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life |
Resistant load :
|
Nut
Base Seat/ Bottom Seat |
H57/59 nickel plated brass
PA66(RoHS),V0 |
| Mechanical Life |
Latching: 300,000 times,
|
Pins Contact |
H65 Silver Plated AgSnO2(RoHS) |
| Waterproof | IP67 | Spring | Improved steel wire |
| Switch Rated Load | ||||||
|
Project |
Parameter | |||||
| Reated Insulation Voltage | AC250V | |||||
| Fusing Current | 20A | |||||
| Rated Voltage | DC12V | DC24V | DC110V | AC110V | AC220V | |
| Rated Current | Nonreactive Load | 15A | 15A | - | 15A | 15A |
| Inductive Load | - | - | 4A | 4A | 4A | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,White |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 50,000hours |
Exquisite packing
Optional for plastic box or foam box
