Quick Details
-
Shape:
-
D
-
Place of Origin:
-
Tianjin
-
Brand Name:
-
Founder
-
Model Number:
-
G209
-
Product name:
-
304/316 Stainless Steel G209 US Type Shackle Bow Shackle
-
Size:
-
3/16-2in
-
Technology:
-
Forging
-
Keyword:
-
Shackle
-
Surface:
-
High Polished
-
Packing:
-
Carton
-
Color:
-
Silver
-
Usage:
-
Wire Rope
-
Materail:
-
Stainless Steel 304/316/316L
-
Certificates:
-
ISO9001
Quick Details
-
Measurement system:
-
Imperial (Inch)
-
Application:
-
Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry
-
Material:
-
Stainless steel
-
Shape:
-
D
-
Place of Origin:
-
Tianjin
-
Brand Name:
-
Founder
-
Model Number:
-
G209
-
Product name:
-
304/316 Stainless Steel G209 US Type Shackle Bow Shackle
-
Size:
-
3/16-2in
-
Technology:
-
Forging
-
Keyword:
-
Shackle
-
Surface:
-
High Polished
-
Packing:
-
Carton
-
Color:
-
Silver
-
Usage:
-
Wire Rope
-
Materail:
-
Stainless Steel 304/316/316L
-
Certificates:
-
ISO9001
Products Description
Shackles are used every day in a variety of rigging and load securement applications. It’s used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings.
Shackles are a versatile tool for connecting lifting slings, wire rope, chain, and rope - these links are essential for a number of rigging, lifting, pulling, and hoisting applications. Because they come in a wide variety of styles and types, choosing the right one for the job can be confusing.We've outlined some of the basics below. If you have any questions, contact one of our product specialists for more information.
Tianjin Founder stainless steel shackles are available in a wide variety of styles and sizes, with many designed for specialized applications.Because they are forged or cast in Type 316 stainless steel, they are excellent for use in marine or other wetenvironments.
Stainless steel anchor shackles / bow shackles
Stainless steel anchor shackle and bow shackle terms are often used interchangeably, with both referring to a rounded,O-shape.However, stainless bow shackles are generally larger, with a more definite “bow” shape than a stainless anchor shackle.The rounded design of stainless anchor shackles and bow shackles allow them to take loads from many directions without creating a significant side load. The larger loop shape of an ss anchor shackles and bow shackles does reduce its overall strength, but it is also able to handle a larger strap.
D shackles / chain shackles
Stainless steel chain shackles are also known as D shackles due to their “D” shape. A d-shackle is narrower than an ss anchor
shackle or bow shackle and generally have a threaded pin or pin close. The smaller loop is designed to take high loads primarily
in line. Side and racking loads may twist or bend a D or chain shackle.
Snap shackles
As a variation on the stainless steel d shackle, a snap ss shackle is designed with a spring-activated mechanism so it can be used
quickly and with one hand. These are excellent for jobs where speed is important, or when an item needs to be hooked and unhooked
often. A snap stainless shackle is not recommended for heavy-duty loads.
Twisted Shackle
Twisted shackles offer a hook up from the same direction the pin is facing, making them ideal for certain limited hook up
instances - you can attach from the side, rather than the front. They are forged to create a 90 degree twist, which means the
attachment points can be perpendicular without torquing.
Wide Body Shackle
This version has an increased bow radius. It creates a wider sling-bearing surface and load distribution area, which can
lengthenthe working lifespan of your sling and eliminate the need for a thimble.
Tianjin Founder stainless steel shackles are available in a wide variety of styles and sizes, with many designed for specialized applications.Because they are forged or cast in Type 316 stainless steel, they are excellent for use in marine or other wetenvironments.
Stainless steel anchor shackles / bow shackles
Stainless steel anchor shackle and bow shackle terms are often used interchangeably, with both referring to a rounded,O-shape.However, stainless bow shackles are generally larger, with a more definite “bow” shape than a stainless anchor shackle.The rounded design of stainless anchor shackles and bow shackles allow them to take loads from many directions without creating a significant side load. The larger loop shape of an ss anchor shackles and bow shackles does reduce its overall strength, but it is also able to handle a larger strap.
D shackles / chain shackles
Stainless steel chain shackles are also known as D shackles due to their “D” shape. A d-shackle is narrower than an ss anchor
shackle or bow shackle and generally have a threaded pin or pin close. The smaller loop is designed to take high loads primarily
in line. Side and racking loads may twist or bend a D or chain shackle.
Snap shackles
As a variation on the stainless steel d shackle, a snap ss shackle is designed with a spring-activated mechanism so it can be used
quickly and with one hand. These are excellent for jobs where speed is important, or when an item needs to be hooked and unhooked
often. A snap stainless shackle is not recommended for heavy-duty loads.
Twisted Shackle
Twisted shackles offer a hook up from the same direction the pin is facing, making them ideal for certain limited hook up
instances - you can attach from the side, rather than the front. They are forged to create a 90 degree twist, which means the
attachment points can be perpendicular without torquing.
Wide Body Shackle
This version has an increased bow radius. It creates a wider sling-bearing surface and load distribution area, which can
lengthenthe working lifespan of your sling and eliminate the need for a thimble.
|
Product Name
|
Heavy Duty 304/316 Stainless Steel G209 US Type Shackle Bow Shackle For Lifting Rigging
|
|
|
|
|||
|
Diameter
|
Complete size
|
|
|
|
|||
|
Material
|
SS304 SS304L SS316 SS316L
|
|
|
|
|||
|
Finish Type
|
Stainless Steel
|
|
|
|
|||
|
Standard
|
US EU JIS DIN
|
|
|
|
|||
|
Packing
|
Carton on the Pallet
|
|
|
|
|||

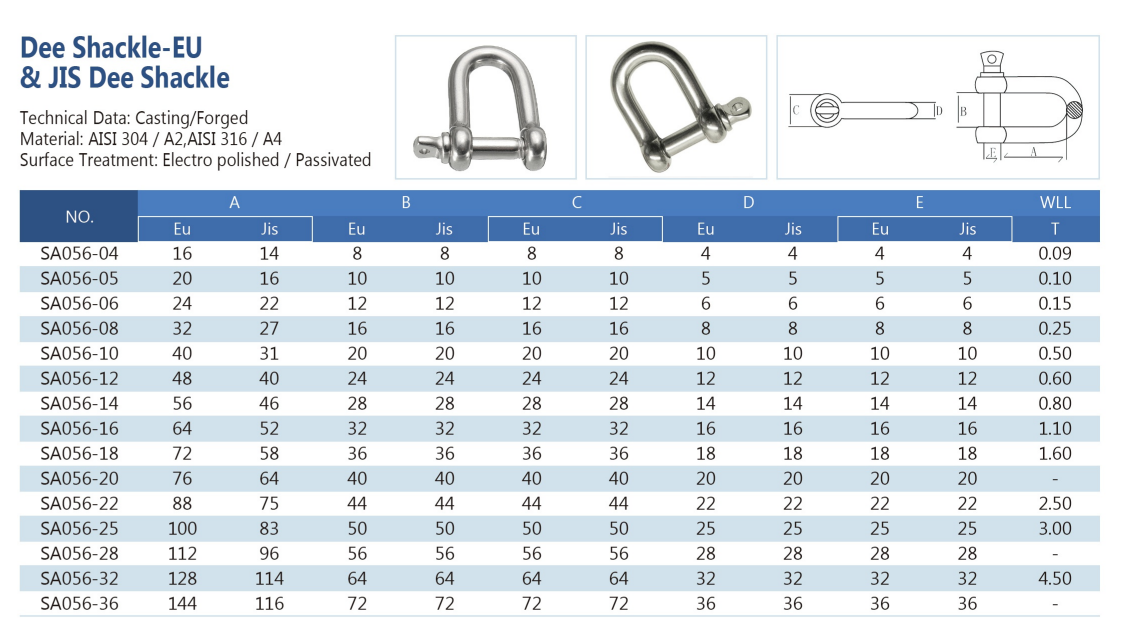

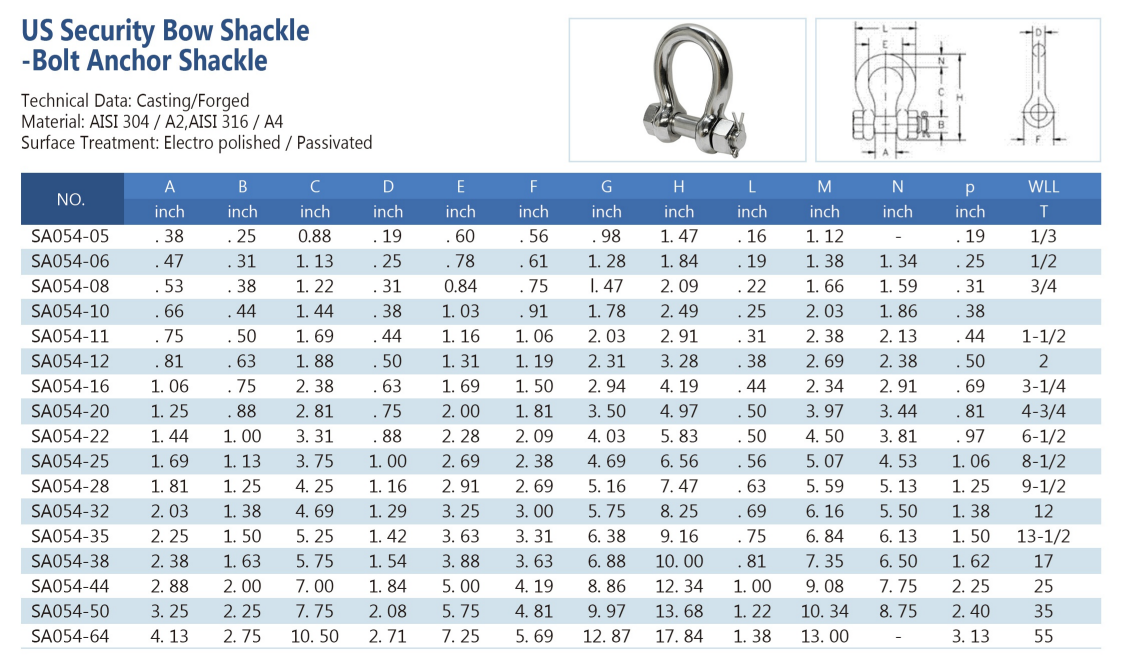

Product Specification

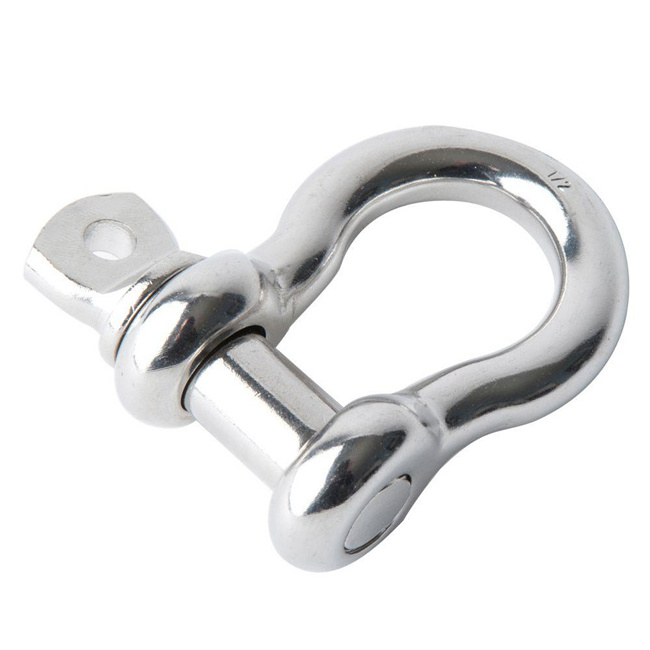

Reference Picture
Product packaging
