Quick Details
-
Place of Origin:
-
China
-
Power:
-
22kw
-
Dimension(L*W*H):
-
3200*1350*1300mm
-
Weight:
-
1500 kg
-
After-sales Service Provided:
-
Video Technical Support
-
Product name:
-
Wet Mix Shotcrete Machine
-
Application:
-
Shotcrete Pump Concrete Spraying
-
Keywords:
-
Shoecrete Machine
-
Suitale Material:
-
Concrete
-
Capacity:
-
30m3/h
-
COLOR:
-
Customizable
-
Operating Air Pressure:
-
16mpa
-
Max particle size:
-
15mm
-
Usage:
-
Building Wall Spraying Slope Tunnel
Quick Details
-
Max. Conveying Distance:
-
100m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
57 mm
-
Place of Origin:
-
China
-
Power:
-
22kw
-
Dimension(L*W*H):
-
3200*1350*1300mm
-
Weight:
-
1500 kg
-
After-sales Service Provided:
-
Video Technical Support
-
Product name:
-
Wet Mix Shotcrete Machine
-
Application:
-
Shotcrete Pump Concrete Spraying
-
Keywords:
-
Shoecrete Machine
-
Suitale Material:
-
Concrete
-
Capacity:
-
30m3/h
-
COLOR:
-
Customizable
-
Operating Air Pressure:
-
16mpa
-
Max particle size:
-
15mm
-
Usage:
-
Building Wall Spraying Slope Tunnel
Product Description

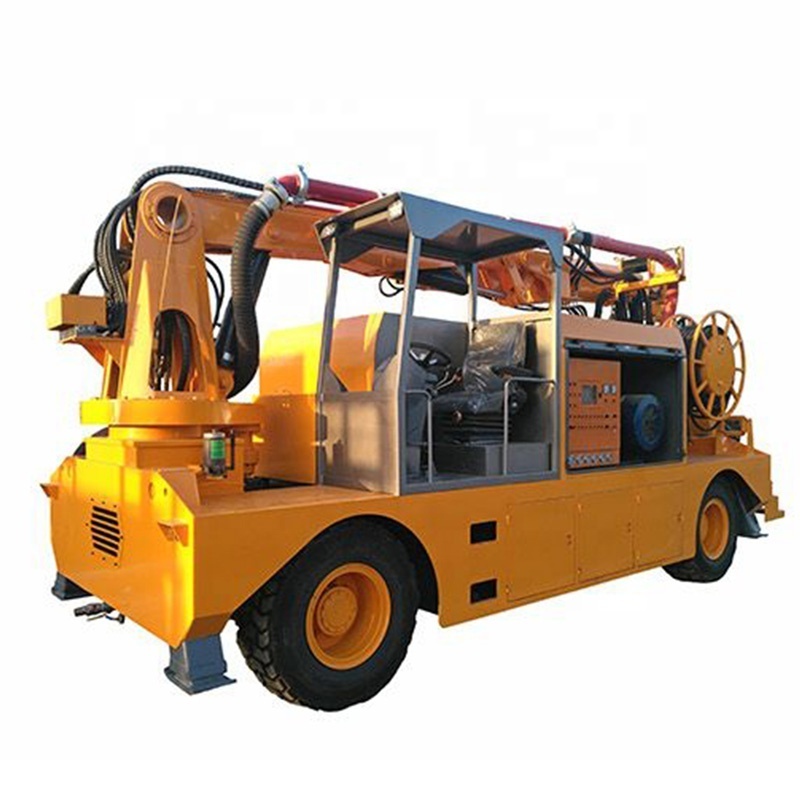

Hydraulic
Wet Shotcrete Machine
Hydraulic wet spraying machine, also known as pumping type concrete wet spraying machine, adopts hydraulic pumping type, with high system reliability and stable conveying volume. Hydraulic wet spraying machine can be used for spraying, filling, grouting, pumping and other construction.
.
Product Paramenters
|
Model
|
YG-GYP-90MINI
|
YG-R-3016
|
|
Capacity
|
3-7 m3/h
|
30m3/h
|
|
Maximum pressure
|
16Mpa
|
6-8BAR
|
|
Power
|
22Kw
|
96kw
|
|
Concrete slump
|
12-18cm
|
12-20cm
|
|
Maximum particle diameter
|
15mm
|
16mm
|
|
size
|
320*135*130cm
|
790*246*338cm
|
|
weight
|
1500kg
|
14500kg
|
Product Display
Product Packaging
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
