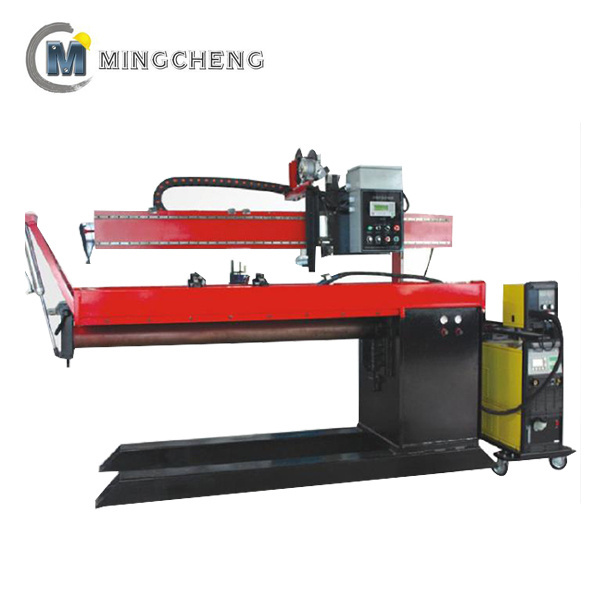

Aluminium Automatic fuel tank longitudinal straight seam welding machine

Aluminium Automatic fuel tank longitudinal straight seam welding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥2 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Welding Material:: carbon steel; stainless steel;galvanized steel

Control mode::: PLC Control

Customised::: available

Working mode::: Auto longitudinal seam welder with PLC control

Application::: solar water heater tank, enamessel tank, LPG/LNG cylinder

color:: According to customer's require

Width and thickness:: Customized

Features:: High efficiency, high precision,Roundness is accurate

Function::: steel tank welding

Weight:: Customized

Certification:: CE ISO 9001:2000

Power:: 3000w

Quick Details

Place of Origin:: Liaoning, China

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Automatic fuel tank longitudinal straight seam welding machine

Welding Material:: carbon steel; stainless steel;galvanized steel

Control mode::: PLC Control

Customised::: available

Working mode::: Auto longitudinal seam welder with PLC control

Application::: solar water heater tank, enamessel tank, LPG/LNG cylinder

color:: According to customer's require

Width and thickness:: Customized

Features:: High efficiency, high precision,Roundness is accurate

Function::: steel tank welding

Weight:: Customized

Certification:: CE ISO 9001:2000

Power:: 3000w

Aluminium Automatic fuel tank longitudinal straight seam welding machine

Product Description

dished end forming machine

1.Pneumatic piano-type compression structure, closely arranged along both sides of the straight seam, to ensure that the butt weld is evenly pressed within the entire welding length; the spacing of the left and right keys can be adjusted to suit the welding of different workpieces; The thickness can be of the airbag type or the cylinder type to ensure sufficient pressing force to prevent thermal deformation during the welding process.

2. The welding gun adopts a two-dimensional fine adjustment mechanism of the pneumatic lifter: through further fine adjustment of the axial and height directions, To ensure the precise distance between the welding torch and the weld. The welding torch driven by the DC servo motor linearly moves the carriage and the guide rail.

3. The electrical control system adopts the Japanese Mitsubishi PLC program control system as the control center and other control electrical components. It has powerful function and humanized operation interface, and the operation is very simple.

Want to see this Longitudinal seam welding machine more information! More>>

Longitudinal seam welding machine modle choice:

Model	POWER SUPPLY	RATED POWER (kw)	THICKNESS (mm)	DIAMETER (mm)	SHRINK HEIGHT (mm)
Model	POWER SUPPLY	RATED POWER (kw)	THICKNESS (mm)	DIAMETER (mm)	SHRINK HEIGHT (mm)
MCZFH-500	380V 50HZ/220V 60HZ	14	0.8-3	Φ110-Φ400	100-500
MCZFH-700		14	0.8-3	Φ110-Φ500	100-700
MCZFH-800		14	0.8-3	Φ110-Φ600	100-800
MCZFH-1000		14	0.8-3	Φ110-Φ600	100-1000
MCZFH-1200		14	0.8-3	Φ110-Φ1000	100-1200
MCZFH-2000		14	1.0-3	Φ110-Φ1200	100-2000
MCZFH-2500		14	1.0-3	Φ110-Φ1500	100-2500
MCZFH-3000		14	1.0-3	Φ110-Φ2000	100-3000

Want to know this Longitudinal seam welding machine more information! Contact us>>

Longitudinal seam welding machine finished product applied to:

Longitudinal seam welding machine f inished product applied to used in many fields, such as solar water heaters,water tank,oil tank,LPG tank, pressure vessel,silencer etc.

Want to know this Longitudinal seam machine more solution&applicaton! More>>

Tank relate machine

Company specializing in tank making machinery equipments,such as dish end machine,triming cutting machine,Necking machine, Longitudinal seam welding machine,Circular Seamwelding machine,cutting machine,bending machine,rolling machine etc.
