one barrier motor,
two remote controllers,
one control panel with one 1-6 meters telescopic boom for optional
- Product Details
- {{item.text}}
Quick Details
-
Power supply:
-
AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ
-
Boom Type &Max. boom length:
-
Straight Boom 6m&Fence Boom 4.5M&Foldin Boom 5M
-
Motor Power:
-
370W
-
Time for Up/Down:
-
(1m-3m)1.5s/(4m-6m)6s
-
External Accessories:
-
Terminals Available For Connection
-
Motor housing material:
-
Weather-proof; Anti-rusting
-
Application:
-
Traffic Parking Access Control
-
Net Weight:
-
52KG (exclude the boom)
-
External Dimensions:
-
340* 280*1000mm
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JUJIANG
-
Type:
-
barrier gate
-
Power supply:
-
AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ
-
Boom Type &Max. boom length:
-
Straight Boom 6m&Fence Boom 4.5M&Foldin Boom 5M
-
Motor Power:
-
370W
-
Time for Up/Down:
-
(1m-3m)1.5s/(4m-6m)6s
-
External Accessories:
-
Terminals Available For Connection
-
Motor housing material:
-
Weather-proof; Anti-rusting
-
Application:
-
Traffic Parking Access Control
-
Net Weight:
-
52KG (exclude the boom)
-
External Dimensions:
-
340* 280*1000mm
Recommend Products
Product Description

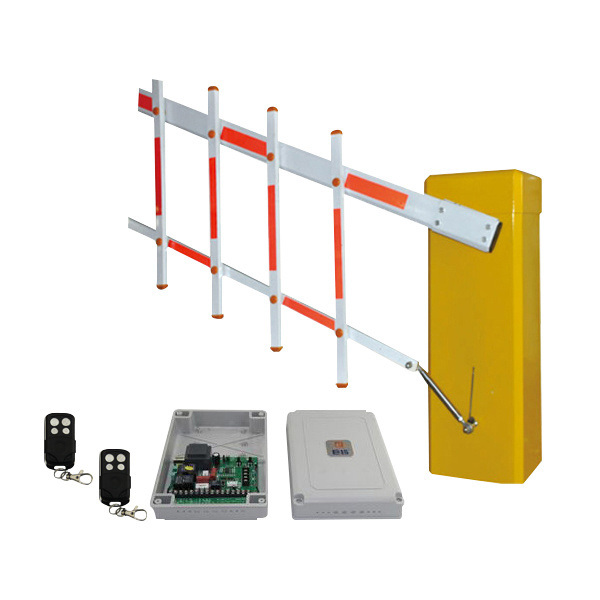

Automatic Electric car Parking Remote Control Barrier Gate Barrier
one barrier motor,
Specification
Main technical specification
Power: AC220V, 50HZ, 0.25A (max)
Working Temperature: -25℃~55℃
Working Humidity: 10%~95% no condensation.
Opening/Closing time: 6s
Wattage: 800W
DC12V Auxiliary Power Output: DC12V output, 100mA max
Safety sensors options: The control panel has the ability to connect all or any of the following safety sensors: Exit/Entry Wand, to automatically open or close the boom gate Loop Detector, to automatically open or close the boom gate PE (photoelectric sensors), to prevent the boom gate from closing on an car or person.
Operating options The system is supplied with a control panel housed in a protective plastic control box with 3 controlling push buttons (Open, Close, and Stop).
Power: AC220V, 50HZ, 0.25A (max)
Working Temperature: -25℃~55℃
Working Humidity: 10%~95% no condensation.
Opening/Closing time: 6s
Wattage: 800W
DC12V Auxiliary Power Output: DC12V output, 100mA max
Safety sensors options: The control panel has the ability to connect all or any of the following safety sensors: Exit/Entry Wand, to automatically open or close the boom gate Loop Detector, to automatically open or close the boom gate PE (photoelectric sensors), to prevent the boom gate from closing on an car or person.
Operating options The system is supplied with a control panel housed in a protective plastic control box with 3 controlling push buttons (Open, Close, and Stop).
The system can also be controlled from any or all the above optional controlling devices: Keypads Remote Controls ID Swipe Card Readers Finger Print Readers Push Button Switches Key Switches GSM Switch
Dimension: 330mm×345mm×950mm (excluding barrier arm), weight is about 60KGS + barrier arm
Dimension: 330mm×345mm×950mm (excluding barrier arm), weight is about 60KGS + barrier arm
|
Brand Name
|
GIANT
|
|
Power supply
|
AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ
|
|
Time for Up/Down
|
(1m-3m)1.5s/(4m-6m)6s
|
|
Boom Type &Max. boom length
|
Straight Boom 6m&Fence Boom 4.5M&Foldin Boom 5M
|
|
External Accessories
|
Terminals Available For Connection
|
|
Motor housing material
|
Weather-proof; Anti-rusting
|
|
Application
|
Traffic Parking Access Control
|
|
Type
|
Barrier Gate
|
Packing & Delivery
Packing:A set/one carton.
Delivery：Negotiated after getting your full payment.
Delivery attention:
1.DHL： please offer your detailed address with zip code for delivery checking.
2.TNT： please kindly noted that TNT samples can't including battery.
3. Sea: please check weather you need original Bill of Lading or can be telex released.
4. China post: it takes months, and may lost on the way.
1.DHL： please offer your detailed address with zip code for delivery checking.
2.TNT： please kindly noted that TNT samples can't including battery.
3. Sea: please check weather you need original Bill of Lading or can be telex released.
4. China post: it takes months, and may lost on the way.
