Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XinQuan
-
Voltage:
-
380V 50Hz or Customized
-
Dimension(L*W*H):
-
25000x5000x6000mm
-
Power (kW):
-
200
-
Weight:
-
30000 KG
-
Product name:
-
Board Making Machine PP PC Hollowness Grid Board Production Line
-
Keywords:
-
Board Production Line
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Automatic Grade:
-
Automatic
-
After Warranty Service:
-
Field maintenance and repair service
-
Output (kg/h):
-
150 - 250 kg/h
-
Certification:
-
CE Certificate
-
Power of main motor:
-
75KW-110KW
-
Product width:
-
1200-2600mm
-
Product thickness:
-
2-12mm
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
36:1
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XinQuan
-
Voltage:
-
380V 50Hz or Customized
-
Dimension(L*W*H):
-
25000x5000x6000mm
-
Power (kW):
-
200
-
Weight:
-
30000 KG
-
Product name:
-
Board Making Machine PP PC Hollowness Grid Board Production Line
-
Keywords:
-
Board Production Line
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Automatic Grade:
-
Automatic
-
After Warranty Service:
-
Field maintenance and repair service
-
Output (kg/h):
-
150 - 250 kg/h
-
Certification:
-
CE Certificate
-
Power of main motor:
-
75KW-110KW
-
Product width:
-
1200-2600mm
-
Product thickness:
-
2-12mm
Product description

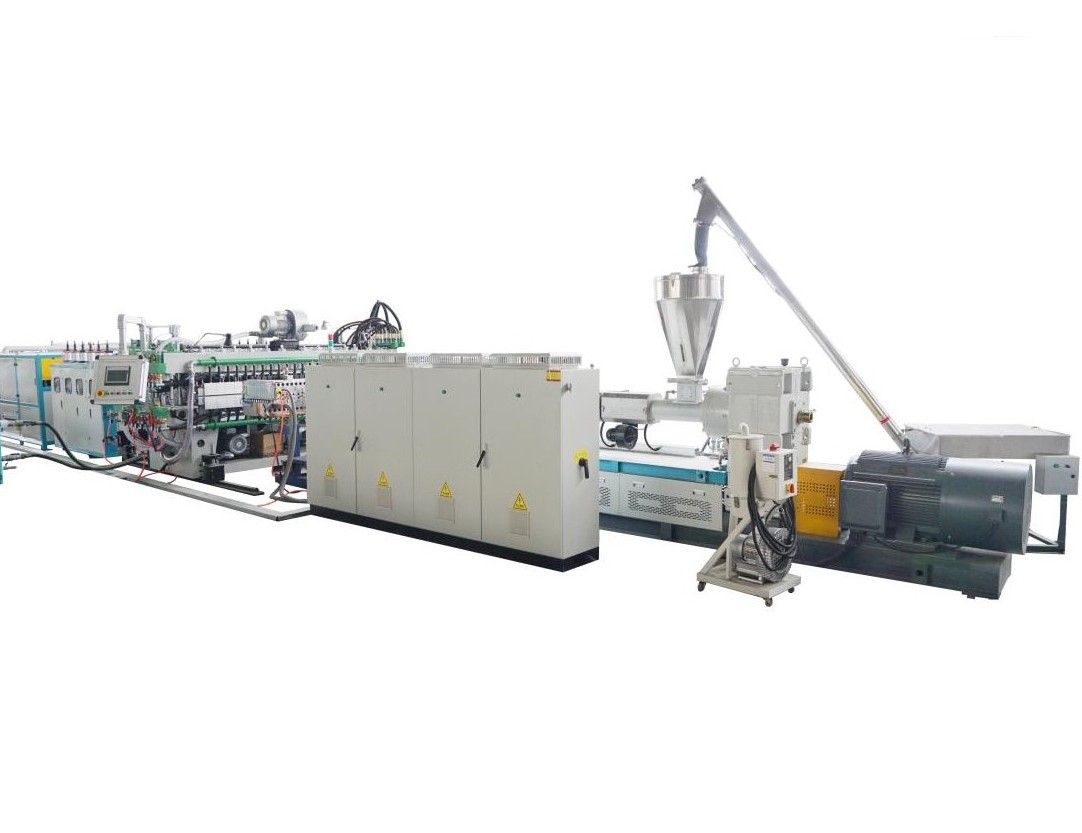

PP PC Hollow Profile Board Production Line
|
Model of extruder
|
PP SJ-100/35
|
SJ-120/35-SJ150/35
|
|
Main motor power
|
75KW
|
110-132KW
|
|
Product width
|
1300-1600mm
|
1600-2600mm
|
|
Product thickness
|
2-10mm
|
2-10mm
|
Most specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
auto spiral screw feeding system.
screw and barrel material is 3
8CrMoAla.complete line is fully automatic.
The mould uses high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also
differential action of up-down piece guarantee even thickness of the plate.
differential action of up-down piece guarantee even thickness of the plate.
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
Configure two haul-off for whole line.
first one is high power/reduction ratio,multi-roller type,well low-speed operation,be able to draw the plate up from the calibrating table evenly and synchronous. The second is designed to remove stress, in addition equipped with edge-cutting device to ensure the valid width and smooth cutting edges.
The oven removes the stress of hollow sheet, the heating oven is made by 304 stainless steel, equipped with separately temperature control system for each zone to ensure the heating to be uniform,4 meter lengths for heating oven operation is necessary.
Cooling i
mprove the surface finish of plastic products, reduce the surface marks and internal stress of plastic products, keep the products from shrinking and deformation, accelerate product shaping, and improve the production efficiency of plastic molding machines.
After corona treatment,the cutting machine a
ccurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade to realize high-quality cutting. forward and backward is controlled by pneumatic
.
The pp hollow profile board has the features,
light weight, high tenacity, damp proof, environmental performance and secondary processing.
Instead of cartons paper with high recycling rate.
Product Application
Application of PP Hollow Grid Boards
The PP hollow grid board can be processed into turnover case, packaging case, clapboard, lining board, backing board and pallet,etc. It is widely used in such fields as the electron, household electrical appliances, packaging, machinery, postal, food, medicine,pesticide and advertisement decoration, etc.
The PP hollow grid board can be processed into turnover case, packaging case, clapboard, lining board, backing board and pallet,etc. It is widely used in such fields as the electron, household electrical appliances, packaging, machinery, postal, food, medicine,pesticide and advertisement decoration, etc.
