Quick Details
-
Winding Rod:
-
3.5 mm O.D
-
Electrode Winding Size:
-
14-32 mm O.D
-
Roll Pin Width:
-
18~75 mm
-
Separator Width:
-
38~130 mm
-
Stop Tape Width:
-
10~25 mm
-
Certificates:
-
CE,ISO9001
-
speed:
-
4~8 pcs/min
-
Utilization Rate:
-
≥98%
-
Power Supply:
-
AC 220 V 50 Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gelon
-
Power:
-
2 KW Max
-
Winding Rod:
-
3.5 mm O.D
-
Electrode Winding Size:
-
14-32 mm O.D
-
Roll Pin Width:
-
18~75 mm
-
Separator Width:
-
38~130 mm
-
Stop Tape Width:
-
10~25 mm
-
Certificates:
-
CE,ISO9001
-
speed:
-
4~8 pcs/min
-
Utilization Rate:
-
≥98%
-
Power Supply:
-
AC 220 V 50 Hz

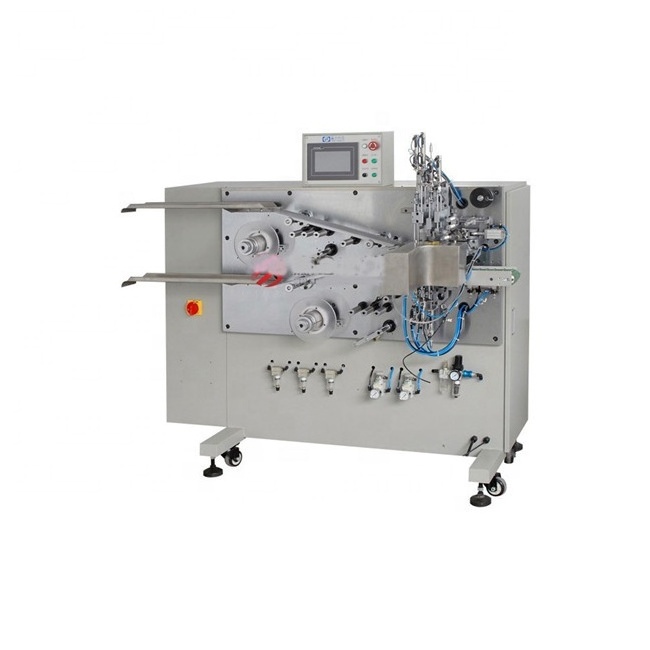

Best Price Electrical Motor Winding Machine for Lithium Ion Battery Pilot Line Production
1. It’s a new semi-automatic winding machine for accurate assembly of pouch cell electrode core.
2. PLC Touch Screen Control
3. Unreeling rotors for separator film feeding
4. Vacuum assist 1200mm long feeder bed for accurate cathode/anode sheet positioning & feeding
5. Passive tension control; tension is adjustable
6. Automatic finish cut after the completion of jelly roll winding
Index:
|
Power |
2KW Max |
|
Winding Rod |
3.5mm O.D |
|
Electrode Winding Size |
14 - 32mm O.D 25 - 70mm L |
|
Cathode / Anode Winding |
Cathode: Aluminum foil coated with an active material Anode: Copper foil coated with graphite Thickness Range: 100~300um Suggested Overall Length: <1200mm Maximum Width: 70mm |
|
Separator Winding |
PP or PE Thickness Range: <100um Max. adaptable size: Thickness: < 10 mm Width: 30 - 80 mm Length: 30 - 100 mm |
|
Electrode Winding Size |
14 - 32mm O.D 25 - 70mm L |
