Quick Details
-
Signal Output:
-
DC4-20mA,Two-wire system
-
Measuring Range:
-
0.6,1.6,2.5,4.0MPa
-
Flange Material:
-
Stainless Steel, PP Plastic
-
Body Material:
-
PP Plastic, Stainless Steel
-
Installation:
-
Side-Mounted,Top-Mounted
-
Medium Density:
-
≥0.6g/cm3, ≥0.76g/cm3
-
Medium Temperature:
-
40~80℃ 0~150℃ 0~300℃ (PP Plastic -10~60℃)
-
Medium Viscosity:
-
≤0.07Pa.S
-
Explosion-proof:
-
Ex iIICT4 Intrinsically Safe
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRD
-
Model Number:
-
FDYM
-
Signal Output:
-
DC4-20mA,Two-wire system
-
Measuring Range:
-
0.6,1.6,2.5,4.0MPa
-
Flange Material:
-
Stainless Steel, PP Plastic
-
Body Material:
-
PP Plastic, Stainless Steel
-
Installation:
-
Side-Mounted,Top-Mounted
-
Medium Density:
-
≥0.6g/cm3, ≥0.76g/cm3
-
Medium Temperature:
-
40~80℃ 0~150℃ 0~300℃ (PP Plastic -10~60℃)
-
Medium Viscosity:
-
≤0.07Pa.S
-
Explosion-proof:
-
Ex iIICT4 Intrinsically Safe
Product Description
Summarization

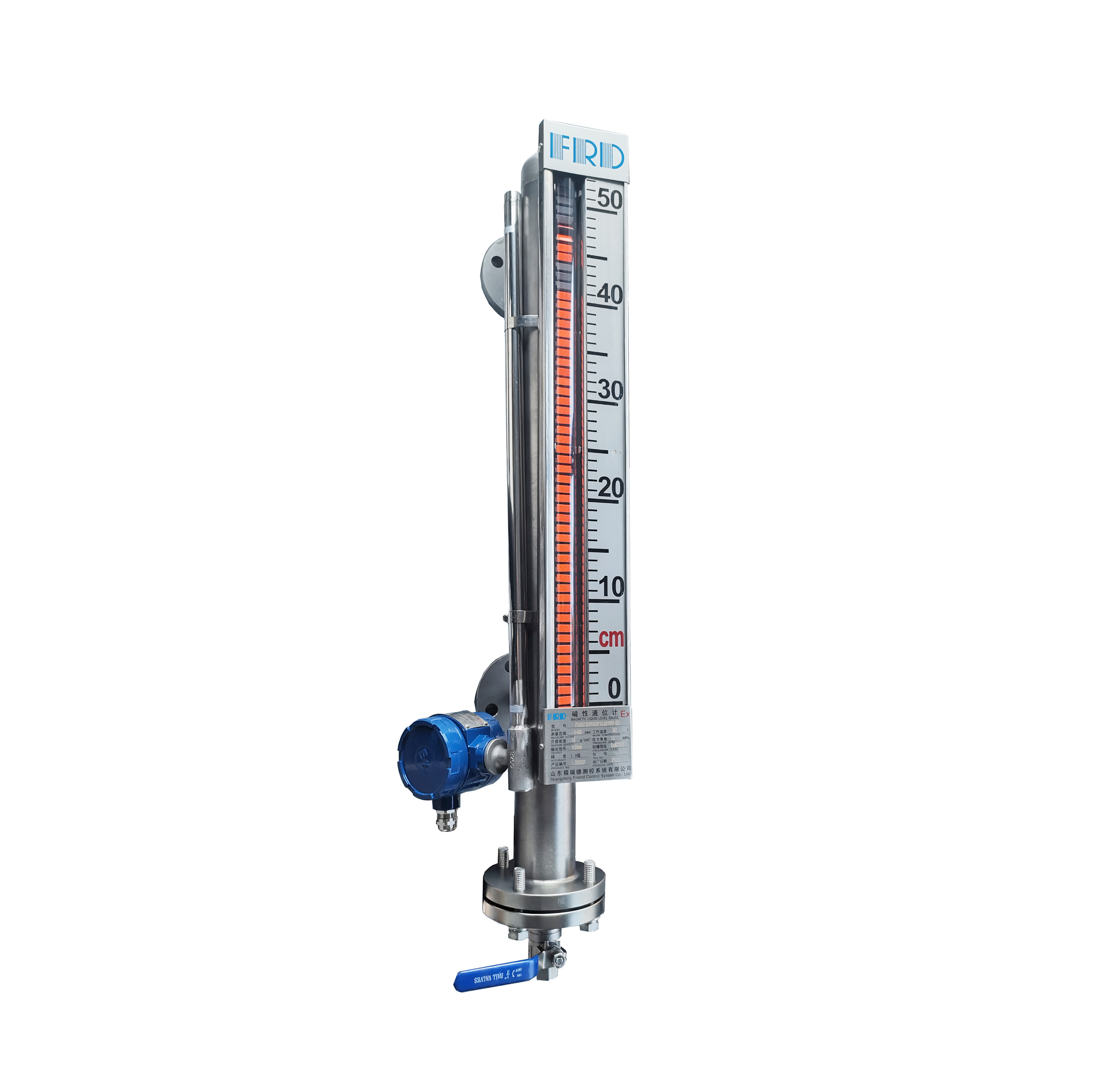

Magnetic Level Gauge take float as measuring element. Magnetic steel drives column display, not requiring energy. UHZ is suitable for varies environment from low to high temperature, from vacuum to high pressure, which is ideal level measuring instrument for Petrochemical Industry and etc.
UHZ can realize remote alarm and limit control, configuring upper and lower limit switch output.
UHZ can realize distance instruction, testing and control of level, configuring transmitter.
We provide Side-Mounted and Top-Mounted according to installation site in the container.
We provide stainless steel, PP plastic, stainless steel lining teflon etc. according to medium. PP plastic and stainless steel lining teflon are ideal for acid and alkali corrosive medium.
Structure Characteristic
1. Basic Model
Float moves up and down with the elevation of level in the measuring tube, based on the principle of buoyancy. Permanent magnet steel in the float drives the red and white column roll over 180°by Magnetic Coupling effect. The column turns from white to red when the level rise, conversely, the column turns from red to white. Thus the level indication is realized.
2. Upper and Lower Limit Switch Output
The alarm switch on the set position of standpipe acts according to the magnetic float moving with the elevation of level. Thus it can realize ON-OFF control or alarm.
3. Electrical Remote Transmission
Transmitter is mounted on the magnetic level meter. The transmitter consists of sensor and transducer. It moves up and down the magnetic sub measurement measuring element followed by action role within the catheter by the magnetic coupling resistance signal change converts the standard 4 ~ 20mA current signal output, so that the digital display instrument or computer connection, Remote Display.
Specification
|
Signal Output
|
DC4-20mA,Two-wire system
|
|
Measuring Range
|
0.6, 1.6, 2.5, 4.0MPa
|
|
Accuracy
|
±1.5％
|
|
Flange Material
|
Stainless Steel, PP Plastic
|
|
Body Material
|
PP Plastic, Stainless Steel
|
|
Installation
|
Side-Mounted, Top-Mounted
|
|
Medium Density
|
≥0.6g/cm3, ≥0.76g/cm3
|
|
Medium Temperature
|
40~80℃ 0~150℃ 0~300℃ (PP Plastic -10~60℃)
|
|
Ambient Temperature
|
-40～70℃
|
|
Medium Viscosity
|
≤0.07Pa.S
|
|
Explosion-proof
|
Ex iIICT4 Intrinsically Safe
|
|
Indication Error
|
±10mm
|
|
Medium Viscosity
|
≤0.07Pa.S
|
