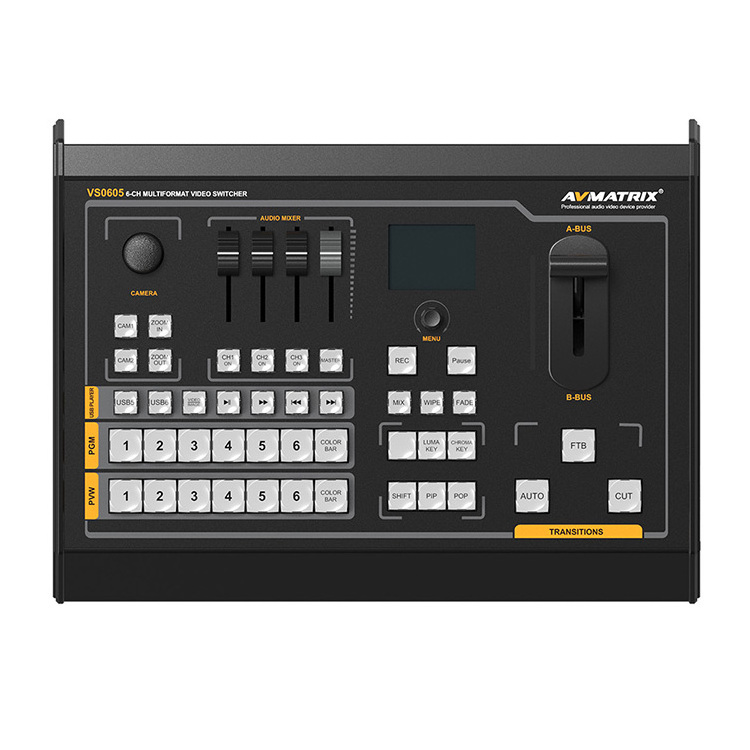

Avmatrix VS0605 6 Channel Multi-format Live Production Broadcast Video Switcher with Recorder

Avmatrix VS0605 6 Channel Multi-format Live Production Broadcast Video Switcher with Recorder

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1299

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Products Status:: Stock

Video Inputs:: SD/HD/3G-SDI(75Ω)X4,HDM-I type-A(100Ω)X2, DVI-I

Analog Audio Inputs:: XLR, RCA

Outputs:: HD/SDI/HDM-I/RCA/RS422/Tally

Audio Mixer:: Following/Mixing

Multiview Output Format:: 1080p 60Hz

Record:: SD card, H.264, record for PGM up to 1080p60

Power Supply:: DC12V, 5A, 20W

Net Weight:: 3.5kg

Size:: 310*180*70mm

Quick Details

Model Number:: VS0605

Brand Name:: AVMATRIX

Place of Origin:: Fujian, China

Products Status:: Stock

Video Inputs:: SD/HD/3G-SDI(75Ω)X4,HDM-I type-A(100Ω)X2, DVI-I

Analog Audio Inputs:: XLR, RCA

Outputs:: HD/SDI/HDM-I/RCA/RS422/Tally

Audio Mixer:: Following/Mixing

Multiview Output Format:: 1080p 60Hz

Record:: SD card, H.264, record for PGM up to 1080p60

Power Supply:: DC12V, 5A, 20W

Net Weight:: 3.5kg

Size:: 310*180*70mm

VS0605,6CH SDI/HDMI Multi-format Video Switcher
* Multiformat input:SD, HD,FHD
* 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player inputs
* 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs
* T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
* T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
* Luma Key/ Chroma Key for virtual studio
* PIP/POP window size and position adjustable
* Record PGM video to SD card, up to 1080p60
* Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
* Tally port for multiple camera system
