Quick Details
-
Voltage:
-
220V/110V/380V
-
Dimension(L*W*H):
-
860*860*1560mm
-
Weight (KG):
-
130 KG
-
Certification:
-
ce
-
Product Name:
-
Two component insulation foaming polyurethane sprayer/spray machine
-
Color:
-
Yellow, blue
-
Driven mode:
-
Pneumatic
-
Maximum output pressure:
-
11Mpa
-
Raw output:
-
2-12kg/min
-
Air source:
-
0.5-0.8Mpa ≥0.9m3/min
-
Application:
-
Polyurethane insulation spraying and injection
-
Weight:
-
200kg
-
Power:
-
7.5KW/11KW
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Machine Type:
-
New
-
Voltage:
-
220V/110V/380V
-
Dimension(L*W*H):
-
860*860*1560mm
-
Weight (KG):
-
130 KG
-
Certification:
-
ce
-
Product Name:
-
Two component insulation foaming polyurethane sprayer/spray machine
-
Color:
-
Yellow, blue
-
Driven mode:
-
Pneumatic
-
Maximum output pressure:
-
11Mpa
-
Raw output:
-
2-12kg/min
-
Air source:
-
0.5-0.8Mpa ≥0.9m3/min
-
Application:
-
Polyurethane insulation spraying and injection
-
Weight:
-
200kg
-
Power:
-
7.5KW/11KW
-
Marketing Type:
-
Hot Product 2022
Two component insulation foaming polyurethane pneumatic high pressure sprayer/spray machine
Introduction of Two component insulation foaming polyurethane pneumatic high pressure sprayer/spray machine
Two component insulation foaming polyurethane pneumatic high pressure sprayer/spray machine can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc.
Parameter of Two component insulation foaming polyurethane pneumatic high pressure sprayer/spray machine
|
Model |
CNMC-700 |
CNMC-E |
CNMC-26 |
|
Power source |
220V/380V |
220V/110V |
380V |
|
Heating power |
12KW |
7.5KW |
11KW |
|
Driven mode |
pneumatic |
pneumatic |
pneumatic |
|
Air source |
0.5~0.8 MPa ≥0.9 m³/min |
0.5~0.8 MPa ≥0.9 m³/min |
0.5~0.8 MPa ≥ 0.9 m³/min |
|
Raw output |
2~12 kg/min |
2~12 kg/min |
2~12 kg/min |
|
Maximum output pressure |
11Mpa |
11Mpa |
11Mpa |
|
AB material output ratio |
1:1 |
1:1 |
1:1 |
|
Spray gun |
1 Set |
1 Set |
1 Set |
|
Feeding pump |
2 sets |
2 sets |
2 sets |
|
Heating hose |
15meters |
15meters |
15meters |
|
Gun connection pipe |
2pieces |
2pieces |
2pieces |
|
Feed delivery pipe |
2pieces |
2pieces |
2pieces |
|
pneumatic pipe |
5meters |
5meters |
5meters |
|
Spare parts |
1set |
1set |
1set |
Features :
1. Stable cylinder supercharged unit, easily providing adequate working pressure;
2. Small volume, light weight, low failure rate, simple operation, easy mobility;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;
4. Minimizing spraying congestion with 4-layers-feedstock device;
5. Multi-leakage protection system to protect the safety of the operator;
6. Equipped with emergency switch system, help operator deal with emergencies rapidly;
7. Digital counting system can understand original consumption timely FOR CNMC-26;
8. Reliable & powerful heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;
9. Humanized design with equipment operation panel, super easy to get the hang of it;
10.Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
11.The latest spraying gun has great features like small volume, light weight, low failure rate, etc.

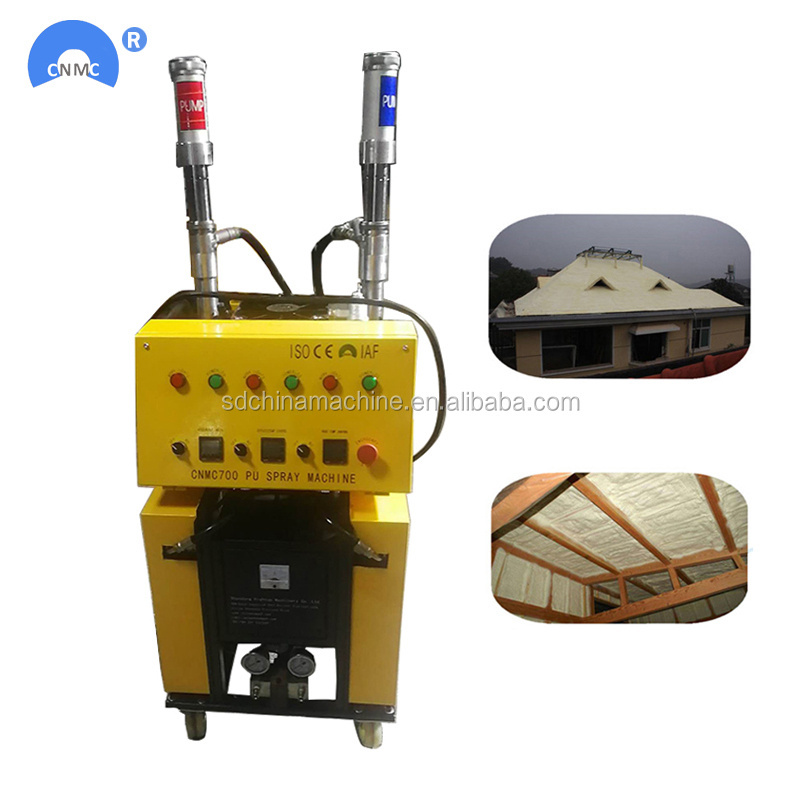

Detailed images of Two component insulation foaming polyurethane pneumatic high pressure sprayer/spray machine
]
Applications of Two component insulation foaming polyurethane pneumatic high pressure sprayer/spray machine
