Quick Details
-
Brand Name:
-
Flysun
-
Voltage:
-
380v,50hz, 380v,50hz, three phases or customize for you
-
Dimension(L*W*H):
-
depends on models
-
Power (kW):
-
22
-
Weight (T):
-
2200
-
Item:
-
waste shredder machine
-
Application:
-
Resource recycling industry
-
Capacity:
-
50-500T
-
Color:
-
Design for you
-
Certification:
-
ISO9001,CE
-
Machinery Type:
-
Recyling Machine
-
MOQ:
-
1 Set
-
After sales:
-
Spare Parts
-
Advantage:
-
Easy Opperation
Quick Details
-
Max.Production Capacity (kg/h):
-
depends on capacity
-
Place of Origin:
-
Henan, China
-
Production Capacity (kg/h):
-
5000 - 5800 kg/h
-
Brand Name:
-
Flysun
-
Voltage:
-
380v,50hz, 380v,50hz, three phases or customize for you
-
Dimension(L*W*H):
-
depends on models
-
Power (kW):
-
22
-
Weight (T):
-
2200
-
Item:
-
waste shredder machine
-
Application:
-
Resource recycling industry
-
Capacity:
-
50-500T
-
Color:
-
Design for you
-
Certification:
-
ISO9001,CE
-
Machinery Type:
-
Recyling Machine
-
MOQ:
-
1 Set
-
After sales:
-
Spare Parts
-
Advantage:
-
Easy Opperation
Brief introduction of
waste shredder machine in waste treatment machinery line

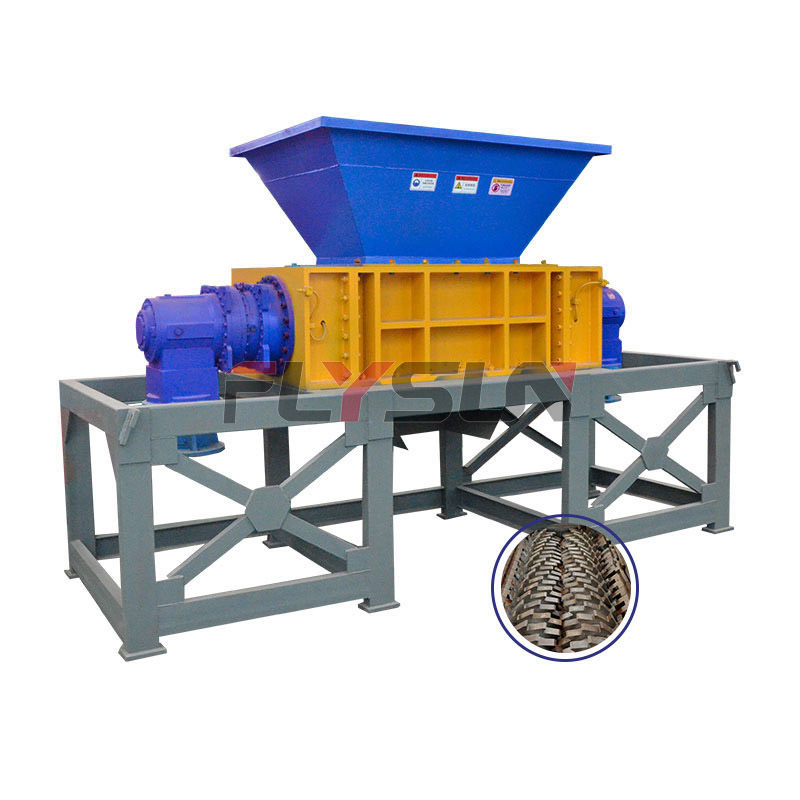

The double shaft waste shredder machine shear shredder known by shearing, tearing and pressing the material to achieve reduced size, which is mainly used for packing tape shredder, tires, films, bags, and other plastic waste nets Of the broken recycling.With dual-axis independent drive, unique knife shaft structure and four-angle rotary tool, in the low-speed high-torque production process, there will be no winding axis, or stuck equipment phenomenon, thereby improving the production efficiency.
Features of
waste shredder machine
*Stable performance with low noise and dust generation
* Minimal maintenance
* Safe and easy operation
* Auto-reversing when engaging unshreddable.
* Free and professional blade design to make sure high shredding quality
* Available for diffeent products,such as waste plastic,rubber,tyre,wood,metal,cardboard,paper,coconut,stone,pvc pipe,grass
* Minimal maintenance
* Safe and easy operation
* Auto-reversing when engaging unshreddable.
* Free and professional blade design to make sure high shredding quality
* Available for diffeent products,such as waste plastic,rubber,tyre,wood,metal,cardboard,paper,coconut,stone,pvc pipe,grass
Technical Parameters
Detailed parameter of
waste shredder machine
|
Model
|
Size (LxWxH)(mm)
|
Feed Inlet Size(mm)
|
Blade Diameter (mm)
|
Blade Thickness(mm)
|
Blade Quantity(pcs)
|
Power(kw)
|
Weight (kg)
|
|
SZ-500
|
2800x1300x1850
|
500x480
|
200
|
20
|
24
|
11x2
|
2200
|
|
SZ-800
|
3000x1300x1850
|
800x480
|
200
|
20
|
40
|
15x2
|
2500
|
|
SZ-1000
|
3300x1900x2200
|
1000x690
|
300
|
40
|
24
|
22x2
|
5200
|
|
SZ-1200
|
3600x2000x2200
|
1200x690
|
300
|
40
|
30
|
30x2
|
6400
|
|
SZ-1500
|
4180x2100x2400
|
1500x850
|
550
|
50/75
|
30/20
|
55x2
|
9000
|
|
SZ-1800
|
5800x2400x3300
|
1800x1206
|
550
|
50/75
|
36/24
|
75x2
|
13600
|
|
SZ-2000
|
6400x2700x3500
|
2000x1490
|
600
|
50/75
|
40/26
|
90x2
|
20100
|
|
SZ-2500
|
7500x3200x3800
|
2500x1800
|
600
|
75/100
|
32/24
|
110x2
|
25000
|
|
SZ-3000
|
3000*2800*2100
|
3000*1800
|
600
|
75/100
|
40/30
|
160*2
|
31000
|
Waste classification can be divided into: 4 stations, 6 stations, 8 stations or can be customized according to needs.
Waste treatment machinery in several stages.
Box feeder+bag breaking machine(Feeding the material evenly and tear the bag into the next process)
Trommel screen(Mainly used for sieving organic and inorganic substances)
Air sorting machine(Mainly used for screening light materials and heavy materials)
Manual sorting table( Sorting out rubber, wood blocks, large pieces of glass, batteries, etc. from the garbage)
Hydraulic baling machine(The sorted plastics and cartons are packaged and can be further processed into RDF fuel rods)
Box feeder+bag breaking machine(Feeding the material evenly and tear the bag into the next process)
Trommel screen(Mainly used for sieving organic and inorganic substances)
Air sorting machine(Mainly used for screening light materials and heavy materials)
Manual sorting table( Sorting out rubber, wood blocks, large pieces of glass, batteries, etc. from the garbage)
Hydraulic baling machine(The sorted plastics and cartons are packaged and can be further processed into RDF fuel rods)
Waste treatment machinery can separate several types waste, t
he material after sorting used as:
1. Inert and non-combustible, such as stones, sand, ceramics, etc., used to make environmentally friendly bricks, cement raw materials or landfill;
2. Ferromagnetic metals – iron wire, iron cans, beer caps, etc., for recycling;
3. Non-ferrous metals—cans, aluminum alloys, aluminum, etc., for recycling;
4. Plastics – mineral water bottles, beverage bottles, plastic blocks, etc., for recycling;
5. Leftover combustibles (wood, leather, clothes, rags, etc.) – making RDF fuel rods for heating or power generation.
2. Ferromagnetic metals – iron wire, iron cans, beer caps, etc., for recycling;
3. Non-ferrous metals—cans, aluminum alloys, aluminum, etc., for recycling;
4. Plastics – mineral water bottles, beverage bottles, plastic blocks, etc., for recycling;
5. Leftover combustibles (wood, leather, clothes, rags, etc.) – making RDF fuel rods for heating or power generation.
Customer cases of
Waste treatment machinery:
1.50T/day w
aste treatment machinery installed in
Zimbabwe.
2.80T/day w
aste treatment machinery
installed in Ghana.
3.300T/day w
aste treatment machinery installed in Austrilia.
.......What capacity do you want?
FLYSUN MACHINERY is located in Zhengzhou City, Henan Province.Founded in 2011, FLYSUN Machinery is a technology-based enterprise integrating R&D, manufacturing, sales and after-sales. Our main products are charcoal briquette processing machine,coconut fiber and peat making machine,household waste sorting machine,w
aste treatment machinery ,
waste shredder machine
and biomass pellet making machine. We provide one-stop service from designing,manufacturing,installation and commission.
Customer Photos
FAQ
1,Q:How can I get your price list?
A:Please leave your contact info, such as Email to us. We will contact with you and pass our quotation sheet to you.
2,Q:Can I visit your factory in China?
A:Of course. We are more than happy to receive you in Zhengzhou and show you around our workplace.
3.,Q:What's your company property, trading company or manufacturer?
A:We are the manufacturer. We mainly produce household waste sorting machine,waste treatment machinery, waste shredder machine and biomass pellet making machine. Our factory has more than 15 years of producing history, products are exported to more than 100 countries and regions.
4,Q: What's your payment term?
A: Generally, we accept 30% prepayment as deposit by T/T, and 70% balance should be effected before shipping.
5,Q:How can we arrange the shipping?
A: We cooperated with some reliable shipping companies for several years, we can be responsible for the shipping to your country.If you have shipping forwarders in China, we can also cooperate with them. We have many successful working sites .
A:Please leave your contact info, such as Email to us. We will contact with you and pass our quotation sheet to you.
2,Q:Can I visit your factory in China?
A:Of course. We are more than happy to receive you in Zhengzhou and show you around our workplace.
3.,Q:What's your company property, trading company or manufacturer?
A:We are the manufacturer. We mainly produce household waste sorting machine,waste treatment machinery, waste shredder machine and biomass pellet making machine. Our factory has more than 15 years of producing history, products are exported to more than 100 countries and regions.
4,Q: What's your payment term?
A: Generally, we accept 30% prepayment as deposit by T/T, and 70% balance should be effected before shipping.
5,Q:How can we arrange the shipping?
A: We cooperated with some reliable shipping companies for several years, we can be responsible for the shipping to your country.If you have shipping forwarders in China, we can also cooperate with them. We have many successful working sites .
If you are interested in our machine, please contact with us. we will suggest you suitable machine as you required.
