- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
T1041N-16
-
Dimension:
-
LxWxH:26*26*13cm
-
Output Power:
-
700Watts (AES)
-
Product Name:
-
10 Inch Woofer
-
Voice Coil Diameter:
-
76mm/3inch
-
Nominal Diameter:
-
250mm/10inch
-
Frequency Range:
-
50-2000 Hz
-
Nominal Impedance:
-
16 Ω
-
Sensitivity:
-
97 dB
-
EBP:
-
170 Hz
-
Winding Material:
-
Aluminium
-
Application:
-
Stage/Outdoor/Party
-
Magnet:
-
Neodymium Inside Slug
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
T1041N-16
-
Dimension:
-
LxWxH:26*26*13cm
-
Output Power:
-
700Watts (AES)
-
Product Name:
-
10 Inch Woofer
-
Voice Coil Diameter:
-
76mm/3inch
-
Nominal Diameter:
-
250mm/10inch
-
Frequency Range:
-
50-2000 Hz
-
Nominal Impedance:
-
16 Ω
-
Sensitivity:
-
97 dB
-
EBP:
-
170 Hz
-
Winding Material:
-
Aluminium
-
Application:
-
Stage/Outdoor/Party
-
Magnet:
-
Neodymium Inside Slug
Wholesale 10 inch Speaker Accessories 700W 16Ohm 97dB Bass Speakers Professional 10'' Neo Woofer
Products Description
Applicable use
Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers.
SEE MORE.
Product Paramenters
|
SPECIFICATIONS
|
|
|
|
|
TYPE
|
ND WOOFER
|
|
|
|
Nominal Diameter
|
250/10
|
mm/in
|
|
|
Rated impedance
|
16
|
ohm
|
|
|
Minimum Impedance
|
13
|
ohm
|
|
|
RMS Power Handing
|
350
|
W
|
|
|
AES Power Handing
|
700
|
W
|
|
|
Max Power Handing
|
1400
|
W
|
|
|
Sensitivity
|
97
|
dB
|
|
|
Frequency Range
|
50-2000
|
Hz
|
|
|
Voice Coil Diameter
|
76/3.0
|
mm/in
|
|
|
Winding Material
|
Aluminium
|
|
|
|
Former Material
|
Glass Fibre
|
|
|
|
Winding Depth
|
18/0.70
|
mm/in
|
|
|
Megnetic Gap Depth
|
8/0.31
|
mm/in
|
|
|
Megnetic Material
|
Neodymium Inside Slug
|
|
|
|
THIELE & SMALL PARAMETERS
|
|
|
|
|
Resonance frequency
|
Fs
|
51
|
Hz
|
|
Dc resistance
|
Re
|
10.3
|
ohm
|
|
Mechanical factor
|
Qms
|
4.4
|
|
|
Electrical factor
|
Qes
|
0.3
|
|
|
Total factor
|
Qts
|
0.28
|
|
|
BL factor
|
Bl
|
23
|
T.M
|
|
Effective Moving mass
|
Mms
|
49
|
g
|
|
Effective Cas air load
|
Vas
|
33
|
liters
|
|
Effective piston area
|
Sd
|
346
|
cm2
|
|
Inductance
|
L1kHz
|
0.79
|
mh
|
|
Max linear excursion
|
Xmax
|
±7
|
mm
|
|
|
EBP
|
170
|
Hz
|
|
MOUNTING AND SHIPPING
|
|
|
|
|
Overall Diameter
|
262/10.3
|
mm/in
|
|
|
Bolt Circle Diameter
|
245/9.6
|
mm/in
|
|
|
Mount Baffle Cut-out
|
230/9.0
|
mm/in
|
|
|
Depth
|
130/5.1
|
mm/in
|
|
|
Flange And Gasket Thickness
|
12.5/0.49
|
mm/in
|
|
|
Net Weight
|
3.8
|
kg
|
|
|
Shipping Weight
|
4.3
|
kg
|
|
|
Shipping Box
|
290x290x160 mm
|
11.4x11.4x6.1 in
|
|
Details Images
Exceed your expectations

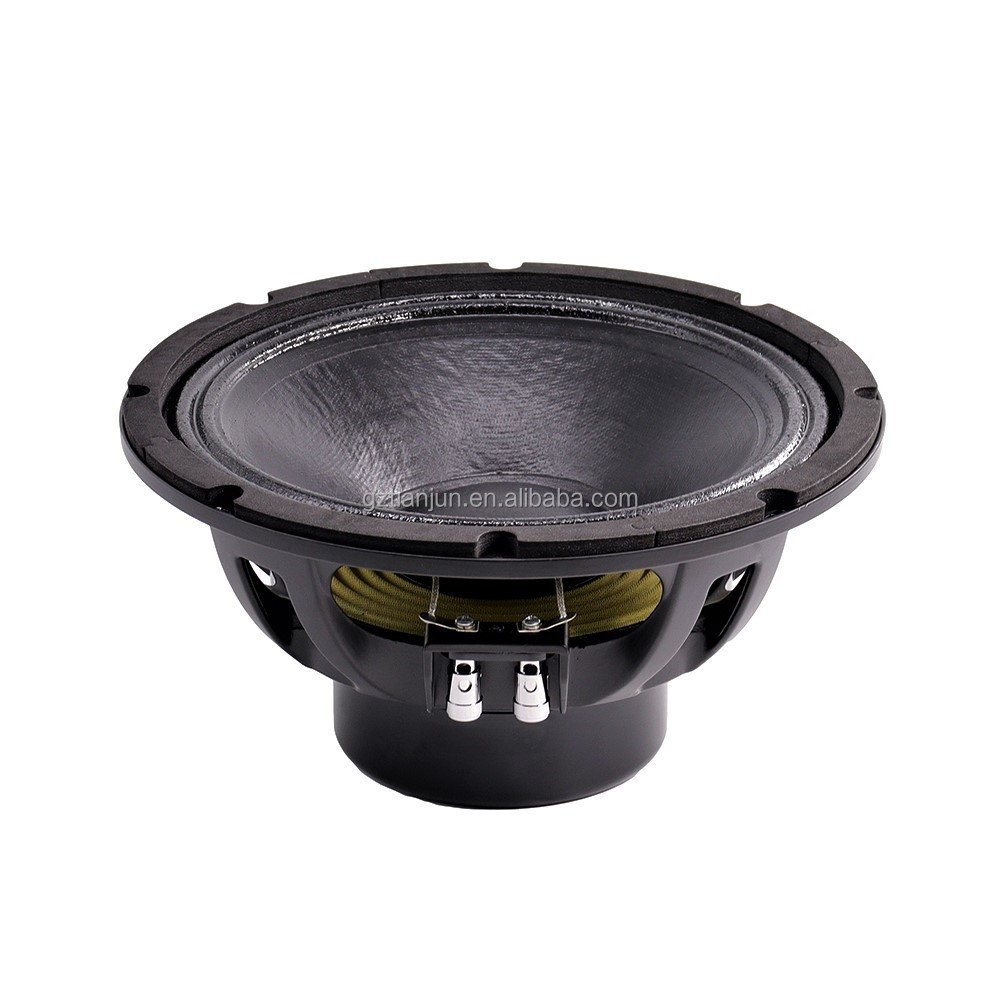

The 3″ voice coil, durable spider suspension and the woven surround all supported by the sturdy steel basket ensures its ability to withstand long hours of operation without compromising efficiency of the speaker.
Welcome to
CONTACT US
Company Introduction
Guangzhou Tianjun Electronic Technology Co., Ltd. was established in 2011 as an electro-acoustic enterprise mainly engaged in R&D, production and sales of PA speakers. We have a strong R&D department and engineers with 20 years of industry experience. The development auxiliary software includes FINEMOTER, LMS, CLIO and Swedish COMSOL physical simulation software. It has successively designed, customized, produced and OEM for well-known brands at home and abroad. Teaming up with international famous brands allows us to gain more professional electro-acoustic manufacturing experience. Tianjun Company is positioned to further strengthen its internationalization and specialization. We adhere to the "professional technology, professional quality" as the core of the enterprise, and develop high-quality products. In order to further improve the quality and quality of products, key raw materials are developed and purchased in cooperation with global manufacturers such as the United Kingdom, Germany, the United States, Thailand, Japan, and Malaysia. Strictly control the quality from the introduction of raw materials to the delivery of products. The company is favored and recognized by customers for its high-quality products and beautiful prices. We look forward to receiving your inquiries!
Why choose us
Have a product development and design team
Our R&D personnel have 20 years of design and development experience
Development assistance software: FINEMOTER, LMS, CLIO, COMSOL
FAQ
Q1: How can I get sample?
A: If you need a sample test, please contact us. We will make it according to your requirements. But you may need to pay the sample fee and its shipping fee.
Q2: How much is the shipping cost for samples?
A: Different sample have different weights and packaging sizes. Please contact us for details.
Q3: Can I print my logo on the product and packaging?
A: Of course you can. Just need you to send us your logo design
and authorization documents
, we will make it on the product and packaging according to your request for your confirmation.
Q4: Can you produce according to customer's design?
A: Yes. We mainly do OEM/ODM services.
Q5: How are your products packaged?
A: Generally, we pack in white boxes and brown cartons.
Q6: How to strictly control the quality of products?
A: We have strict quality control on products from raw materials to production process, and all products are tested before leaving the factory.
Packing&Shipping
Packing:
1.Neutral Packing 2.Strong Carton 3.1 Piece Per Carton
Shipping:
1️⃣
Ocean Transport
2️⃣
Air Transport
3️⃣
Rail Transport
4️⃣
Road Transport
5️⃣
International Express
