Quick Details
-
Product name:
-

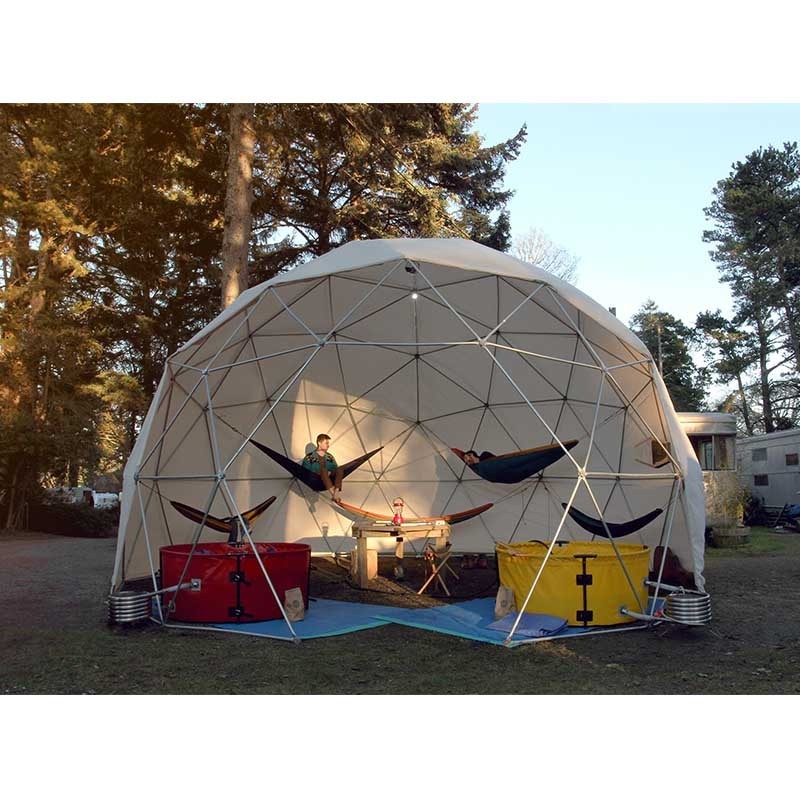

8m geodesic dome gazebo interior design, dome tent for advertising
-
Other name:
-
geodesic dome wedding lawn tent party dome tent
-
Frame material:
-
Hard Pressed Extruded Aluminum Alloy
-
Roof Cover:
-
850g/s double PVC-coated polyester textile
-
Side wall cover:
-
PVC walls,glass wall,ABS wall,sandwich pannel ect
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, ect.
-
Connectors:
-
Hot-DIP Galvanized
-
Wind Resistance:
-
100km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Service Life:
-
15--20 Years
Quick Details
-
Brand Name:
-
Jieol
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GDT-2017121512
-
Product name:
-
8m geodesic dome gazebo interior design, dome tent for advertising
-
Other name:
-
geodesic dome wedding lawn tent party dome tent
-
Frame material:
-
Hard Pressed Extruded Aluminum Alloy
-
Roof Cover:
-
850g/s double PVC-coated polyester textile
-
Side wall cover:
-
PVC walls,glass wall,ABS wall,sandwich pannel ect
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, ect.
-
Connectors:
-
Hot-DIP Galvanized
-
Wind Resistance:
-
100km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Service Life:
-
15--20 Years
wedding lawn tent party tent for advertising
>>>The Specification of geodesic dome gazebo
1. Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
2. Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
3. Connector: strong hot-dip galvanized steel
4. Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
5. Wind load: max. 100km/h (can be reinforced)
6. Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
7. Easy to be assembled and dismantled, movable.
8. No pole inside, 100% available interior space.
|
Size(Diameter)
|
Ridge Height
|
Frame Pipe Diameter
|
Area
|
|
3m
|
1.8m
|
Φ26*2.5mm
|
7㎡
|
|
4m
|
2.5m
|
Φ26*2.5mm
|
12.56㎡
|
|
5m
|
2.9m
|
Φ26*2.5mm
|
19.26㎡
|
|
6m
|
3.5m
|
Φ26*2.5mm
|
28.26㎡
|
|
8m
|
4m
|
Φ26*2.5mm
|
50㎡
|
|
10m
|
5m
|
Φ26*2.5mm
|
78.5㎡
|
>>>Ground Fixing of geodesic dome gazebo
|
1. Expantion screws
|
Be used on the ground which can be damaged, such as cement or tarmac ground
|
|
|
||
|
2. Steel Nails
|
Be used on the ground which is the loose ground, such as the sand and grass
|
|
|
||
|
3. Loading Plates
|
Be used on the ground which can't be damaged such as marble and tile ground
|
|
|
||
