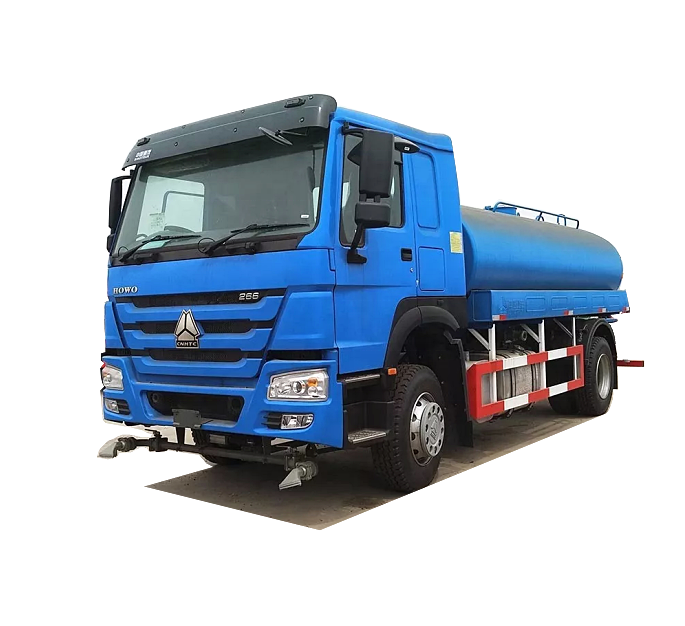

SINOTRUK HOWO 266hp 4x2 Heavy Duty Water Tanker Sprinkler Water Tanker Truck Stainless Steel New China 10 Wax Brown Manual > 8L

SINOTRUK HOWO 266hp 4x2 Heavy Duty Water Tanker Sprinkler Water Tanker Truck Stainless Steel New China 10 Wax Brown Manual > 8L

FOB Reference Price: Get Latest Price

≥1 Pieces

US $43600

≥10 Pieces

US $41125

≥100 Pieces

US $32560

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Gross Vehicle Weight:: 16000

After-sales Service Provided:: Video technical support, Online support

Dimensions (L x W x H) (mm):: 8500x2496x3048

Place of Origin:: Shandong, China

Color:: Brown

Chassis brand:: SIONTRUK

Tank material:: Q235 Carbon Steel

Driving type:: Left Hand Drive

Tire:: 12R22.5

Emission standard:: EURO 2

Package:: Wax

Volume:: 11-51 M3

Rear axle:: ST13

Cab:: HW76

Quick Details

Condition:: New

Drive Wheel:: 4X2

Brand Name:: SINOTRUK HOWO

Gross Vehicle Weight:: 16000

After-sales Service Provided:: Video technical support, Online support

Dimensions (L x W x H) (mm):: 8500x2496x3048

Place of Origin:: Shandong, China

Color:: Brown

Chassis brand:: SIONTRUK

Tank material:: Q235 Carbon Steel

Driving type:: Left Hand Drive

Tire:: 12R22.5

Emission standard:: EURO 2

Package:: Wax

Volume:: 11-51 M3

Rear axle:: ST13

Cab:: HW76

Product Description

The sprinkler is a kind of tanker, and its main purpose is to transport water and spray for greening, dust suppression on construction sites, etc.

Introduction

Water transport truck , has the functions of transportation and water supply.

It can be used to install hot water and drinking water to meet the needs of different users in different use environments.

It is composed of truck chassis, water inlet and outlet system and tank body.

Optional

You also can choose ope rating platform

SPECIFICATION
Chassis No							ZZ1167M4617C
Brand							SINOTRUK—HOWO
Driving type							Left Hand Driving
Dimension(Lx W xH)(unloaded)(mm)							8500×2496×3048
Tank Volume(m3)							12m3 Tankbody(thickness):5mm,material:carbon steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment
Approaching angle/Departure angle(°)							16/15
Overhang(front/rear) (mm)							1500/2200
Wheel base (mm)							4600
Max speed(km/h)							75
Curb weight(kg)							7800
Total weight(kg)							16000
Engine	Specification					water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection
		Engine Model					WD615.62
		Fuel type					Diesel
		Power					266HP
		Emission					EURO II
Fuel tanker capacity(L)							350
Transmission			Model			HW13710，10 forward&2 reverse
Brake system			Service brake			Dual circuit compressed air brake
Brake system				Parking brake			spring energy, compressed air operating on rear wheels
Steering system			Model			8198
Front axle			HF7
Rear axle			ST13
Color			Optional
Tyre			12R22.5 tubeless tires 6+1 spare
Electrical system			Battery	2X12V/165Ah
				Alternator	28V-1500kw
				Starter	7.5Kw/24V
Cab			HOWO76 cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Details Show

WATER PUMP

Model	Rate of flow	Throw of pump
80QSB-60/90	60	90
65QSB-30/45	30	45
65QSB-50/110	50	110

Control System

Automatic electrical control, personnel do not need to get on and off the truck to open and close operation, labor saving and convenient

Function Introduction

* Before the spray

Front two sides have two duck-billed sprinkler, up, down, left and right four can be adjusted, mainly to wash the road. The width is 5-10 meters

* After the spill

There are two cylindrical sprinklers on the rear side of the vehicle. Slot nozzle Angle and the ground into about 15 degrees its function is mainly to the road sprinkler and dust. The coverage width is 14-18 meters.

* Anti-aircraft gun

Hold the gun and put it on the operating table or tank. It can rotate in all directions. Its functions are mainly used for spraying tall trees, emergency fire fighting, strong scouring and green space irrigation By adjusting the nozzle, the water can be ejected into a column or fog. Range 30-40 meters.

* Pressure drain

The pressure drainage port is placed on both sides of the tank body, and its nozzle is generally 65mm quick loading and fastening, which can be quickly connected with the interface of the conveying hose. Its function is mainly used to irrigate vegetation that cannot be approached by vehicles, or to transport water over a long distance.

Personalized design to meet customer needs

Gasoline pump, gasoline pump. A gasoline engine is used to drive a drug pump or water pump. Compared with the chassis power fuel saving, economic some better. Drug pump pressure, flow choice of a larger margin.

The rear part of the truck is equipped with a three-bend spray gun to forcefully wash the road dust

The rotary 3-inch artesian pipeline is used to irrigate the green space beside the highway

Showerhead sprinkler: spray young plants, flowers and other delicate plants. It neither washes the soil surface nor damages the seedlings

Add the dosing system: reel, hand - held spray gun, rubber hose

Row type alarm light, ball alarm light, LED arrow light: Platoon lights have a variety of music and a loudspeaker. LED arrowhead lights are eye-catching and bright at night.

Packing & Delivery

Transport roro shipment

Transport 40HQ frame shipment

Transport bulk cargo shipment

Packaging Details: All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
