Quick Details
-
Keyword:
-

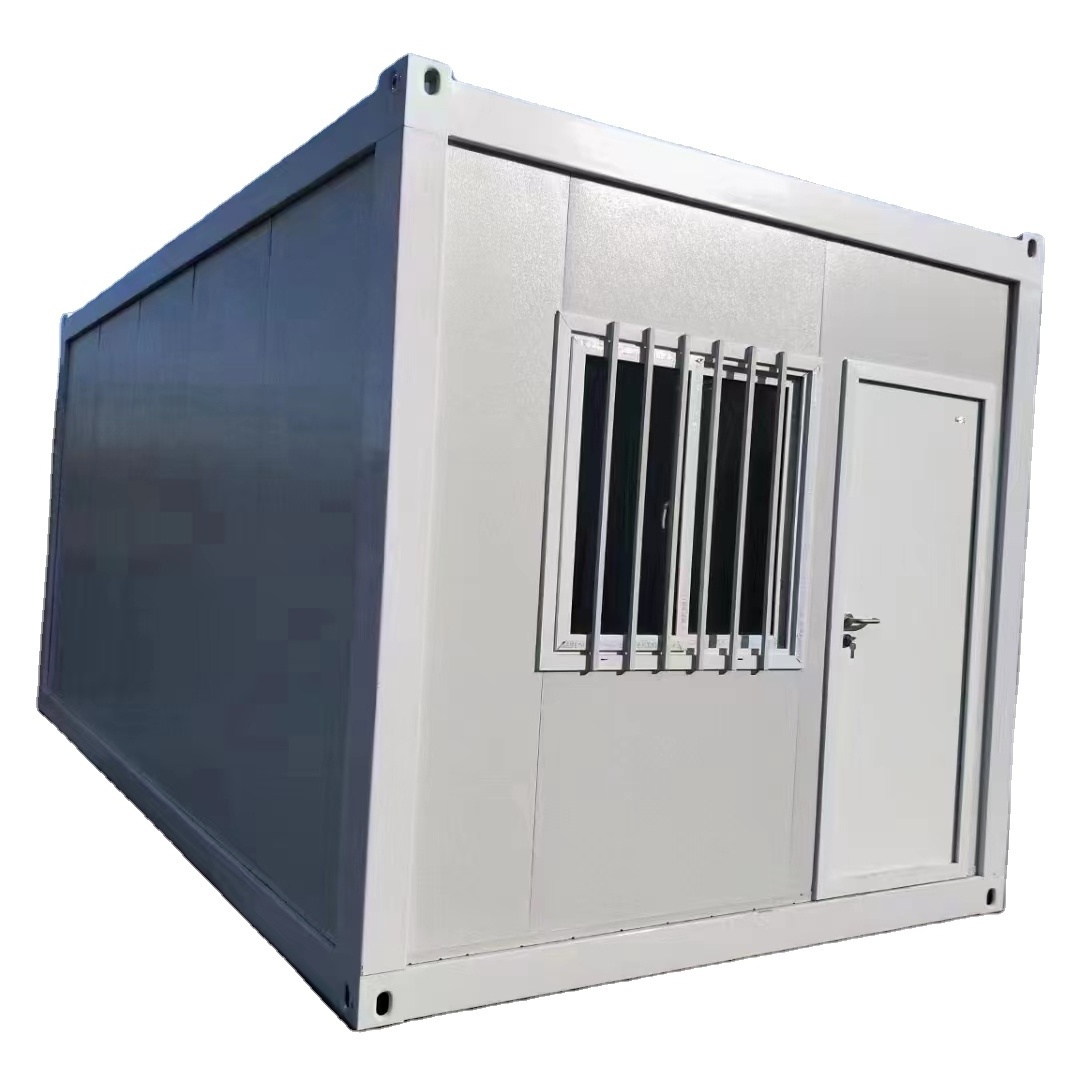

Mobile Living Container House
-
Type:
-
Prefabricated Modular Houses
-
Structure:
-
Q235B Light Steel Frame
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BaidaMingsheng
-
Product name:
-
Quick Assembly Prefabricated House
-
Keyword:
-
Mobile Living Container House
-
Type:
-
Prefabricated Modular Houses
-
Structure:
-
Q235B Light Steel Frame
Product Description
Specification
|
BaidaMingsheng standard box technical parameters
|
|
|
|
||
|
Basic Characteristics |
External dimensions(mm)
|
5800L*2480W*2560H
|
|
||
|
|
Internal dimension(mm)
|
5640L*2320W*2400H
|
|
||
|
|
Folded state (mm)
|
5800*2480*410
|
|
||
|
|
Total mass (kg)
|
1100
|
|
||
|
Frame Structure |
Top girder
|
Q235B Rectangular square tube 60*80*1.3mm
|
|
||
|
|
Bottom girder
|
Q235B Rectangular square tube 80*140*1.5mm
|
|
||
|
|
Front and rear main beam
|
Q235B Rectangular square tube 80*80*1.3mm
|
|
||
|
|
Side wall frame
|
Q235B Rectangular square tube 40*80*1.3mm
|
|
||
|
|
Bottom load-bearing
|
Q235B Rectangular square tube 40*40*1.3mm
|
|
||
|
|
Top load-bearing
|
Q235B Rectangular square tube 40*40*1.3mm
|
|
||
|
|
Hanging head
|
Q235B 125*200*(4mm)
|
|
||
|
|
Folding hinges
|
Galvanized hinge 13mm
|
|
||
|
House Top |
Overall Frame Protection Coatings
|
Electrostatic spray/high-gloss white
|
|
||
|
|
External top plate
|
0.5mm Galvanized sheet
|
|
||
|
|
Internal ceiling
|
Color steel veneer V930*0.25㎜
|
|
||
|
Wall Panel |
Insulation glass wool
|
Glass wool roll 50mm
|
|
||
|
|
Side wall
|
50mm composite board 0.23mm+basalt wool+0.23mm
|
|
||
|
|
Front and rear wall panels
|
65mm composite board 0.23mm+basalt wool+0.23mm
|
|
||
|
Floor
|
Fireproof glass magnesium floor 15mm
|
|
|
||
|
Electrical System |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products must comply with CE certification. Connect the circuit according to circuit engineering specifications, indoor: 4² national standard soft copper wire, 1 20A circuit breaker, 2.5² incoming socket , 1 five-hole single-opening socket, 1 ten-hole socket, 1 air conditioner socket, 1 lamp indivual.
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
Security Door
|
High quality security door (warm white) size: 930mm*1970mm
|
|
|
||
|
Window
|
930*930 plastic steel anti-theft integrated window, glass thickness 4mm (warm white)
|
|
|
||
|
Quality Assured
|
The whole box as a whole meets the A-level fire protection standard.
|
|
|
||
