Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
SHINEEAST
-
Model Number:
-
GD 10
-
Place of Origin:
-
China
-
Horsepower:
-
NONE
-
Outlet Size:
-
NONE
-
Power:
-
NONE
-
motor:
-
NONE
-
Product name:
-
high pressure hydro testing pump
-
Material:
-
Metal
-
Pressure ratio(i):
-
16:1
-
Liquid:
-
CO2 LPG
-
MOQ:
-
1 Piece
-
Packing:
-
Carton Box
Quick Details
-
Application:
-
Machining, Metal and Equipment Manufacturers, Mining industry, Pressure testing, Precision lubrication and spraying, Valve actuator control, liquid transfer
-
Pressure:
-
High Pressure
-
Voltage:
-
NONE
-
Warranty:
-
1 years
-
Brand Name:
-
SHINEEAST
-
Model Number:
-
GD 10
-
Place of Origin:
-
China
-
Horsepower:
-
NONE
-
Outlet Size:
-
NONE
-
Power:
-
NONE
-
motor:
-
NONE
-
Product name:
-
high pressure hydro testing pump
-
Material:
-
Metal
-
Pressure ratio(i):
-
16:1
-
Liquid:
-
CO2 LPG
-
MOQ:
-
1 Piece
-
Packing:
-
Carton Box

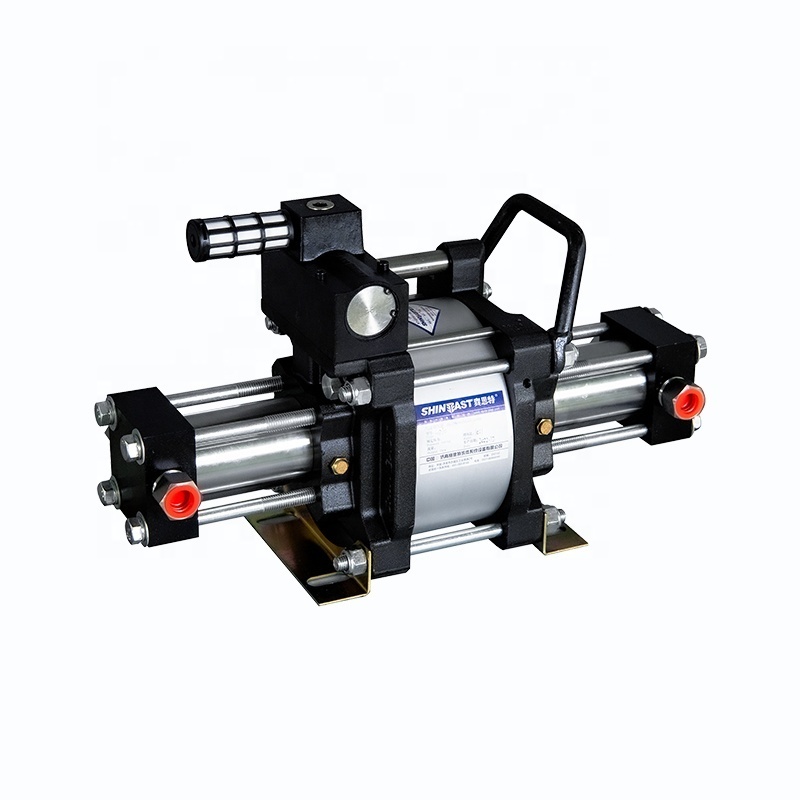

SHINEEAST G Series and GD Series High Pressure Pumps are large flow pumps, both of them are with diameter of drive plunger of 160mm.
G Series are single ating, single drive air head pumps, and GD Series are characterized by the same features as the G pumps single acting, single air drive head types, but they have less pulsations and deliver approx. 50 % more flow.
In addtion to G Series and GD Series pump, there are also G-2 Series pumps available, which are single acting, double drive air heads pumps, with diameter of drive plunger of 160mm.
Compared with the single acting single air drive head G pumps , G-2 Series pumps reach double pressure at the same air drive pressure.
Air Driven Liquid Pump-GD Series
Technical Data
|
TYPE |
Pressure Ratio |
MAX Outlet Pressure(bar)* |
Connection Inlet A |
Connection Outlet B |
Air drive
|
MAX Flow (L/min)** |
|
|
GD4 |
4:1 |
32 |
NPT1/2 |
NPT1/2 |
G1/2 |
54.00 |
|
|
GD6 |
6:1 |
48 |
NPT1/2 |
NPT1/2 |
G1/2 |
48.60 |
|
|
GD10 |
10:1 |
80 |
NPT1/2 |
NPT1/2 |
G1/2 |
30.61 |
|
|
GD16 |
16:1 |
128 |
NPT1/2 |
NPT1/2 |
G1/2 |
19.73 |
|
|
GD28 |
28:1 |
224 |
NPT1/2 |
NPT1/2 |
G1/2 |
11.30 |
|
|
GD40 |
40:1 |
320 |
NPT1/2 |
NPT1/2 |
G1/2 |
7.69 |
|
|
GD64 |
64:1 |
512 |
NPT1/2 |
NPT3/8 |
G1/2 |
4.94 |
|
|
GD80 |
80:1 |
640 |
NPT1/2 |
NPT3/8 |
G1/2 |
3.96 |
|
|
GD100 |
100:1 |
800 |
NPT1/2 |
NPT3/8 |
G1/2 |
3.13 |
|
|
GD130 |
130:1 |
1040 |
NPT1/2 |
NPT3/8 |
G1/2 |
2.4 |
|
|
GD175 |
175:1 |
1400 |
NPT3/8 |
M14X1.5 |
G1/2 |
1.81 |
|
|
GD255 |
255:1 |
2040 |
NPT1/4 |
M14X1.5 |
G1/2 |
1.23 |
|
|
GD400 |
400:1 |
3200 |
NPT1/4 |
M14X1.5 |
G1/2 |
0.79 |
*Max. outlet pressure at an air drive of 8 bar/116 PSI
**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI
