Quick Details
-
Voltage:
-
380V/3PHASE/50HZ
-
Dimension(L*W*H):
-
3370*1160*1730mm
-
Application:
-
wooden factory, Wooden manufacter, wooden furniture, woodworking
-
Weight (KG):
-
2700 KG
-
Power (kW):
-
35.8kw
-
Max.Working Width(mm):
-
200mm
-
Max.Working Height(mm):
-
85mm
-
Product name:
-
Multipurpose All In One MJ320B Planing Sawing Woodworking Machine
-
Model:
-
ZHX-MJ320B
-
Color:
-
Grey & white
-
Maxium Working thickness:
-
85mm
-
Maxium working width:
-
200mm
-
Feeding speed:
-
5-35m/min
-
SAW SHAFT DIAMETER:
-
50mm
-
Keywords:
-
Wood Cutting Log Multichip Saw
-
Total motor power:
-
35.8kw
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONG HAO XING
-
Usage:
-
Cutting\trimming\planing
-
Voltage:
-
380V/3PHASE/50HZ
-
Dimension(L*W*H):
-
3370*1160*1730mm
-
Application:
-
wooden factory, Wooden manufacter, wooden furniture, woodworking
-
Weight (KG):
-
2700 KG
-
Power (kW):
-
35.8kw
-
Max.Working Width(mm):
-
200mm
-
Max.Working Height(mm):
-
85mm
-
Product name:
-
Multipurpose All In One MJ320B Planing Sawing Woodworking Machine
-
Model:
-
ZHX-MJ320B
-
Color:
-
Grey & white
-
Maxium Working thickness:
-
85mm
-
Maxium working width:
-
200mm
-
Feeding speed:
-
5-35m/min
-
SAW SHAFT DIAMETER:
-
50mm
-
Keywords:
-
Wood Cutting Log Multichip Saw
-
Total motor power:
-
35.8kw

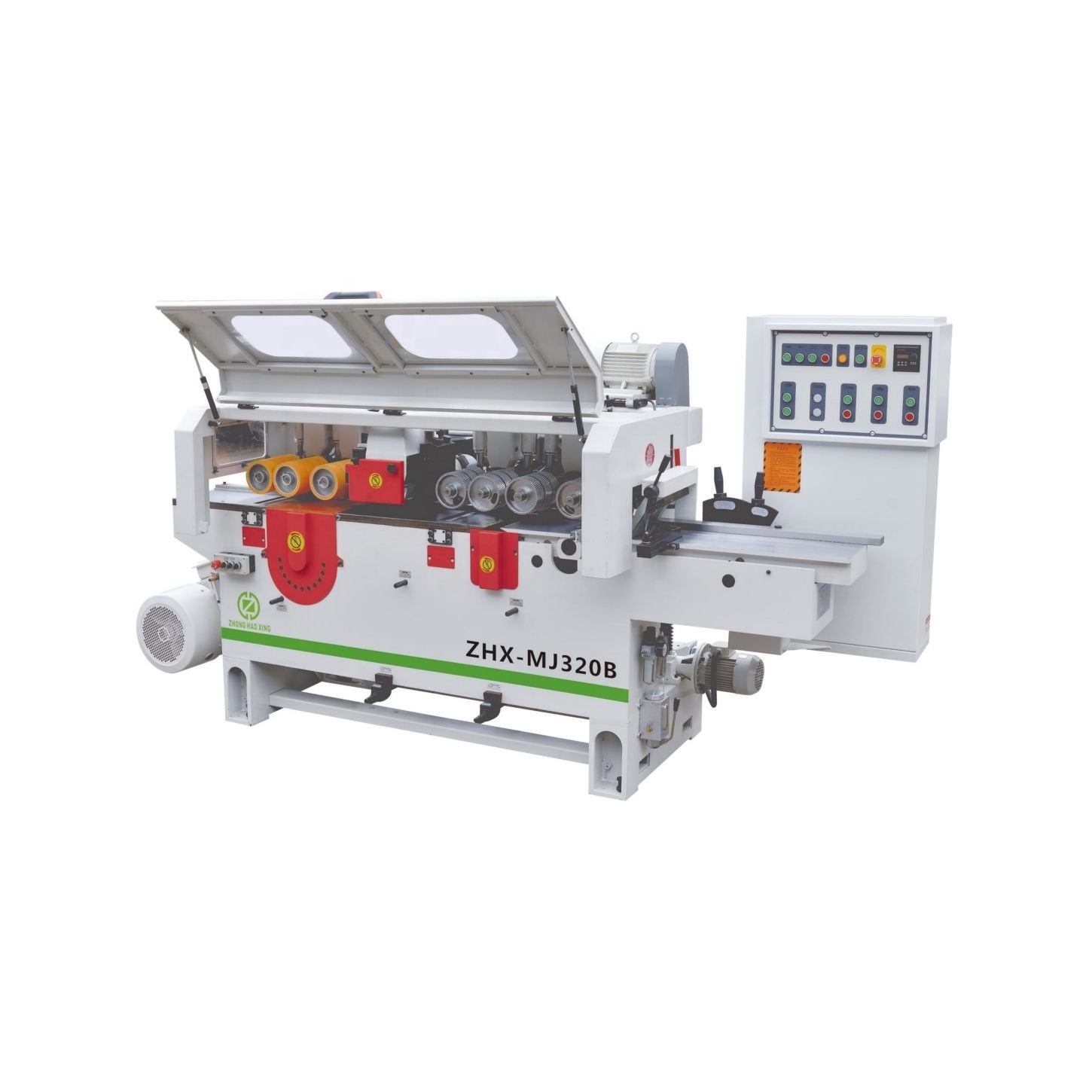

Multipurpose All In One MJ320B Planing Sawing Woodworking Machine
| Model | ZHX-M220 | ZHX-MJ320B | |
|
Technical Data |
Max Working Width | 200mm | 200mm |
| Max Working Thickness | 85mm | 85mm | |
| Feeding Speed | 5-35m/min | 5-35m/min | |
| Cutter Spindle Diameter | 40mm | 40mm | |
| Saw Spindle Diameter | 50mm | 50mm | |
| Cutter Spindle Speed | 7000rpm | 7000rpm | |
| Saw Spindle Speed | 4000rpm | 4000rpm | |
| Saw Spindle Keyway | 16*5mm | 16*5mm | |
| Cutter Spindle Left Right Moveable | 10mm | 10mm | |
| Air Pressure | 0.4mpa | 0.4mpa | |
| Motor Power | The First Bottom Spindle | 4kw | 4kw |
| The First Top Spindle | 5.5kw | 5.5kw | |
| Feeding Motor | 3kw | 3kw | |
| Feeding Rising Motor | 0.75kw | 0.75kw | |
| Saw Spindle Rising Motor | - | 0.55kw | |
| Saw Spindle Motor | - | 22kw | |
| Total Power | 13.25kw | 35.8kw | |
| Cutter Diameter | The First Bottom Cutter | 125mm | 125mm |
| The Second Top Cutter | 125mm | 125mm | |
| Top and Bottom Saw Spindle | - | - | |
| Saw Blade Diameter | 305mm | 305mm | |
| Others | Feeding Wheel Diameter | 140mm | 140mm |
| Dust Absorp Tube Diameter | 125mm | 140mm | |
| Net Weight | 1500kg | 2700kg | |
| Dimensions | 3000*1160*1730mm | 3370*1160*1730mm |
1.Professional solutions,high-volume Wooden pallet ,specifications and other wood materails.
2.Control board,simple and convenient.All cutter spindles can be adjusted, convert frequency speed control.
3.Independent electric box control,to be equipped with China good famous “hailipu” convert frequency,and China famous with CE certificate electric parts.
4. All spindles are mounted on independent guides.
5. Heavy duty and stronger machine body.
6. Protective noise-reducing cover with viewing Windows and internal lighting.
