horizontal mixer semi automatic chilli sauce filling machine

horizontal mixer semi automatic chilli sauce filling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 1%

Voltage:: 220V/110V

Place of Origin:: Henan, China

Brand Name:: YOUNA

Dimension(L*W*H):: 1200mmx300mmx700mm

Weight:: 10 KG

Core Components:: air cylinder

After-sales Service Provided:: Engineers available to service machinery overseas

machine apply:: any paste/cream material

filling machine range:: 10-100ml 20-200ml 50-500ml 100-1000ml 260-2600ml 500-5000ml

speed:: 5-30times/min

diameter:: 4/6/8mm

machine hopper:: 30L

machine material:: 304ss

operation:: pedal control

filling volume control:: by move adjuster knob

quick wear part:: sealing ring

Quick Details

Machinery Capacity:: 400BPH, 1000BPH, 100BPH

Packaging Material:: paste/cream material

Filling Material:: Milk, Water, Oil, Juice

Filling Accuracy:: 1%

Voltage:: 220V/110V

Place of Origin:: Henan, China

Brand Name:: YOUNA

Dimension(L*W*H):: 1200mmx300mmx700mm

Weight:: 10 KG

Core Components:: air cylinder

After-sales Service Provided:: Engineers available to service machinery overseas

machine apply:: any paste/cream material

filling machine range:: 10-100ml 20-200ml 50-500ml 100-1000ml 260-2600ml 500-5000ml

speed:: 5-30times/min

diameter:: 4/6/8mm

machine hopper:: 30L

machine material:: 304ss

operation:: pedal control

filling volume control:: by move adjuster knob

quick wear part:: sealing ring

Product Description

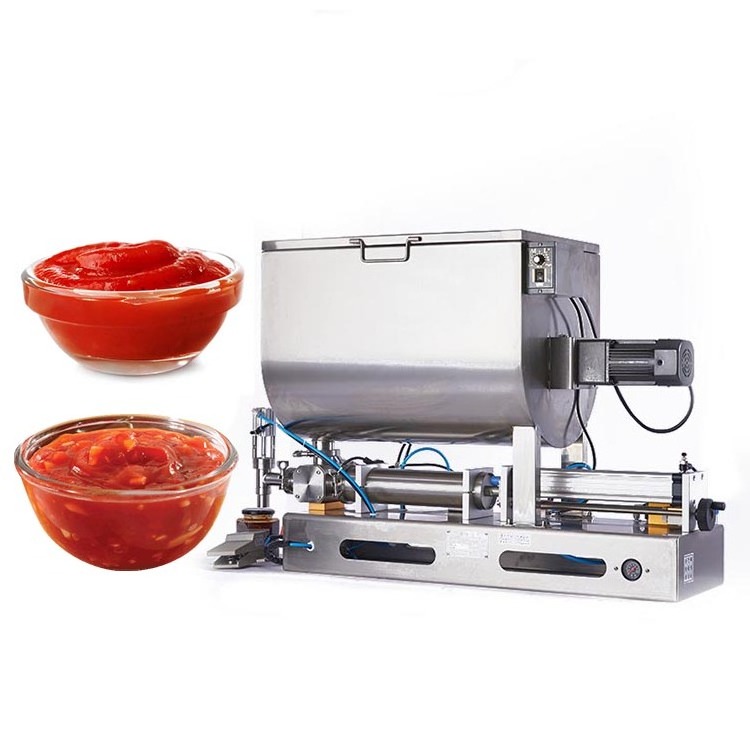

horizontal mixer semi automatic chilli sauce filling machine Application：

the filling machine is suitable fo r kinds of paste and liquid material such as water, juice, honey, tomato paste, chilli sauce, peanut butter, seasame paste, jam,cosmetic paste, shampoo, etc. it is widely used in the food, cosmetic, etc.

horizontal mixer semi automatic chilli sauce filling machine Features : 1.adopts piston measuring mode and compressed air as the power to work.
2. Adopts 304 stainless steel, corrosion resisting, compact structure with easy operation.
3. Filling capacity can be adjusted easily.
4. it can work automatically or controlled by a operation pedal.
5. has single head, double heads and full pneumatic model, if need, pls contact in advance.

Specification

item	filling machine
voltage	110/220V
power	20w
filling range	5-50ml, 10-100ml, 15-150ml, 30-300ml, 50-500ml, 100-1000ml, 300-1500ml, 300-2600ml, 500-3500ml, 1000-5000ml
filling mouth diameter	3mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 25mm 28mm
body	full stainless steel body, contact material 304SUS, 316SUS accept customized
filling nozzles	1,2
work way	pneumatic (air compressor)
air pressure	0.5-0.7MPa
speed	5-30bottle/min (influenced by filling volume and operate speed)
weight	65kg (100-1000ml model)
