Quick Details
-
Dimension(L*W*H):
-
3800*900*1450mm
-
Weight:
-
2100 KG
-
Marketing Type:
-
Hot Product 2021
-
Name:
-
Horizontal Wood Splitter Log Splitting Machine Wood Splitter
-
Model:
-
BD-PM1200
-
Application:
-
Wood Splitting
-
Raw material:
-
Branches Wood Logs Timber
-
Advantage:
-
Work Efficiency
-
Capacity:
-
3-5T/H
-
Feature:
-
Easy Opperation,Labor cost savings
-
Color:
-
Customers' Requirement
-
Max. Log diameter:
-
1.1m
-
Package:
-
Standard Package
Quick Details
-
Use:
-
Split the tree stump,log
-
Place of Origin:
-
HENAN
-
Brand Name:
-
BEDO
-
Dimension(L*W*H):
-
3800*900*1450mm
-
Weight:
-
2100 KG
-
Marketing Type:
-
Hot Product 2021
-
Name:
-
Horizontal Wood Splitter Log Splitting Machine Wood Splitter
-
Model:
-
BD-PM1200
-
Application:
-
Wood Splitting
-
Raw material:
-
Branches Wood Logs Timber
-
Advantage:
-
Work Efficiency
-
Capacity:
-
3-5T/H
-
Feature:
-
Easy Opperation,Labor cost savings
-
Color:
-
Customers' Requirement
-
Max. Log diameter:
-
1.1m
-
Package:
-
Standard Package

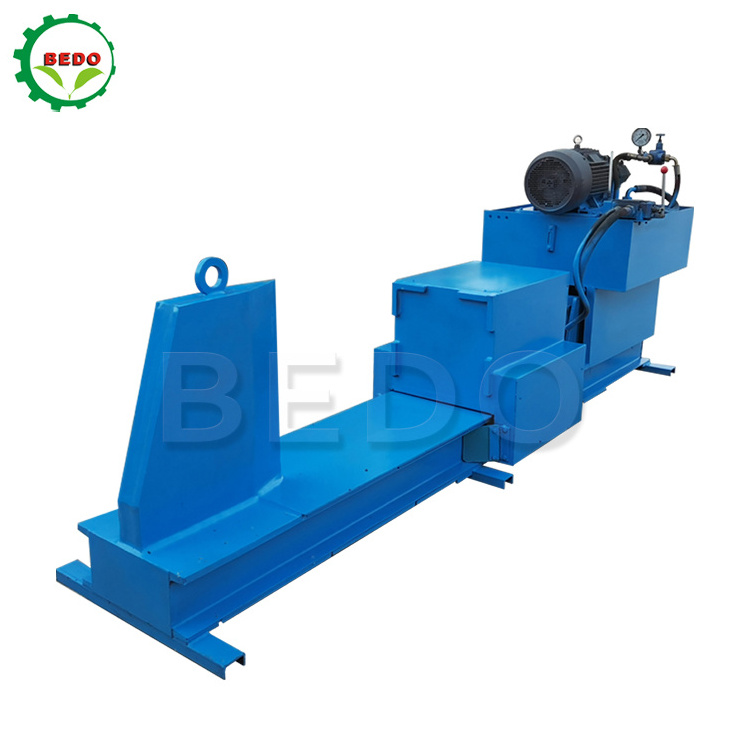

Heavy Duty Horizontal Firewood Processor Wood Splitter Log Splitting Machine
Product Description
The machine is suitable for board making, paper making and other wood chip manufacturers, is an ideal product to assist the production of wood chip equipment, is the latest domestic wood splitter series products. The machine adopts hydraulic working principle specially for large wood, all kinds of tree stump, large round wood section and hard wood. The material is decomposed and cut to meet the feed size requirements of the chipper, or the raw material is split into other materials. Reasonable structure, durable, high yield, easy operation, safety and other characteristics, is the ideal product to replace the band saw.
Specification
Hydraulic splitter horizontal expansion design, greatly reduce the center of gravity of the splitter, not only more saving position, but also easy to move and storage, the length can split the length of 150 cm of logs, at the same time, the diameter of the splitter can reach 1000mm, fully meet the needs of use.
|
Model
|
BD-PM1200
|
BD-PM1500
|
|
Power
|
15kw
|
18.5kw
|
|
Oil Cylinder Maximum Trip
|
1.2m
|
1.5m
|
|
Maximum diameter of wooden pier
|
1.1m
|
1.4m
|
|
Gear pump flow rate
|
63
|
80
|
|
Capacity
|
3-5t/h
|
4-6t/h
|
|
Size
|
3800*900*1450mm
|
4400*900*1450mm
|
|
Weight
|
2.1t
|
2.5t
|
Details Images
1: The frame of the whole machine is optimized to make the weld position more reasonable and improve the overall rigidity and strength.
2: Continuous and long-term debugging demonstration, so that the hydraulic system matching more reasonable, higher efficiency.
3: All metal tubing seamless control, prevent all running and leaking.
4: Reliable big factory motor, oil pump, valve body, long life, rest assured use.
5: According to the actual use requirements, redesign and manufacture of various specifications.
2: Continuous and long-term debugging demonstration, so that the hydraulic system matching more reasonable, higher efficiency.
3: All metal tubing seamless control, prevent all running and leaking.
4: Reliable big factory motor, oil pump, valve body, long life, rest assured use.
5: According to the actual use requirements, redesign and manufacture of various specifications.
Raw Materials and Final Production
Splitting machine is our specialized splitting tree stump machine developed for many years, the equipment is mainly used for splitting tree stump, splitting into wood chips after processing. The product is safe and reliable, durable, is a good helper for the majority of customers to get rich, for customers to create a very good economic benefits, has been the customer's consistent praise.
Packing & Delivery
1. Packing: Nude packing.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
