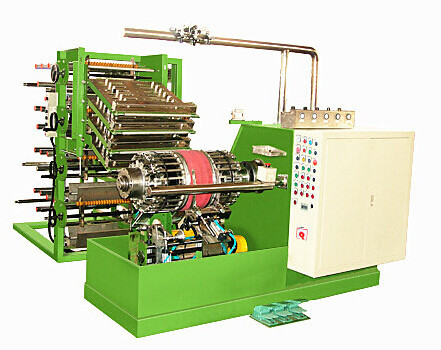

Fully-automatic motorcycle tire building machine / motorcycle tire making machine

Fully-automatic motorcycle tire building machine / motorcycle tire                                         making machine

Application:

This building machine is commonly used for tire building equipment in domestic and overseas as present , mainly used for producing motorcycle tire and motorcycle tubeless green tire building . Integration of PLY applying , bead applying and cord turn-up,high degree of automation , good quality green tire building , easy and simple operation , it is advanced tire building equipment .

Structure Features:

It consists of building drum,down compression roller ,bead suction device ,cord fabric ,tread infrared centering device ,compacting mechanism ,servicer etc.

Technical Parameters:

Specification of tire : locomotive tire

Forming mode : flat drum expansion

Nylon cord : 8"~21"

Cord fabric roll diameter(Max.) : 400mm

Inner cloth roll diameter(Max.) : 300mm

Revolution of drum : 35~120r/min

Main drive motor : 2.2KW

Under stitcher motor : 0.75KW

Ply servicer motor : 1/2HP*4P*1/20/each ply

Compressed air : 5~7kg/

Overall dimension (L*W*H): 2300*2200*2050mm

Building speed : 2PLY building 500pcs/8hrs

4PLY building 400pcs/8hrs

Motorcycle tire building machines in the workshop:

Our packing way :Export standard (wooden package )  or according to your requirement .

Our Services :

1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.

2 .Our service department  listen to customers' feedback at any time and provide spare parts timely.

Welcome to visit our factory and we can show you the machine in working condition:

If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make non-standard machines according to your request.
