Quick Details
-
Output:
-
a F type/BNC RF output
-
Color:
-
Black
-
Certifications:
-
CE FCC ROHS
-
Support:
-
HDMI resolution up to 1080P/60Hz
-
HDMI resolution:
-
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
-
The number of Channel:
-
80
-
HDMI Audio Format:
-
LPCM
-
RF Channel B/W:
-
7/8 MHz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
DVB-T Transmitter
-
Input:
-
a HDMI input
-
Output:
-
a F type/BNC RF output
-
Color:
-
Black
-
Certifications:
-
CE FCC ROHS
-
Support:
-
HDMI resolution up to 1080P/60Hz
-
HDMI resolution:
-
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
-
The number of Channel:
-
80
-
HDMI Audio Format:
-
LPCM
-
RF Channel B/W:
-
7/8 MHz

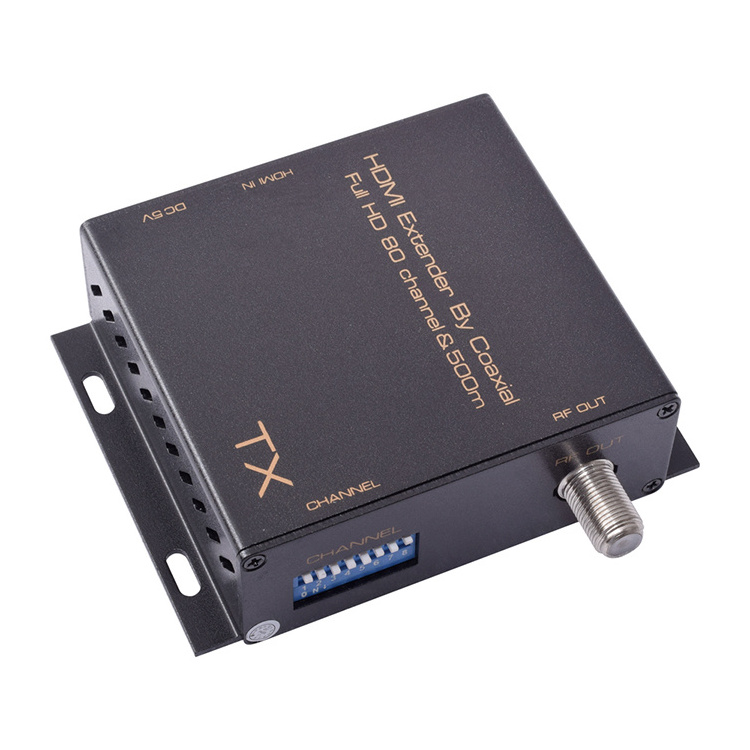

Hot ASK HDEX0011M1 H.264 Qam Modulator DVB-T Transmit HDMI to DVBT 80 Channel RF Encoder Modulator with DVB-T/C ISDB-T For DTV
HDMI Extender By Coaxial
Model No: HD EX0011 M1
DVB-T modulator are designed to make your A/V device use more convenient, comfortable, productive and cost - efficient.
The HDMI TO DVB-T Modulator can convert HDMI signal to HD digital TV signal based on DVB-T CATV transmission mode. hdmi to rf modulator applies RF modulation technology characteristic to realize the HD signal to HD digital TV signal conversion and transmit via coaxial cable over long distance up to 5 00 meters. By a CA TV network mixer ,the Modulator over Coaxial cable supports pair to pair and multiple to mul t iple video matrix.
Hot ASK HDEX0011M1 H.264 Qa
m Modulator DVB-T Transmit HDMI to DVBT 80 Channel RF Encoder Modulator with DVB-T/C ISDB-T For DTV
Ho
l S upports a HDMI input and a F type /BNC RF output.
l Support HDMI resolution up to 1080P/60Hz.
l O utput signal accord with the relevant DVB-T standards, and it can be compatible with any DVB-T TV or receiv er.
l T ransmission distance up to 500 meters by SYV-75-5 coaxial cable and no need amplification.
l S upport 80 channels for option; frequency ranges 139MHz~950MHz.
l Products using the broadcast signal transmission mode, only one line can transmit 48 channels of high-definition video signal at the same time .
l By a CATV network mixer, the Modulator over Coaxial cable supports pair to pair and multiple to mul t iple video matrix.
l The use of digital TV communication protocol , a nti interference and error correction capability is very strong .
l Installs in minutes . The use of the existing CATV transmission network, no need wiring .
l By using a s pecial receiver (HDEX009M1) , you can decoding DVB-T signal and output HDMI HD signal for non DVB-T TV/Monitor . OEM Hot ASK HDEX0011M1 DVB-T H.264 Modulator HDMI to DVBT RF Encoder Modulator with DVB-T/C ISDB-T For DTV
SPECIFICATIONS: HDEX0011 M1
| HDMI resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| HDMI Audio Format | LPCM |
| RF f requency r ange | 139~ 950 MHz |
| RF Channel B/W | 7/8 MHz |
| The number of Channel | 80 |
| RF Output power | -6dBm |
| RF Connector type | The imperial F type/BNC |
| Coaxial cable Characteristic impedance | 75 Ω |
| Coaxial cable types | SYV-75/RG59 etc. |
| RF t ransmission distance | ≤ 500m SYV-75-5 coaxial standard cable |
| TX Max working current | 650mA |
| Power adapter format Input | AC 100V ~ 240V 50HZ / 60H z, DC 5 V/ 2 A |
| Operating Temperature range | -1 0 to + 4 5℃ |
| Storage Temperature range | -20 to +60℃ |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| Case Dimension (L x W x H) | 94x74x28 (mm) |
| Weight | 120 g |
