Quick Details
-
Model Number:
-
HM-ST-002
-
Mechanical Life:
-
50000 Cycles
-
stroke:
-
2.00mm
-
elecctrical life:
-
2000cycles
-
contact resistance:
-
50MΩ max at initial 100MΩ max after life test
-
Dielectric strength:
-
500VDC/1MIN
-
materials:
-
plastics,alloy copper gold plating
-
capacitance:
-
5PFMAX
-
insulation resistance:
-
100MΩ ,500VDC
-
Non-swtiching rating/ switching rating:
-
100MA.50VDC/25MA 24VDC
-
operating temp/storage temp:
-
-20°C-70°C/-40°Cto 85°C
-
Certification:
-
ROHS
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-ST-002
-
Mechanical Life:
-
50000 Cycles
-
stroke:
-
2.00mm
-
elecctrical life:
-
2000cycles
-
contact resistance:
-
50MΩ max at initial 100MΩ max after life test
-
Dielectric strength:
-
500VDC/1MIN
-
materials:
-
plastics,alloy copper gold plating
-
capacitance:
-
5PFMAX
-
insulation resistance:
-
100MΩ ,500VDC
-
Non-swtiching rating/ switching rating:
-
100MA.50VDC/25MA 24VDC
-
operating temp/storage temp:
-
-20°C-70°C/-40°Cto 85°C
-
Certification:
-
ROHS

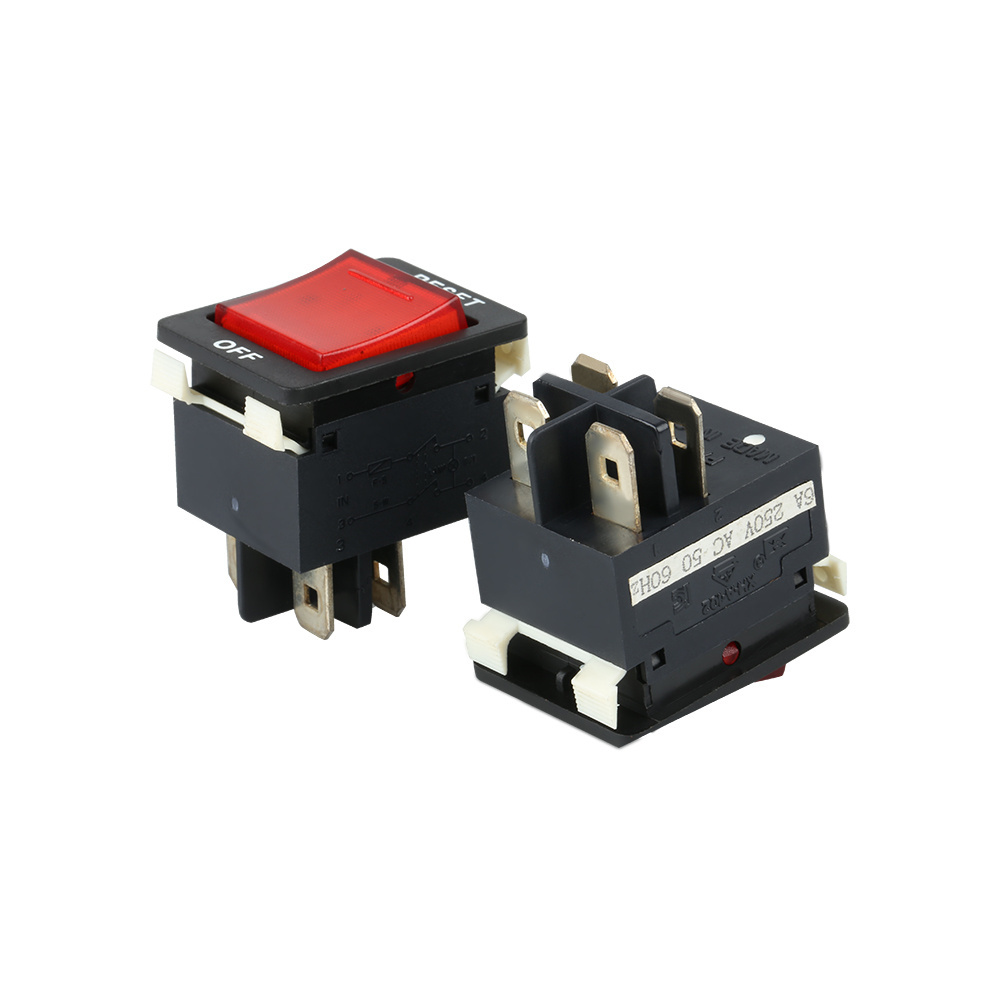

16a 4 pins reset off oval motorcycle on off overload protector switch overload protection switch
|
Rating |
5A-20A AC250V /125V, DC50V; 50~60HZZ |
|
Interrupting Capacity |
Voltage Drop: Less than 0. 25Vac |
|
Voltage Drop |
Less than 0. 25V |
|
contact resistance |
< 35MΩ |
|
insulation resistance |
500VDC 1000MΩ Minute |
|
Dielectric strength |
1500VAC at 50hz/60hz for 1 Minute between all electrically isolated terminals |
|
endurance |
6000 operations at a rate of 6 operations per min |
|
Temperature Rise at Terminal Block |
Less than 25° C at 100% of Rated Current applied continuously at 25° C |
|
Contact Endurance |
125Vac*150% of Rated Current >500 Cycles |
|
material |
N ylon 66 copper silver-contacts |
|
Application |
Used for electronic equipment and appliance |
|
Calibration |
will continuosusly carry 100% of rating,may trip between 101% and 149%,but must trip at 150% of rating within one hour at +25C |
|
Typical Applications |
motors,transformers,household and office machines,instrumentation,surge protectors,power centers |
|
100% of Rated Current: Hold, No-Trip
150% of Rated Current: Trip in an hour
400% of Rated Current: 0.5-6s 500% of Rated Current: 0.3-2.8s 600% of Rated Current: 0.25-2s 800% of Rated Current: 0.2-1s 1000% of Rated Current: 0.15-0.8s |
|
Q1: Are you a factory or trader?
we are a factory.
Q2: Why choose your company?
1.more than ten years manufacture experience about more kinds of switch
2.good quality,competitive price,fast delivery time
3.more switch type choosed,such as keyboard switch,rotary switch,rocker switch, push button switch, slide switch,dip switch,micro switch,tact switch,ac/dc socket and connector.
4.Design and Develop new mould depends on clients requirement
5.The best after-sale service
6.Anytime you need help ,please contact with us we keep online all the time.
Q3: How to get the samples and quote the best price soon?
we need to know more details about the products you inquired,for example
what functions?what size?what rating?where the type to be used?
we free to offer the samples
Q4.How about the delivery time?
Gernally speaking it is need 2 weeks if your quantity below 10K pcs or it depends on your quantity to confirm the time.
Q5:How about the package of the goods?
we often package the goods more safty, both inner box and outside cartons
more related product details,please feel free to contact with us!
