- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Feejoy Technology
-
Model Number:
-
SM-20B
-
Type:
-
standard flange type
-
Material:
-
SUS304 or SUS316
-
Contact capacity:
-
5A/250VAC
-
Contact way:
-
one set SPDT
-
Junction box:
-
AL alloy baking IP65
-
Connection:
-
3inch x5kg/cm²(customized)
-
Working temperature:
-
-30~85℃
-
Suitable gravity:
-
0.55g/cm³
-
Installation method:
-
horizontal
-
Certification:
-
IECEE
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Feejoy Technology
-
Model Number:
-
SM-20B
-
Type:
-
standard flange type
-
Material:
-
SUS304 or SUS316
-
Contact capacity:
-
5A/250VAC
-
Contact way:
-
one set SPDT
-
Junction box:
-
AL alloy baking IP65
-
Connection:
-
3inch x5kg/cm²(customized)
-
Working temperature:
-
-30~85℃
-
Suitable gravity:
-
0.55g/cm³
-
Installation method:
-
horizontal
-
Certification:
-
IECEE
Product Description

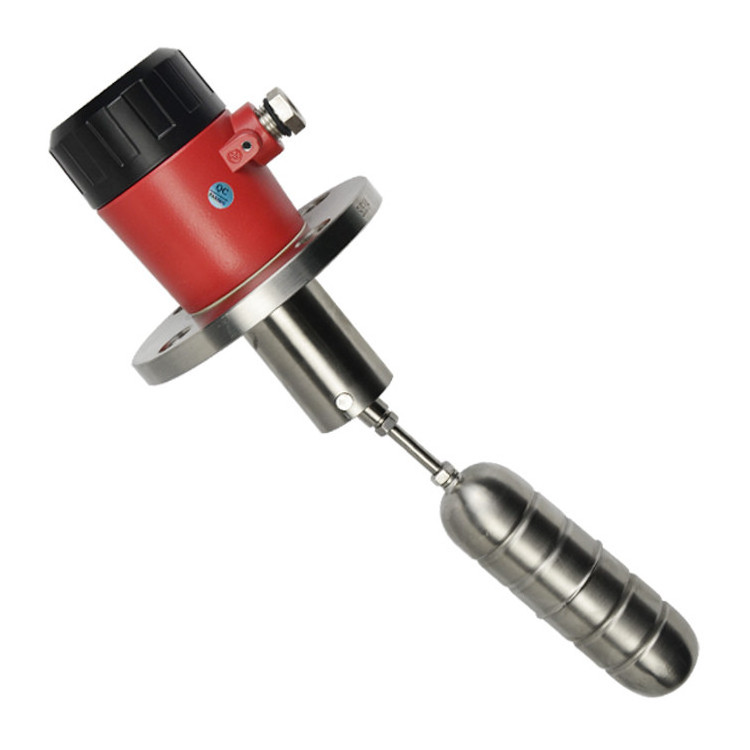

Side-mounted Float Level Switch
SM series side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products.
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 year
|
|
Certification
|
IECEE
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
Feejoy Technology
|
|
Model Number
|
SM-20B
|
|
Type
|
standard flange type
|
|
Material
|
SUS304 or SUS316
|
|
Contact capacity
|
5A/250VAC
|
|
Contact way
|
one set SPDT
|
|
Junction box
|
AL alloy baking IP65
|
|
Connection
|
3inch x5kg/cm²（customized）
|
|
Working temperature
|
-30~85℃
|
|
Suitable gravity
|
0.55g/cm³
|
|
Installation method
|
horizontal
|
Packing & Delivery
inner formed material +cardboard box/wooden box for export
