Quick Details
-
Application:
-
Building insulation, Fire protection, sound separation, heat separation
-
Design Style:
-
Common
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huadeli
-
Model Number:
-
Grade A
-
Type:
-
Other Heat Insulation Materials, Roll, Board, Tube
-
Material:
-
Material fiberglass, Glass Fiber
-
Product Name:
-
Foil Faced Fiberglass Insulation With Aluminium Foil
-
Thickness:
-
25-150mm
-
Color:
-
Yellow, White, Pink, Brown or Customerize
-
Package:
-
Vacuum Woven Bag
-
Manufacturer:
-
Huadeli
-
Certificate:
-
ISO9001, ISO14001, CE
-
Price:
-
Factory price
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
NONE
-
Application:
-
Building insulation, Fire protection, sound separation, heat separation
-
Design Style:
-
Common
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huadeli
-
Model Number:
-
Grade A
-
Type:
-
Other Heat Insulation Materials, Roll, Board, Tube
-
Material:
-
Material fiberglass, Glass Fiber
-
Product Name:
-
Foil Faced Fiberglass Insulation With Aluminium Foil
-
Thickness:
-
25-150mm
-
Color:
-
Yellow, White, Pink, Brown or Customerize
-
Package:
-
Vacuum Woven Bag
-
Manufacturer:
-
Huadeli
-
Certificate:
-
ISO9001, ISO14001, CE
-
Price:
-
Factory price

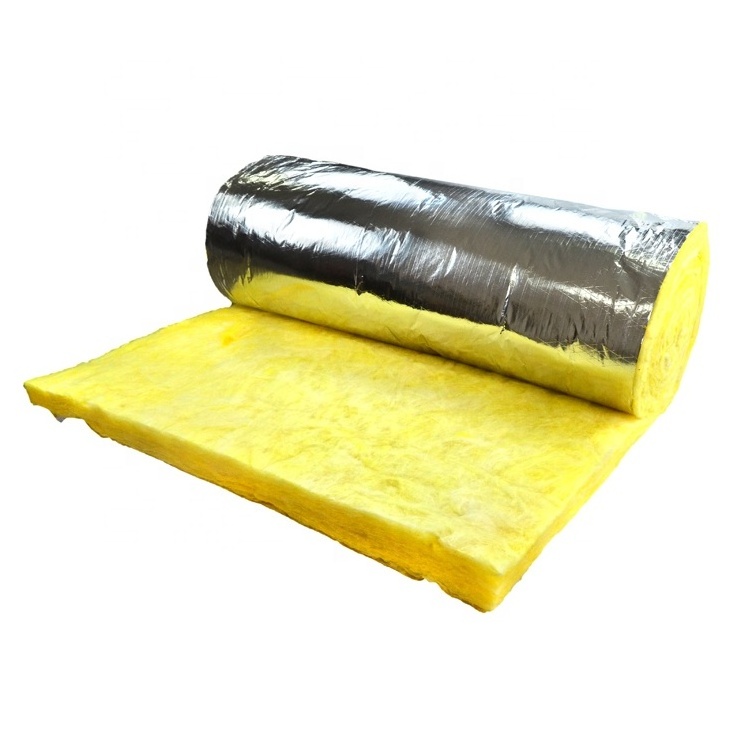

Foil Faced Fiberglass Insulation With Aluminium Foil
Introduction: Glass wool is an insulating material manufactured from molten glass spun and formed into mats, rolls and blankets of fine fibres coated with a binding resin. Glass Wool product has the characteristics of good heat insulation and sound absorption, low construction cost,energy-saving insulation, sound controlling and improving the indoor air quality.
Classification : mainly includes fiberglass wool blanket, fiberglass wool board and glass wool pipe. We also can provide high temperature glass wool board & blanket, environment-friendly fiberglass wool board & blanket, Insulation flexible tube for HVAC, Glasswool lamella and mat, Microfiber board and so on.
Types of facings : Aluminum Foil, Black Glass Tissue, Glass Cloth.
Product Range: Density 10 Kg/m3 to 48 Kg/m3 for glass wool rolls and thickness 12mm to 150mm
Temperature Range: Glass wool is suitable for applications ranging from minus 195 degree Celsius to plus 230 degree Celsius. For special applications up to 450 degree. Alumminum foil facing is suitable up to 120 degree Celsius.
Chemical Stability: Glass wool is chemically inert. Application does not cause or accelerate corrosion. Glass wool is rot proof and odorless.
Fire Safety: Glass wool is non-combustible in accordance with BS 476 incombustible, extremely low spread of flame, non emission of dense smoke and toxic gases, on depletion of oxygen (high oxygen index 70%).
Biological: Glass wool is inorganic. Does not encourage growth of fungi and vermin.
Dimensional: Glass wool is stable under varying conditions of temperature and humidity when applied correctly. Excellent tear strength and not prone to sagging or settling. Rigid slabs have inherently high compression resistance.
Usage: they are widely used for insulation , ventilation and the adjustment of air-conditioner in commercial industry and residential construction.
| Performance item | Performance parameter | Compliance with standards |
| Working temperature range | -100 to +450℃ | Working temperature range |
| Corrosion resistance | No chemical reaction | GB/T 17393 |
| Average fiber diameter | 5-7 | GB/T 5480 |
|
Slag ball content (particle size>0.25mm) |
≤0.3 | GB/T 5480 |
| Water content | ≤1.0% | GB/T 20313 |
| Moisture absorption rate | ≤5.0% | GB/T 5480 |
| Hydrophobic rate | ≥98% | GB/T 10299 |
| Thermal load shrinkage temperature | ≥300 ≥350 ≥350 ≥400 | GB/T 5480 |
|
Thermal conductivity k (W/m. ℃) |
≤0.038 | GB/T 10294 |
| Combustion performance grade | A1 non-combustible material | GB/T 8624-2012 |
| Bulk density(kg/m3) | 10-150kg/m3 |
| T hickness(mm) | 20-100mm |
| W idth(mm) | 0.4-1.2m |
| L ength(mm) | 3-30m (as customer's requirements) |
| Color | Yellow, White, Pink, Brown or customize |
| Port of Loading | Qingdao Port, China |
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
