Quick Details
-
Brand Name:
-
MEOKON
-
Model Number:
-
MD-SWF
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
16BAR
-
Product type:
-
MD-SWF Digital Water-pump Switch
-
Connecting Thread:
-
R1''
-
Load Capacity:
-
220V 10A 110V 5A
-
Pressure range:
-
0-10Bar
-
Shell:
-
Engineering Plastic
-
Application:
-
Water
-
Mounting:
-
Radial Direction Mounting
-
Supply:
-
110V-120V 220-240VAC
-
Weight:
-
0.8Kg
-
Max. Power:
-
1.1Kw(220-240V) 0.75Kw(110-120V)
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220-240v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MEOKON
-
Model Number:
-
MD-SWF
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
16BAR
-
Product type:
-
MD-SWF Digital Water-pump Switch
-
Connecting Thread:
-
R1''
-
Load Capacity:
-
220V 10A 110V 5A
-
Pressure range:
-
0-10Bar
-
Shell:
-
Engineering Plastic
-
Application:
-
Water
-
Mounting:
-
Radial Direction Mounting
-
Supply:
-
110V-120V 220-240VAC
-
Weight:
-
0.8Kg
-
Max. Power:
-
1.1Kw(220-240V) 0.75Kw(110-120V)

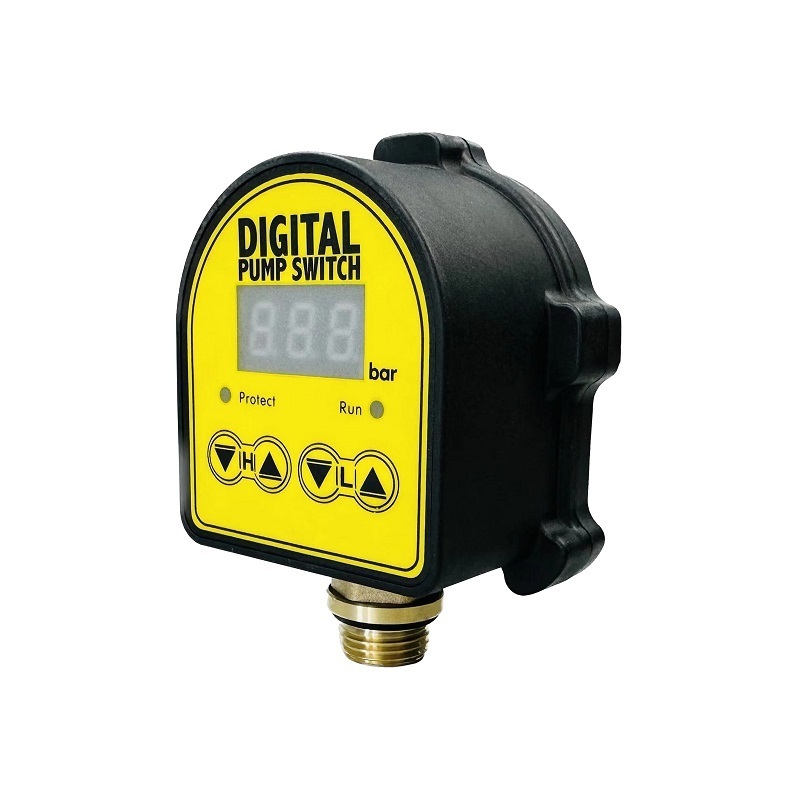

MD-SWF is an intelligent control for water pump, combined with years of development experience and application experience, and ahead of mechanical control and electronic control .
1.Electric swith used in water systems,start and stop the pump automatically
2.Examining the water automatically,stop the pump in the case of water shortage
3. Running automaticly when the water flow.
4 .Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.
|
Product Name |
MD- SWF |
|
Rated voltage |
220V, 240V |
|
Frequency |
50/60Hz |
|
Max.current |
10A |
|
Max.power |
1.1KW 1.5KW |
|
Max.working pressure |
16bar |
|
Connection thread |
G1/4, G1/2, G3/8 |
|
Protection rating |
IP65 |
|
Max.working temperature |
60 ℃ |
Advantages :
•Easy operation, matching with differnent water pumps
•Three functions on one set: Instant pressurization/Timing water supply/down pressurization.
•Different functions for different applications.
•High precision and intelligent, Richer human-computer interaction
FEATURES :
-
LCD display: pressure, flow, temperature, operation, leakage, fault display
-
High-precision flow reading(minimum 1.5L/min), large flow channel design (maximum 7 tons / hour)
-
Sand prevention structure and antimagnetic design to keep long-trem service
-
Starting value setting automatically: automatically adjust the starting value to avoid stopping working in high building application
-
More protection: water shortage protection, rust protection, antifreeze protection, overload protection leakage alarm
TECHNICAL SPECIFICATIONS:
|
Product Name |
MD- SWF |
|
Rated V oltage |
220V-240V 110V-120V |
|
Frequency |
50/60Hz |
|
Max. C urrent |
10 A |
|
Max. P ower |
1.1kw(220V-240V) 0.75kw(110V-120V) |
|
Starting P ressure S etting |
0-10bar |
|
Max. W orking P ressure |
10bar |
|
Connection T hread |
R1" |
|
Protection R ating |
IP65 |
|
Max. W orking T emperature |
60℃ |
