Quick Details
-
Model Number:
-
N/A
-
Thickness:
-
0.1-70mm
-
Size:
-
customized
-
density:
-
25-330kg/M3
-
features:
-
Insulation
-
HS Code:
-
3921199000
-
Advantage:
-
Heat Preservation
-
Application:
-
foam tape,sealing
-
Raw material:
-
ldpe
-
Quality:
-
High-quality
-
Feature:
-
Waterproof
-
Usage:
-
Widely
-
MOQ:
-
500KG
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thermalsoft
-
Model Number:
-
N/A
-
Thickness:
-
0.1-70mm
-
Size:
-
customized
-
density:
-
25-330kg/M3
-
features:
-
Insulation
-
HS Code:
-
3921199000
-
Advantage:
-
Heat Preservation
-
Application:
-
foam tape,sealing
-
Raw material:
-
ldpe
-
Quality:
-
High-quality
-
Feature:
-
Waterproof
-
Usage:
-
Widely
-
MOQ:
-
500KG
|

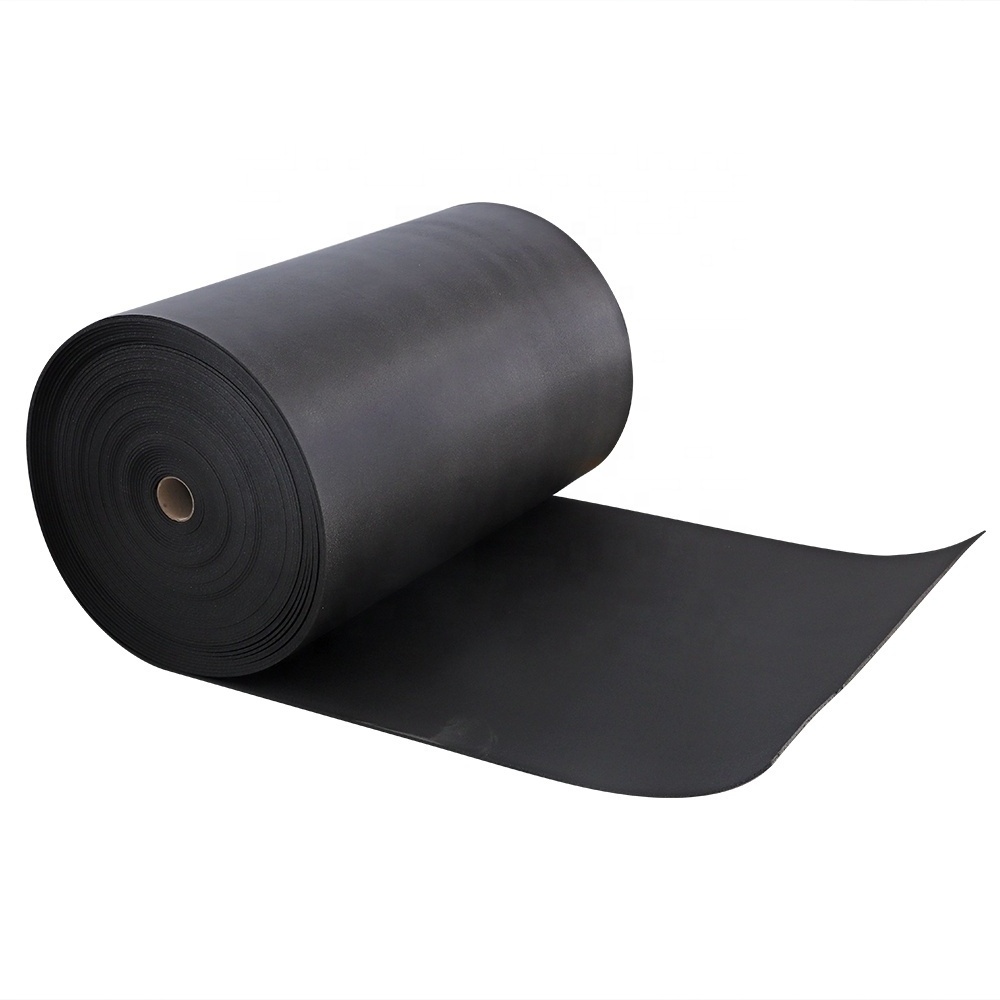

Foam Type: IXPE FOAM / IXLPE FOAM
|
|
|
|
|
||||
|
Property
|
|
Standard
|
Unit
|
Value
|
||||
|
Density
|
|
-
|
Kg/m³
|
66.70
|
||||
|
Tensile Strength
|
Transverse
|
ISO-1798
|
MPa
|
0.54~0.55
|
||||
|
|
Longitudinal
|
|
|
0.64~0.65
|
||||
|
Elongation
|
Transverse
|
ISO-1798
|
%
|
203.70~232.70
|
||||
|
|
Longitudinal
|
|
|
253.90~283.40
|
||||
|
Tearing Strength
|
Transverse
|
ISO-8067
|
Kn/m
|
3.47~3.68
|
||||
|
|
Longitudinal
|
|
|
4.28~4.34
|
||||
|
Operating Temperature Range
|
|
Internal
|
°C
|
(-40，+80)
|
||||
|
Water Absorption % Volume (Maximum)
|
|
Internal
|
%
|
0.30
|
||||
|
Thermal Conductivity
|
|
JIS A1412-2
|
W/mK
|
0.065
|
||||
|
Shore - C
|
|
ASTM D2240
|
°C
|
40
|
||||
|
Flammability
|
|
FMVSS302
|
mm/min
|
-
|
||||
Performance
Heat Insulation
Single foaming structure can reduce the loss of heat between air convection, suitable for making heat preservation pipes and boards.
Waterproof
Closed-cell foam, non-water-absorbing, moisture-proof.
Shock absorption
Soft texture and good resilience enable foam to have a shock absorption effect and play a protective role.Semi-hard quality foams have good rebound capabilities after strong impact.
Sound absorption
Good sound and noise absorption capability.
Fire retardancy
This product has fire-blocking and smoke-reducing property, when burned, its density is very low and doesn't melt, without any small fire ball left and with the merit of self-extinguishing.
Low conductivity factor
Conductivity of this material is 0.032 w / mk at an average° C. As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cos
t.
Application
Foam tape
IXPE Foam for Photovoltaic tape is a classical cases in our projects. We give a professional solution as followings. IXPE foam with density of 67kg/m3, 1mm, black or white, after gluing, and coated with PE flm on surface, it will be made into the tape with of good tensile property.
