Quick Details
-
Model Number:
-
VQ4
-
User Capacity:
-
2000
-
Face:
-
2000
-
Fingerprin(optional):
-
10000
-
Password:
-
2000
-
Card:
-
2000
-
Logs:
-
200000
-
RFID card supported(optional):
-
125kHz EM / 13.56MHz Mifare
-
Authentication modes:
-
≤ 0.3 second [1:N]
-
CPU:
-
Dual-core A7-1.2 GHz
-
Ambient light:
-
0-50000 lux
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hysoon
-
Model Number:
-
VQ4
-
User Capacity:
-
2000
-
Face:
-
2000
-
Fingerprin(optional):
-
10000
-
Password:
-
2000
-
Card:
-
2000
-
Logs:
-
200000
-
RFID card supported(optional):
-
125kHz EM / 13.56MHz Mifare
-
Authentication modes:
-
≤ 0.3 second [1:N]
-
CPU:
-
Dual-core A7-1.2 GHz
-
Ambient light:
-
0-50000 lux

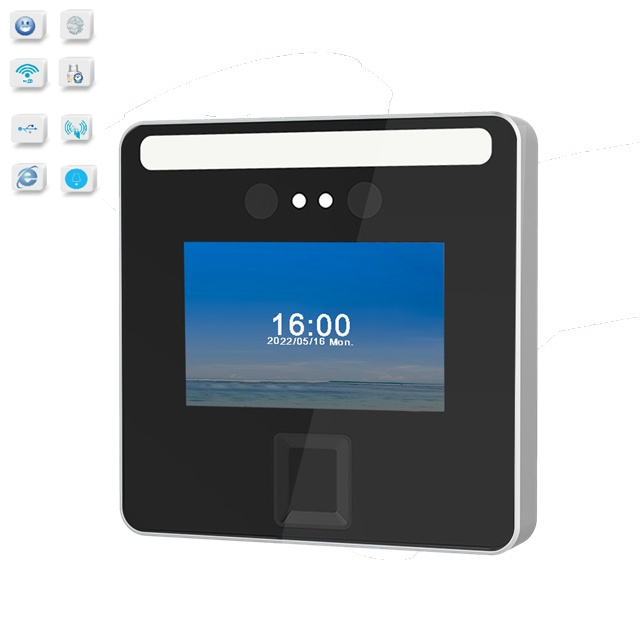

Model:VQ4
Visible Light Indoor Facial Recognition
CMOS Ultra Wide Dynamic Detection + Capture + Recognition
Dual-Core 1.2GHZ, RAM 256MB, ROM 256MB
4" IPS touch screen
2,000 faces
10,000 fingerprints
2,000 cards
2,000 passwords
200,000 logs
TCP/IP, USB host, USB slave, ID card module, WiFi, wiegand in&out, WiFi
Applicable scenes: Pedestrian passages in residential quarters, office buildings, schools, government agencies, tourist attractions, factory sites, etc.
Main features: Face recognition opens, experience smooth Face recognition attendance application opens IO signal control Support offline use support access card, ID card
Metal housing, Waterproof IP65
Product Description
Specification
|
Model
|
VQ4
(Metal housing）
|
|
|
|
|||
|
Max. user
|
2000
|
|
|
|
|||
|
Face template capacity
|
2000
|
|
|
|
|||
|
Fingerprint capacity
|
10000
|
|
|
|
|||
|
Log capacity
|
200000
|
|
|
|
|||
|
Password capacity
|
2000
|
|
|
|
|||
|
Card capacity (optional)
|
2000
|
|
|
|
|||
|
RFID card supported(optional)
|
125kHz EM / 13.56MHz Mifare
|
|
|
|
|||
|
WiFi
|
Support
|
|
|
|
|||
|
Authentication modes
|
Face / Fingerprint / Password / Card
|
|
|
|
|||
|
Verification time
|
＜0.5s
|
|
|
|
|||
|
CPU
|
Dual-core A7-1.2 GHz
|
|
|
|
|||
|
Ambient light
|
0-50000 lux
|
|
|
|
|||
|
Image sensor
|
Special stereo dual sensor, detection range up to 200cm (liveness detection 50cm~100cm)
|
|
|
|
|||
|
LCD display
|
4" IPS 800*480 pixel (Capacitive touchscreen)
|
|
|
|
|||
|
Interface
|
Wifi, USB host, USB slave, GND, PUSH, NO, NC, COM
|
|
|
|
|||
|
Voice instruction
|
16-bit Hi-Fi voice & sound indication
|
|
|
|
|||
|
Language
|
English, Chinese, etc.
|
|
|
|
|||
|
Power source
|
DC 12V/2A
|
|
|
|
|||
|
Operating temperature
|
0℃ ~ 45℃
|
|
|
|
|||
|
Operating humidity
|
20% ~ 90%RH
|
|
|
|
|||
Packing & Delivery
|
Dimensions (mm)
|
137 x 137 x 27
|
Weight (kg)
|
0.59
|
|||
|
Quantity / carton
|
10 units
|
Gross weight/carton (kg)
|
6.8
|
|||
|
Carton size (mm): 486 x 378 x 490
|
|
|
|
|||
