Quick Details
-
Thickness:
-
3-300mm
-
Size:
-
Custom Size
-
Product name:
-
hard plastic plates 20mm thickness hdpe sheet
-
Certificate:
-
ISO 9001:2008
-
Molecular weight:
-
3 million to 9 million
-
Density:
-
0.92-0.98g/cm3
-
Color:
-
black, white, yellow, green, blue, any color is available
-
Elongation at break:
-
≥280
-
Compression strength:
-
≥32Mpa
-
Hardness Shore:
-
D65
-
Wear consumption:
-
1.3mg
-
Temperature variations:
-
-80℃~80℃
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QIYUAN
-
Model Number:
-
HDPE sheet/UHMWPE sheet
-
Thickness:
-
3-300mm
-
Size:
-
Custom Size
-
Product name:
-
hard plastic plates 20mm thickness hdpe sheet
-
Certificate:
-
ISO 9001:2008
-
Molecular weight:
-
3 million to 9 million
-
Density:
-
0.92-0.98g/cm3
-
Color:
-
black, white, yellow, green, blue, any color is available
-
Elongation at break:
-
≥280
-
Compression strength:
-
≥32Mpa
-
Hardness Shore:
-
D65
-
Wear consumption:
-
1.3mg
-
Temperature variations:
-
-80℃~80℃

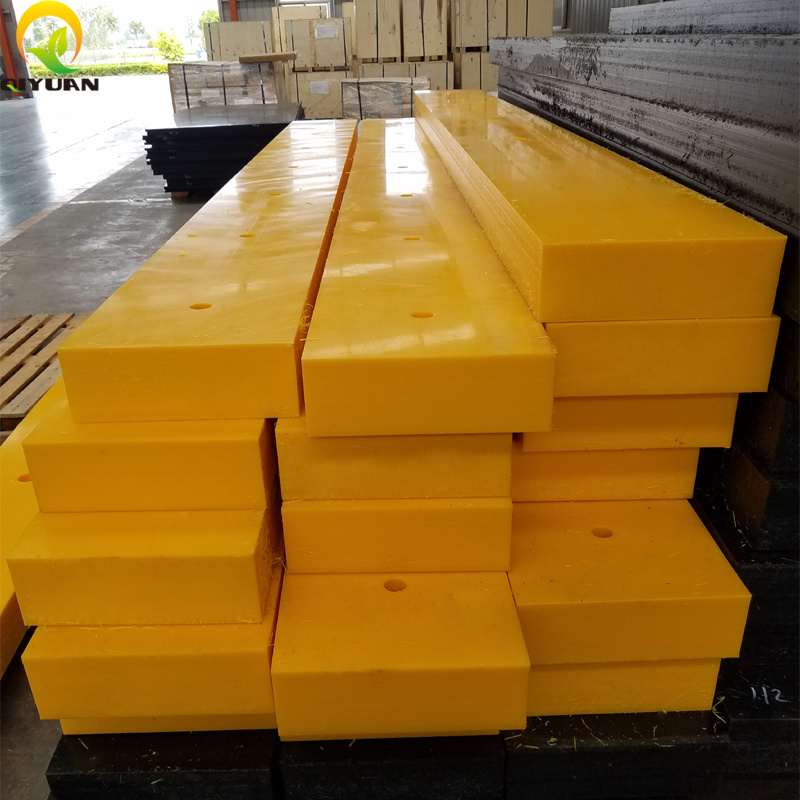

hard plastic plates 20mm thickness hdpe sheet
UHMWPE SHEET: We can manufacture different UHMWPE Sheet according to different requirements with different application . Like anti-UV, fire-resistant,anti-static and with other characters. Best quality with
good surface and color make our UHMWPE sheet more and more popular all over the world .
HDPE SHEET: We offer excellent sliding properties and abrasion/wear resistance due to its low coefficient of friction.HDPE sheet is very tough and impact resistance,even at low temperature,it is light weight,easy to weld but difficult bond.
General Properties of UHMW-PE pad
| Property | Test Method | Reference rang | Unit |
| Molecular Weight | 3-9 million | g/mol | |
| Density | ISO 1183-1:2012/DIN53479 | 0.92-0.98 | g/cm3 |
| Compression Strength | ISO 604:2002 | ≥32 | Mpa |
| Tensille Strength | ISO 527-2:2012 | ≥22 | Mpa |
| Elongation at break | ISO 527-2:2012 | ≥280 | % |
| Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.18 | |
| Notched impact strength(Charpy) |
ISO179-1:2010/GB/T 1043.1-2008 |
≥100 | kJ/m2 |
| Vicat softing point | ISO306:2004 | ≥80 | ℃ |
| Hardness Shore-D | ISO 868:2003 | 61-66 | D |
Features of UHMWPE/ HDPE sheet:
1. Best shock resistance even in low temperature
2. Low frictional factor, and well sliding bearing material
3. Lubricity (no caking, in adhesion)
4. Best chemical corrosion resistance and stress craze resistance
5. Excellent machinery process ability
6. Lowest water absorption
7. Paragon electric insulativity and anti-static behavior
8. Nice high energy radioactive resistance
9. Abrasive resistance which always have in thermoelectricity polymer
Application of polyethylene sheet:
International standard pallets with plastic film for polyethylene plastic sheet
please tell us as following, we will suggest you most suitable and professional suggestion of the products
- May I know what kind of work you want to do ?
- What material do you want?UHMWPE or HDPE?
- What size and thickness of the pad do you want?
- Any technical questions will be answered as soon as possible
