Quick Details
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTX
-
Warranty Time:
-
2 YEARS
-
CATV Work wavelength:
-
1260~1620nm
-
Optical fiber connector:
-
SC/APC
-
Output impedance:
-
75
-
Work bandwidth:
-
45~1050MHz
-
RF tie-in:
-
F-Female
-
Work temp:
-
-20~+55
-
Product name:
-
1260~1620nm passive node FTTH 1550nm Optical Receiver
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
SR100
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTX
-
Warranty Time:
-
2 YEARS
-
CATV Work wavelength:
-
1260~1620nm
-
Optical fiber connector:
-
SC/APC
-
Output impedance:
-
75
-
Work bandwidth:
-
45~1050MHz
-
RF tie-in:
-
F-Female
-
Work temp:
-
-20~+55
-
Product name:
-
1260~1620nm passive node FTTH 1550nm Optical Receiver

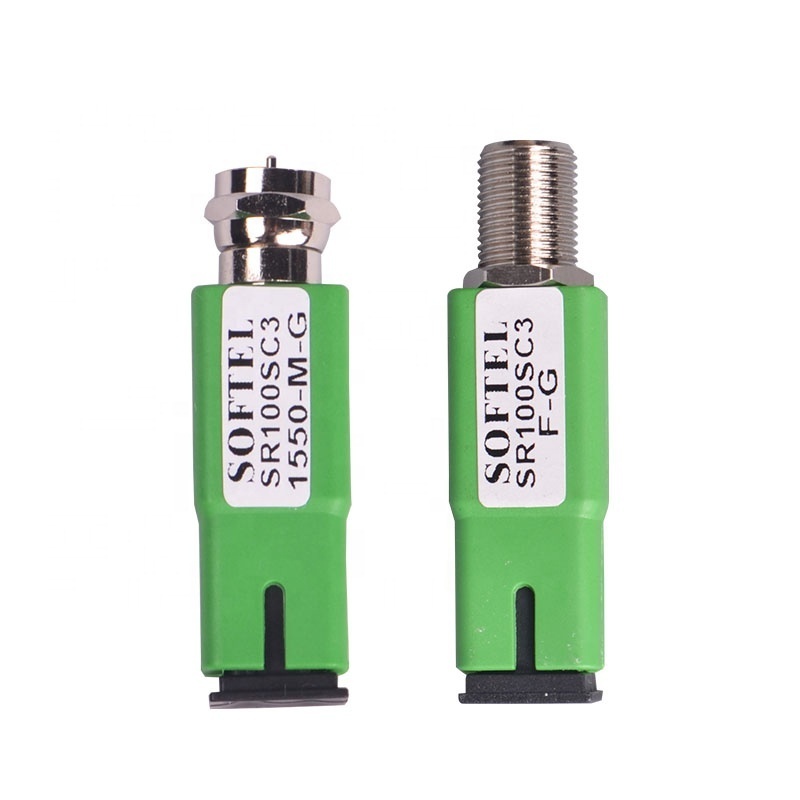

1260~1620nm passive node FTTH 1550nm Optical Receiver
1.0 PRODUCT DESCRIPTION
SR100 series CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=68dBuV, economic, flexible application integration, application of fiber to the home network. There are five kinds of model selection:
SR100, SR100F : CATV operating wavelength 1260~1620nm.
SR100-WD : Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating
Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the
ONU of EPON, GPON.
SR100-WF, SR100F-WF : built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV
operating wavelength 1550nm.
2.0 PRODUCT FEATURE
1.No Power required
2.Work bandwidth 45~1050MHz
3.Output Level=68dBμV (Pin=-1dBm)
3.0 MAIN APPLICATION
CATV FTTH
Integration of three networks
FTTH PON
4.TEST DATA
5.TECHNICAL INDEX
7 NOTE
1. SR100, SR100-WF, SR100F, SR100F-WF and set top box (STB) of the RF input port directly connected. SR100-WD for user wiring box.
2. When using the RF connector, and the RF input interface must be tightened to STB. Otherwise the ground is bad and will cause high frequency segments Digital TV signals MER degradation.
3. Keep the optical connector clean, the bad link will cause too low RF output level.
