Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
- Product Details
- {{item.text}}
Quick Details
-
light source:
-
He-Ne laser
-
wavelength:
-
0.6328 microns
-
Dispersion method:
-
Wet dispersion
-
Detection angle:
-
135 degrees
-
testing report:
-
EXCEL/PDF
-
Instrument size:
-
1000*330*320mm
-
Instrument weight:
-
38kg
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Chongqing TOP
-
light source:
-
He-Ne laser
-
wavelength:
-
0.6328 microns
-
Dispersion method:
-
Wet dispersion
-
Detection angle:
-
135 degrees
-
testing report:
-
EXCEL/PDF
-
Instrument size:
-
1000*330*320mm
-
Instrument weight:
-
38kg

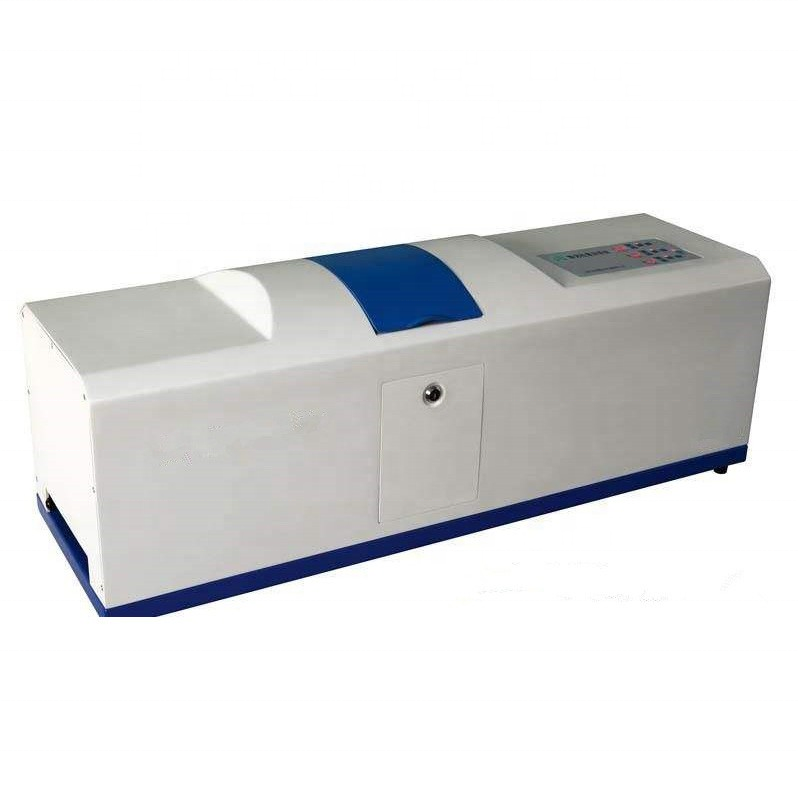

PTT Laser Particle Size Analyzer
The PTT laser particle size analyzer adopts the full-scale Mie scattering theory, fully considering the optical properties of the measured particles and the refractive index of the dispersion medium, and inverts the particle size distribution of the particle group according to the changes in the scattered light intensity of the particles of different sizes at various angles data. It is suitable for particle size measurement and analysis of various powders, suspensions and emulsions, and has been widely used in enterprises and institutions such as chemical industry, pharmaceuticals, cement, new materials, ceramics, soil, and universities, scientific research departments, and The PTT series of laser particle size analyzers have dry, wet and dry and wet applications, spray, particle image, dust morphology, online detection of more than 20 models for users to choose, and meet the relevant requirements of ISO13320, GMP, and FDA/21CFR11..
The PTT series laser particle size analyzer uses gas laser light source, which has short wavelength, narrow line width, good stability, and a service life of more than 25,000 hours. The photoelectric detection system has a unique design and high sensitivity. It has one main detector and multiple auxiliary detectors. It is arranged in a non-uniform cross three-dimensional sector matrix, which fully guarantees the comprehensiveness of signal detection. The optical path adopts a full-range design, and the convergent optical path is unique, which reduces the Fourier lens group, which makes the measurement range wider and higher resolution. The automatic centering system guarantees the accuracy and reliability of the measurement results. The ultrasonic dispersion system of the PTT series laser particle size analyzer can fully disperse the tested sample. Even particles with super agglomeration can be fully dispersed to obtain true particle size distribution data. PADMAS Particle Diameter Measure & Analysis System has powerful functions. The test data can be processed by averaging, statistics, comparison and mode conversion. It has differential distribution, cumulative distribution, standard grading, RR distribution, custom grading, and Multiple formats such as item grading and quantity
distribution.
There are particle size distribution graphs and particle size data charts in the test report. There are characteristic parameters such as D10, D50, D90, average particle size, volume specific surface area, weight specific surface area, etc. There are four custom points that can be input as needed. Granularity data can be saved and printed. Granularity distribution graphs and granularity data charts can be saved as pictures, EXCEL, PDF formats, and can be used interactively with WORD
distribution.
There are particle size distribution graphs and particle size data charts in the test report. There are characteristic parameters such as D10, D50, D90, average particle size, volume specific surface area, weight specific surface area, etc. There are four custom points that can be input as needed. Granularity data can be saved and printed. Granularity distribution graphs and granularity data charts can be saved as pictures, EXCEL, PDF formats, and can be used interactively with WORD
|
Instrument model
|
PTT-600
|
PTT-800
|
PTT-1200
|
||
|
Measurement range
|
0.1~600um
|
0.05~800um
|
0.02~1200um
|
||
|
light source
|
He-Ne laser
|
|
|
||
|
wavelength
|
0.6328 microns
|
|
|
||
|
Dispersion method
|
Wet dispersion
|
|
|
||
|
Accuracy error
|
〈±1% (National Standard Material D50)〉
|
|
|
||
|
Repeatability deviation
|
〈±1% (National Standard Material D50)〉
|
|
|
||
|
Detection angle
|
135 degrees
|
|
|
||
|
Measuring range
|
0.02-1000 microns default grading 1-130 or custom grading
|
|
|
||
|
testing report
|
EXCEL/PDF
|
|
|
||
|
Instrument size
|
1000×330×320mm
|
|
|
||
|
Instrument weight
|
38kg
|
|
|
||
1.
1.Fully Automatic Karl Fischer Water Content Tester
TP-2100
2.
Digital Karl Fischer Water Content Tester TP-6A
3.
Kinematic Viscosity Tester VST-2000
4.
Kinematic Viscosity Tester TPV-8
5.
Kinematic Viscosity Tester VST-3000
6.
Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.
Fully Automatic Surface/Interface Tension Tester IT-800
8.
Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.
Fully Automatic Open Cup Flash Point Tester TPO-3000
10.
Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.
Digital Open Cup Flash Point Tester TPO-100
12.
Digital Closed Cup Flash Point Tester TPC-100
13.
Cloud Point & Pour Point Tester PT-2000
|
MOQ
|
1 Set
|
|
Trade Terms
|
EXW, FOB, CIF, CFR
|
|
Payment Terms
|
T/T, L/C
|
|
Port of Loading
|
Any Port of China
|
|
Packing Method
|
Internaional Standard Wooden Case
|
|
Transportation Method
|
By Sea, By Land, By Air, By Express
|
|
Supply Capability
|
100 Sets/Month
|
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
