- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
NGS2
-
Dimension(L*W*H):
-
36058mmX2438mmX2591mm
-
Weight:
-
20-50t
-
Warranty:
-
1 Year
-
LPG station:
-
filling station
-
LPG filling station:
-
mobile LPG station
Quick Details
-
Capacity:
-
10m3-50m3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UNIWEIGH
-
Model Number:
-
NGS2
-
Dimension(L*W*H):
-
36058mmX2438mmX2591mm
-
Weight:
-
20-50t
-
Warranty:
-
1 Year
-
LPG station:
-
filling station
-
LPG filling station:
-
mobile LPG station
MORE INFO PLEASE CONTACT BELOW
ATTN: Michael Zhu
Email: uniweigh
yeah.net or uniweigh
gmail.com
|
NGS2 LPG skid dispenser/ mobile LPG filling station
|
|
FEATURES
1. Filling Method: Flow meter filling.
2. Control Mode: Manual setting, automatic micro switch control.
3. Enviromental temperature:-40C~+55C.
4. Single pump flow rate:5~50L/min.
5. Accuracy:0.5%.
6. Designed pressure: 2.5MPa.
7. Input working pressure:1.6Mpa.
8. Output working pressure:2.5MPa.
9. Single filling amount range: 0-9999.99.
10. Accumulate amount range: 0-999999.99.
11. Unit price range: 00.10-99.99
12. Working power: 220V.
13. Flow limit valve: >60L/min
14. Suitable medium: LPG.
15. Net weight for double nozzle: 260kg.
16. Stop valve force: 400-600N.
Function description:
Automatic control of solenoid valves of all pipes on the skid.
Achieve submersible pump unloading or combined unloading function.
Achieve one-pump one dispenser or one pump two dispenser simultaneous filling function.
|

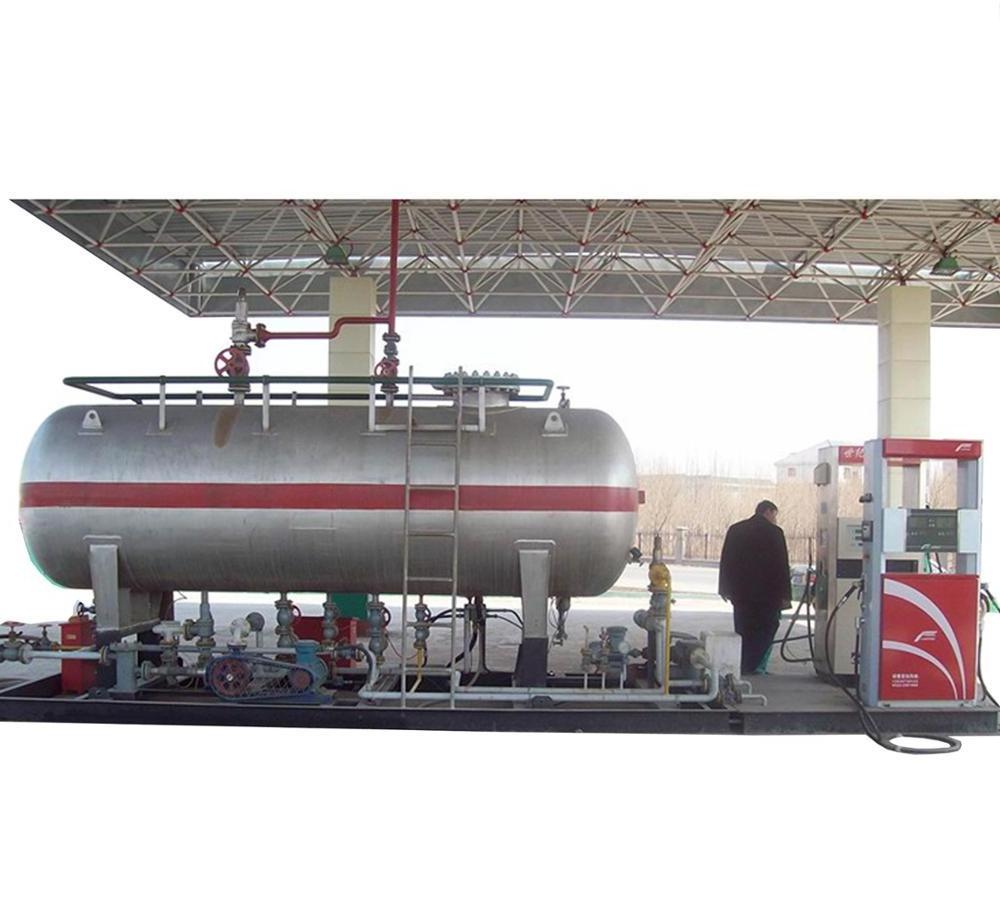

Double lpg pump skid with storage tank
LPG pump
Dispenser
LPG TANK TRAILER
Other LPG filling station
Other LPG filler
LPG pump
Other LPG weight filler
LPG dispenser
LPG storage tank semi trailer
LPG storage tank
MORE INFO PLEASE CONTACT BELOW
ATTN: Michael Zhu
Email: uniweigh
yeah.net or uniweigh
gmail.com
Warranty:
1 year for electronic parts.
