- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
Customization
-
After-sales Service Provided:
-
Video Technical Support
-
Application:
-
Steel Plate Surface Cleaning
-
I Beam shot blasting machine:
-
Beam Steel Products Line
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fengyao Brand
-
Weight (KG):
-
1000 KG
-
Dimension(L*W*H):
-
Customization
-
After-sales Service Provided:
-
Video Technical Support
-
Application:
-
Steel Plate Surface Cleaning
-
I Beam shot blasting machine:
-
Beam Steel Products Line

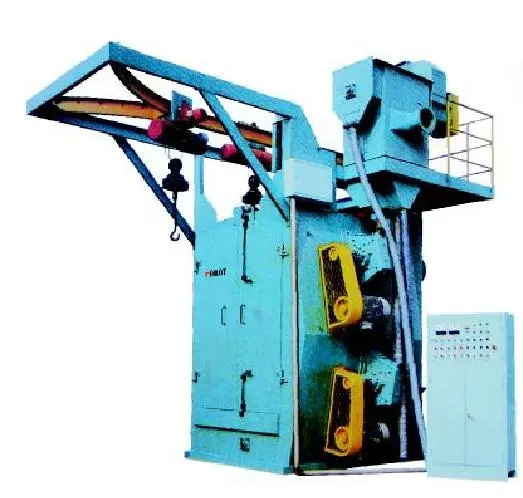

Q37 series hook type airless shot blasting machine is mainly used for surface cleaning and strengthening of steel structure parts,castings,aluminum alloy parts and other spare parts.It is widely used in foundry,forging,mechanical and steel industry.In particular,Q378 cleaner features no pit,double hook without rail exchanging,compact structure, and high productivity.
Technical parameters
| Item | Unit | Q376 | Q378 | Q3710 | Q3720 | Q3730 | Q3750 | Q3780 |
| Single Load | kg | 600 | 1000 | 1000 | 2000 | 3000 | 5000 | 8000 |
| blast quantity | kg/min | 200 | 250 | 250 | 250 | 250 | 250 | 250 |
| separation capacity | T/h | 25 | 30 | 30 | 45 | 45 | 60 | 60 |
| lifting capacity | T/h | 25 | 30 | 30 | 45 | 45 | 60 | 60 |
| Cleaning workpiece size | mm | 600*1100 | 800*1500 | 1000*1850 | 1400*2300 | 1600*2300 | 1600*2500 | 2000*3000 |
| Air volume | m3/h | 2800 | 6000 | 9000 | 15000 | 15000 | 18000 | 20000 |
| Total power | kw | 22 | 37 | 46 | 61 | 64 | 78 | 81 |
Accessories
1.Reply your inquiry in time.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more
than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
