Quick Details
-
Brand Name:
-
macbeyond
-
Model Number:
-
FMC-50
-
Accuracy:
-
0.2%
-
Repeatability:
-
<=0.07%
-
Medium:
-
fuel oil
-
Size:
-
50mm/2"
-
Flow Range(L/min):
-
38-380
-
Max.Working Pressure:
-
150PSI
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
macbeyond
-
Model Number:
-
FMC-50
-
Accuracy:
-
0.2%
-
Repeatability:
-
<=0.07%
-
Medium:
-
fuel oil
-
Size:
-
50mm/2"
-
Flow Range(L/min):
-
38-380
-
Max.Working Pressure:
-
150PSI
Product Description
Characteristics

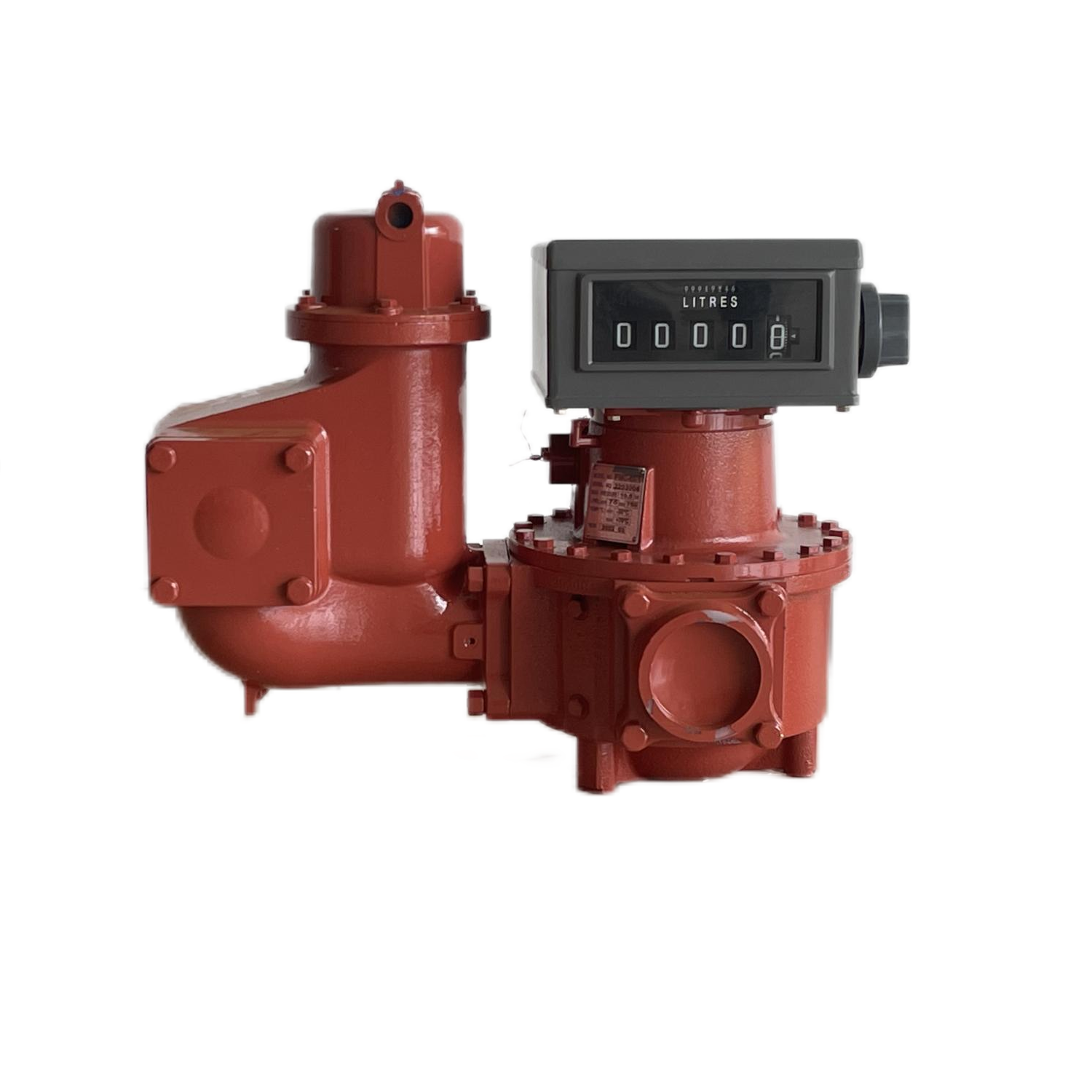

• FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
• Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc..
• Compact, versatile design can be readily fit into nearly all installations.
• Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
• Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
• Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc..
• Compact, versatile design can be readily fit into nearly all installations.
• Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
• Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
FMC-100 Meter with Register,Strainer & Air Eliminator
FMC-50 Meter with Register,Strainer & Air Eliminator
FMC-50 Preset Meter with Register,Preset Register, Preset Valve,Strainer, Air Eliminator & Printer
Application
Application includes: blending, batching, dispensing, inventory control and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
Model No. Description
Inlet & Outlet Installation
|
Specification
|
|
|
|
|||
|
Model
|
FMC-50
|
FMC-80
|
FMC-100
|
|||
|
Size
|
50mm/2”
|
80mm/3”
|
100mm/4”
|
|||
|
Flow Range(L/min)
|
38-380
|
75-750
|
150-1500
|
|||
|
Max.Working Pressure
|
150PSI
|
|
|
|||
|
Accuracy
|
±0.2%
|
|
|
|||
|
Repeatability
|
0.07%
|
|
|
|||
Packing & Delivery
|
Packaging
|
|
|
||
|
Model
|
FMC-50
|
FMC-80
|
||
|
Packaging
|
1pc/wooden case
|
|
||
|
Net Weight
|
42kgs
|
63kgs
|
||
|
Gross Weight
|
57kgs
|
70kgs
|
||
|
Size
|
59×34×57cm
|
59×34×57cm
|
||
Our Company
Introduction:
Shanghai Mac-beyond Machinery Co., Ltd has specialized in the manufacturing of first-class fueling equipment since the 1980's. We integrate design, development, production, sales, and technical service, to provide our customers the finest experience in product quality and customer service.
Our unsurpassed products include bulk flow meter, oil pump, fuel dispenser, LPG dispenser, fuel dispenser components, oil tank truck parts, and more. Mac-beyond places first-class quality at the top of our list, and works to continually provide the most innovative and advanced products on the market to date. Our products are durable, reliable, economical, and have received UL, CE and ISO90001 certifications. Our flow meter, oil pump, and fuel dispensers are exported to the United States, Europe, the Middle East, South East Asia, Africa and more. We also offer OEM & ODM services as well as customized designs according to your requirements.
Factory Picture
Warehouse Picture
Certifications
FAQ
If you are not sure of which product meet your requirement.
1 About flow meter -------what medium you are going to test ? What is the flow rate & Pipe diameter ?
2 About pump ----what kind of pump you need ? Rotary ? LPG ? Or others ? Power ?
3 About nozzle ---automatic or manual ? Flow rate ?
