Quick Details
-
Brand Name:
-
shantui
-
Model Number:
-
SD16
-
Dimension(Long * Breadth * High):
-
6104*3388*3032mm
-
Rated power:
-
120kw/2200rpm
-
Blade Capacity:
-
4.3 CBM
-
Blade Width:
-
3140 MM
-
Blade height:
-
1240 MM
-
Max. Blade Digging Depth:
-
430 MM
-
Max. Blade Lift Ground Clearance:
-
1041MM
-
Max.Output Rimpull:
-
280 KN
-
Implement Hydraulic System Pressure:
-
19 MPA
-
Color:
-
yellow
-
Product name:
-
Bulldozer
Quick Details
-
Machine Weight:
-
17 KG
-
Dozing Capacity:
-
7.5m³, 5m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
shantui
-
Model Number:
-
SD16
-
Dimension(Long * Breadth * High):
-
6104*3388*3032mm
-
Rated power:
-
120kw/2200rpm
-
Blade Capacity:
-
4.3 CBM
-
Blade Width:
-
3140 MM
-
Blade height:
-
1240 MM
-
Max. Blade Digging Depth:
-
430 MM
-
Max. Blade Lift Ground Clearance:
-
1041MM
-
Max.Output Rimpull:
-
280 KN
-
Implement Hydraulic System Pressure:
-
19 MPA
-
Color:
-
yellow
-
Product name:
-
Bulldozer

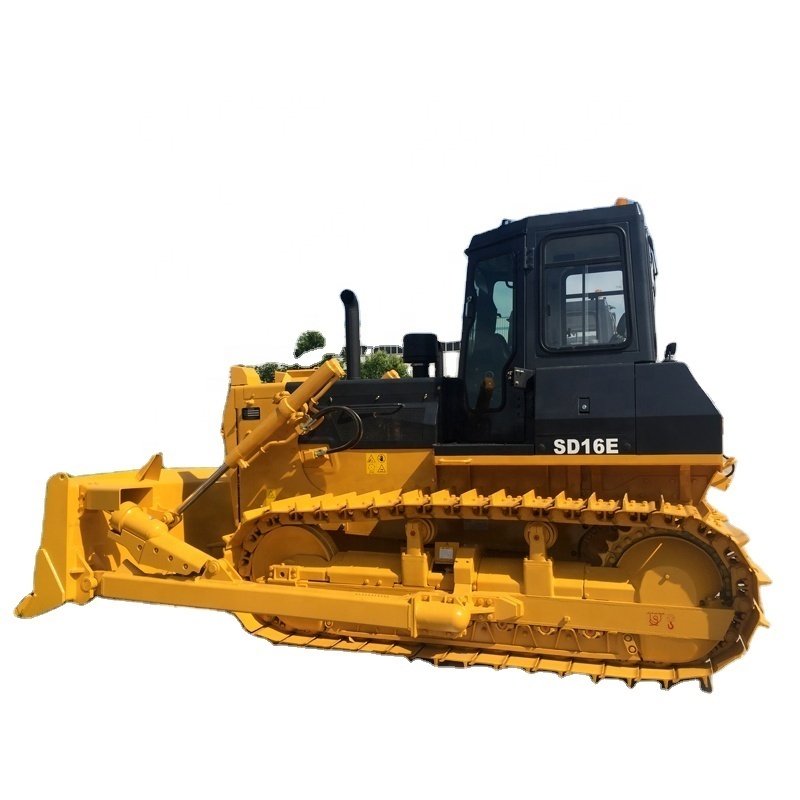

160HP bulldozer earth moving equipment Shantui SD16 with ripper
The SD16F forest bulldozer has been developed for operation in forests. The SD16F is equipped with a hydraulic drive system with
hydraulic control technology, a front-extending ROPS canopy, and an advanced structure, providing reliable performance and
convenient and flexible operation, and easily adapting it to operations in the forest.
hydraulic control technology, a front-extending ROPS canopy, and an advanced structure, providing reliable performance and
convenient and flexible operation, and easily adapting it to operations in the forest.
Product Description
Specification
|
Engine
|
Model & type
|
Weichai WD10G178E25;
water-cooled, in-line, 4-stroke injection direct |
|
|
||
|
|
Horsepower
|
Gross power: 131/175/1850 kW/HP/rpm //
Net power: 120/160/1850 kW/HP/rpm |
|
|
||
|
|
Number of cylinders
|
6-126 x 130 mm (bore x stroke)
|
|
|
||
|
|
Piston displacement
|
9.726 L
|
|
|
||
|
|
Min. fuel consumption
|
214 g/kW·h
|
|
|
||
|
|
Maximum torque
|
765 N·m@1300 rpm
|
|
|
||
|
Power
transmission system |
Torque converter
|
3-element, 1 stage, 1 phase
|
|
|
||
|
|
Transmission
|
Planetary gear type, power-shift, forced lubrication
|
|
|
||
|
|
Main drive
|
Spiral bevel gear, single-stage speed reduction,
splash lubrication |
|
|
||
|
|
Steering clutch
|
Lubricated, multi-disc, spring loaded, hand hydraulically separated,
inter-linking with steering brake
|
|
|
||
|
|
Steering brake
|
Lubricated, floating band structure, foot brake
with hydraulic booster |
|
|
||
|
|
Final drive
|
2-stage speed reduction of spur gear, splash lubrication
|
|
|
||
|
Travel speed
|
Gear
|
1st
|
2nd
|
3rd
|
||
|
|
Forward
|
0~3.29 km/h
|
0~5.82 km/h
|
0~9.63 km/h
|
||
|
|
Reverse
|
0~4.28 km/h
|
0~7.59 km/h
|
0~12.53 km/h
|
||
|
Undercarriage
system |
Type
|
Sprayed beam, suspended structure of equalizer
|
|
|
||
|
|
Carrier rollers
|
2 each side
|
|
|
||
|
|
Track rollers
|
6 each side
|
|
|
||
|
|
Track type
|
Assembled, single-grouser
|
|
|
||
|
|
Width of track shoes
|
510 mm
|
|
|
||
|
|
Pitch
|
203.2 mm
|
|
|
||
|
Hydraulic
System |
Maximum pressure
|
14 MPa
|
|
|
||
|
|
Pump type
|
Gear pump
|
|
|
||
|
|
Discharge
|
243 L/min
|
|
|
||
|
|
110 mm × 2
|
|
|
|
||
|
Blade
|
Blade Type
|
Straight-tilt
|
Angle
|
U- Blade
|
||
|
|
Dozing capacity
|
4.5 m 3
|
4.4 m 3
|
5.0 m 3
|
||
|
|
225 m 3 /h
|
225 m 3 /h
|
250 m 3 /h
|
|
||
|
|
Blade width
|
3388 mm
|
3970 mm
|
3556 mm
|
||
|
|
Blade height
|
1149 mm
|
1040 mm
|
1120 mm
|
||
|
|
540 mm
|
530 mm
|
540 mm
|
|
||
|
|
Lifting height of blade
|
1095 mm
|
1110 mm
|
1095 mm
|
||
|
Riipper
(Optional) |
Maximum digging depth
of 3-shank ripper |
572 mm
|
|
|
||
|
|
Maximum lift
above ground |
592 mm
|
|
|
||
|
|
Weight of 3-shank ripper
|
1667 kg
|
|
|
||
