You can control 8 PCs or other media devices which support HDMI output, USB Keyboard and mouse input with only 1 set of keyboard, mouse and monitor
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HKS0801A30
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8 Portas HDMI KVM Switch with IR Remote
-
Feature1:
-
with IR Remote/ RS232/ LAN
-
Switch Mode:
-
Hot-key/Push Button/Auto
-
HDMI Connector:
-
HDMI Type A
-
Product Type:
-
KVM Switch HDMI 8 port
-
HDMI version:
-
1.4V
-
EDID:
-
Yes
-
Feature 3:
-
Hot plug
-
Feature 2:
-
Can be placed in a 1U rack
Quick Details
-
Monitor Connections:
-
1 Ports
-
Resolution:
-
3840X2160
-
Brand Name:
-
TESmart
-
Model Number:
-
HKS0801A30
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8 Portas HDMI KVM Switch with IR Remote
-
Feature1:
-
with IR Remote/ RS232/ LAN
-
Switch Mode:
-
Hot-key/Push Button/Auto
-
HDMI Connector:
-
HDMI Type A
-
Product Type:
-
KVM Switch HDMI 8 port
-
HDMI version:
-
1.4V
-
EDID:
-
Yes
-
Feature 3:
-
Hot plug
-
Feature 2:
-
Can be placed in a 1U rack
Product Description

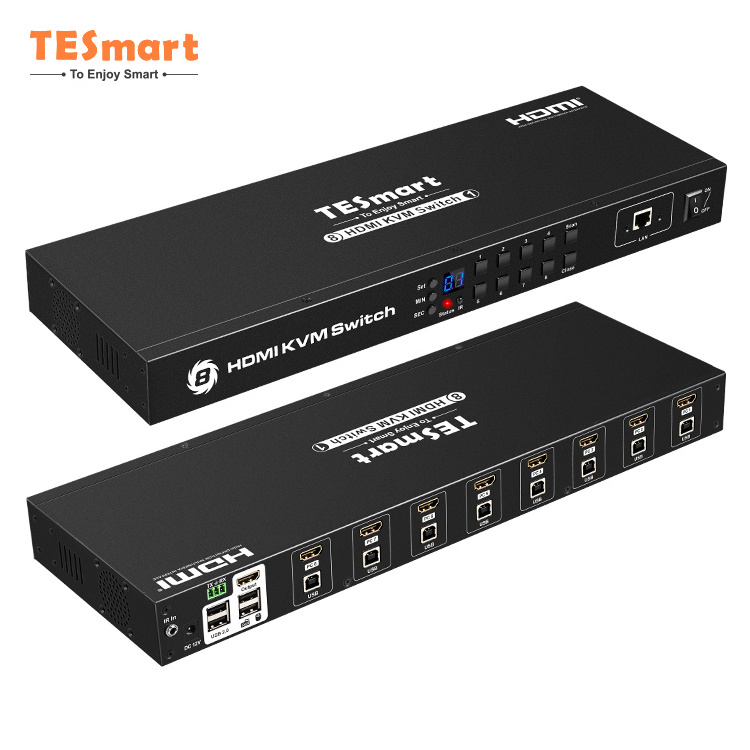

8 Port HDMI KVM Switch
Features:
1
.Using one USB console controls 8 HDMI computers
2
.Support Unix /Windows /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
3
.
With EDID emulators in every input ports, keep PCs always have correct display information
4
.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
5
.Support auto switching to monitor computers in a specified time interval
6
.Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
7
.Available to use keyboard without any delay after switch input sources
8
.Support resolution up to 3840*2160@30Hz
lWith extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just
as you have plug these devices directly to computer
9
.Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list:
1
*
8x1 HDMI KVM Switch
1
*
DC 12V 2A Power Adapter
1
*
IR Remote Control
1
*
IR Receiver Cable
1
*
3 Pins Connector (For RS232)
2
*
Rack-ears
1
*
Quick-Start Guide
Product Parameters
|
HKS0801A30
|
8x1 HDMI KVM Switch
|
|
||
|
Functionality:
|
|
|
||
|
Auto Scan
|
Yes
|
|
||
|
Port selection
|
Front panel buttons
|
Yes
|
||
|
|
Keyboard hotkeys
|
Yes
|
||
|
|
IR remote control
|
Yes
|
||
|
|
Console commands
|
RS232 / IP
|
||
|
Technical:
|
|
|
||
|
Max. Resolution
|
3840x2160@30Hz
|
|
||
|
Auto to get EDID
|
Yes
|
|
||
|
Data rate
|
10.2 Gbps
|
|
||
|
Auto scan interval
|
5~3600 Seconds
|
|
||
|
Beep Sound
|
On/Off
|
|
||
|
OSD
|
No
|
|
||
|
Supported OS
|
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
|
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Mechanical:
|
|
|
||
|
Chasing material
|
Metal
|
|
||
|
Product Dimensions
|
440 (L) x 150 (W) x 44.5 (H) mm
|
|
||
|
Item Weight
|
1800g
|
|
||
