Quick Details
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
0.55
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ST-H500
-
Model Number:
-
ST-H500
-
Voltage:
-
220V, 110V 220V 380V
-
Dimension(L*W*H):
-
1130x580x1100mm, 1130x580x1100mm
-
Weight (KG):
-
280 KG
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Ma
-
Core Components:
-
Gear, Motor, Gearbox
-
Taper of Spindle:
-
MT4
-
Swing Over Bed:
-
420mm
-
Distance between centers:
-
500mm
-
Max. Longitudinal Travel:
-
400mm
-
Max. Cross Travel:
-
200mm
-
Max. Driiling Capacity:
-
22mm
-
Max. End Milling Capacity:
-
28mm
-
Max. Face Mill Capacity:
-
80mm
Quick Details
-
Max. Length of Workpiece (mm):
-
500
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
0.55
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ST-H500
-
Model Number:
-
ST-H500
-
Voltage:
-
220V, 110V 220V 380V
-
Dimension(L*W*H):
-
1130x580x1100mm, 1130x580x1100mm
-
Weight (KG):
-
280 KG
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Ma
-
Core Components:
-
Gear, Motor, Gearbox
-
Taper of Spindle:
-
MT4
-
Swing Over Bed:
-
420mm
-
Distance between centers:
-
500mm
-
Max. Longitudinal Travel:
-
400mm
-
Max. Cross Travel:
-
200mm
-
Max. Driiling Capacity:
-
22mm
-
Max. End Milling Capacity:
-
28mm
-
Max. Face Mill Capacity:
-
80mm
Product Description

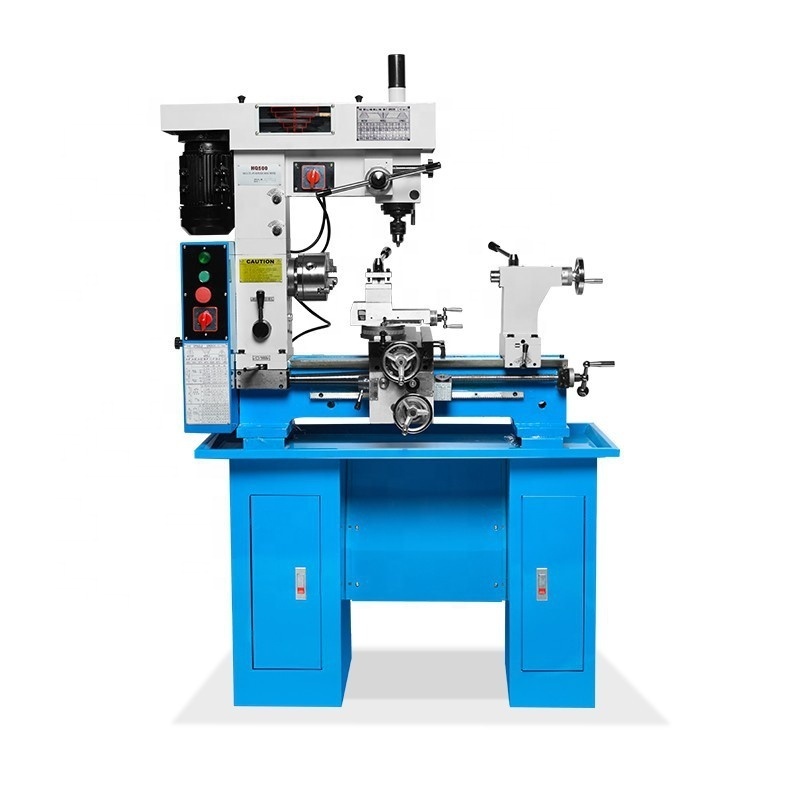

Machine Details
Machine Parameter
|
Swing Over Bed
|
420mm
|
|
Distance Between Centers
|
500mm
|
|
Max. Longitudinal Travel
|
400mm
|
|
Max. Cross Travel
|
200mm
|
|
Taper Of Spindle
|
MT4
|
|
Spindle Bore
|
28mm
|
|
Step Of Spindle Speed
|
7
|
|
Range Of Spindle Speed
|
160-1360rpm
|
|
Barrel Travel
|
70mm
|
|
Barrel Taper
|
MT3
|
|
Metric Thread Range
|
0.2-6mm
|
|
nch Thread Range
|
4-120 T.P.I
|
|
Longitudinal Range Of Automatic Feeding:
|
0.05-0.35mm (0.002 "-0.014 ")
|
|
cross range of automatic feeding
|
0.05-0.35mm (0.002 "-0.014 ")
|
|
Max Driiling Capacity
|
∅22mm
|
|
Worktable Size(L×W)
|
475×160mm
|
|
Max. End Milling Capacity
|
∅28mm
|
|
Max. Face Mill Capacity
|
∅80mm
|
|
Distance Between Spindle Center And Column
|
285mm
|
|
Distance Between Spindle And Worktable
|
306mm
|
|
Headstock Travel Of Up And Down
|
110mm
|
|
Spindle Taper
|
MT3
|
|
Step Of Spindle Speed
|
16
|
|
Range Of Spindle Speed
|
120-3000 rpm
|
|
Swivel Angel Of Headstock
|
±360º
|
|
Motor Power
|
550W
|
|
Packing Size
|
1130×580×1100mm
|
|
N.W/G.W
|
245kgs/280kgs
|
Application
Packing & Delivery
Packing
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
FAQ
Q: Are you trading company or manufacturer ? A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: Can you guarantee your quality? A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:What should I do if we are not able to operate the machine when we receive it? A:Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q: How could I get the spares on machines? A: We will send extra sets of easy broken spares and accessories etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q: Is there any installation direction after we received the machine? A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company? A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. The machine will have two years warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Q: Can you guarantee your quality? A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:What should I do if we are not able to operate the machine when we receive it? A:Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q: How could I get the spares on machines? A: We will send extra sets of easy broken spares and accessories etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q: Is there any installation direction after we received the machine? A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company? A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. The machine will have two years warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
