Quick Details
-
Hydraulic Pump Brand:
-
Other
-
Power:
-
148 KW, 148kw
-
Working hours:
-
322.6
-
Product name:
-
Wheel Loader
-
Moving Type:
-
Wheel Moving
-
Condition:
-
Low Working Hours
-
Keyword:
-
Front Loader
-
Model:
-
624K
-
After-sales Service Provided:
-
Video Technical Support
Quick Details
-
Year:
-
2018
-
Place of Origin:
-
Philippines
-
Machine Weight:
-
15614 - 15700 kg
-
Hydraulic Pump Brand:
-
Other
-
Power:
-
148 KW, 148kw
-
Working hours:
-
322.6
-
Product name:
-
Wheel Loader
-
Moving Type:
-
Wheel Moving
-
Condition:
-
Low Working Hours
-
Keyword:
-
Front Loader
-
Model:
-
624K
-
After-sales Service Provided:
-
Video Technical Support
Welcome to Senoc Point-Of-Sale Marketing !
Our company is DTI-registered with BNN 2954168 and is located in the Philippines.
We are reputable company You may verify the legitimacy of our company by common google search as well.

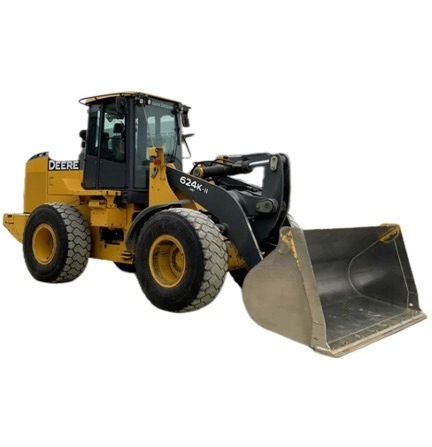

We have the widest choices of mostly second-hand John Deere Wheel Loader with different HP to suit your purpose and needs.
Selecting a John Deere for your operation is an important investment. You need a machine that provides straightforward, dependable performance to tackle any project on your farm or homestead as well as those you might want to do five years down the road.
John Deere Wheel Loaders are designed to provide high performance in a variety of applications while still being user- and maintenance-friendly.
Bucket
| Breakout Force | 25884 lbs (11,741 kg) |
| Bucket Capacity - heaped | 3.6 cu yds (2 m) |
| Bucket Capacity - struck | 3.1 cu yds (2 m) |
| Bucket Width | 8.9 ft (2 m) |
| Dump Clearance at Max Raise | 10.6 ft (3 m) |
Dimensions
| Ground Clearance | 1.3 ft (0 m) |
| Height - Top of Cab | 10.9 ft (3 m) |
| Hinge Pin - Max Height | 14.2 ft (4 m) |
| Length with Bucket on Ground | 26.9 ft (8 m) |
| Reach at Max Lift and Dump | 3.7 ft (1 m) |
| Wheelbase | 10.2 ft (3 m) |
| Width Over Tires | 8.8 ft (2 m) |
Engine
| Aspiration | Turbocharged charge air cooled |
| Displacement | 414 cu in (0 m) |
| Engine Model | 6068H, Tier III certified |
| Net Power | 198 hp (148 kw) |
| Number of Cylinders | 6 |
| Power Measured @ | 1800 rpm |
| Torque Measured @ | 1600 rpm |
| Torque Rise | 55% |
Hydraulic System
| Dump Time | 1.3 sec |
| Lower Time | 2.7 sec |
| Pump Flow Capacity | 59 gal/min (223 l/min) |
| Pump Type | variable displacement, axial piston |
| Raise Time | 5.9 sec |
| Relief Valve Setting | 3675 psi |
Operating Specifications
| Alternator Supplied Amperage | 80 A |
| Cooling System Fluid Capacity | 7.2 gal (27 l) |
| Engine Oil Fluid Capacity | 5.1 gal (19 l) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (19 l) |
| Fuel Capacity | 93 gal (352 l) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 l) |
| Operating Voltage | 24 V V |
| Operating Weight | 33772.7 lbs (15,319 kg) |
| Rear Axle Oscillation | 24 ° |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (15 l) |
| Static Tipping Weight | 25483.3 lbs (11,559 kg) |
| Tire Size | 20.5 R 25 |
| Transmission Fluid Capacity | 5.6 gal (19 l) |
| Turning Radius | 17.3 ft (5 m) |
Transmission
| Max Speed - Forward | 24.6 mph (39 kph) |
| Max Speed - Reverse | 16 mph (26 kph) |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Transmission Type | Countershaft, powershift |
