Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Boyu
-
Model Number:
-
SLWS-4
-
Keywords:
-
Wire Rope Temporary Mesh Sock Joints Cable Sleeve Connector
-
Conductor size (mm2):
-
500-630
-
Rated load (kN):
-
40
-
Breaking load (kN):
-
80
Quick Details
-
Type:
-
Other
-
Application:
-
Power
-
Gender:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Boyu
-
Model Number:
-
SLWS-4
-
Keywords:
-
Wire Rope Temporary Mesh Sock Joints Cable Sleeve Connector
-
Conductor size (mm2):
-
500-630
-
Rated load (kN):
-
40
-
Breaking load (kN):
-
80

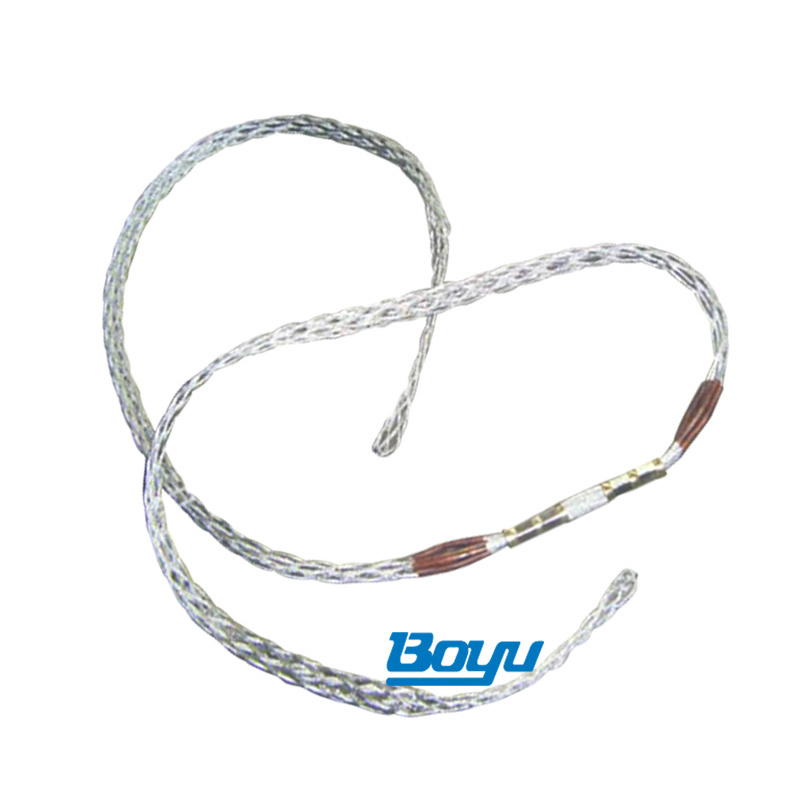

Connedtion Grips Two Open Ends Cable Sleeve Connector
DOUBLE HEAD TYPE
|
Model |
Conductor size (mm2) |
Rated load (kN) |
Breaking load (kN) |
|
SLWS-2 |
120~150 |
20 |
40 |
|
SLWS-2.5 |
185~240 |
25 |
50 |
|
SLWS-3 |
300~400 |
30 |
60 |
|
SLWS-4 |
500~630 |
40 |
80 |
|
SLWS-5 |
720 |
50 |
125 |
|
SLWS-7 |
900 |
70 |
175 |
|
SLWS-8 |
1000~1120 |
80 |
200 |
The double head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
ONE HEAD TYPE
The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
|
Model |
Conductor size (mm2) |
Rated load (kN) |
Breaking load (kN) |
|
SLW-1.5 |
70~90 |
15 |
30 |
|
SLW-2 |
120~150 |
20 |
40 |
|
SLW-2.5 |
185~240 |
25 |
50 |
|
SLW-3 |
300~400 |
30 |
60 |
|
SLW-4 |
500~630 |
40 |
80 |
|
SLW-5 |
720 |
50 |
125 |
|
SLW-7 |
900 |
70 |
175 |
Product Profile
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
