Quick Details
-
OEM:
-
YES
-
Standard:
-
IEC61952
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Red/Grey
-
ODM:
-
YES
-
OEM:
-
YES
-
Standard:
-
IEC61952

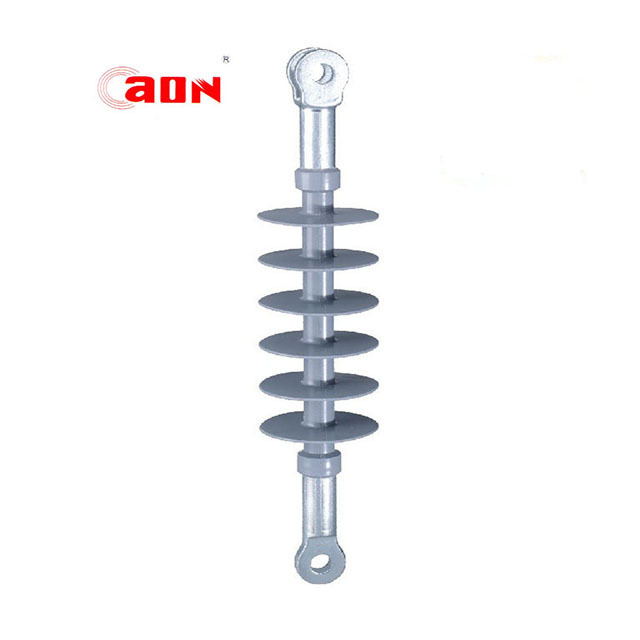

1.Size and technical data of 24kV composite polymer insulators
TYPE:FXB1-24/70CT
| Rated voltage(KV) | Rated mechanical load(KN) | Structure height(mm) |
Insulating distance(mm) |
Min nominal creepage distance(mm) |
Diameter of shed |
1min power frequency wet withstand voltage (kv) | Full wave lightning impulse withstand voltage(peak value) |
| 24 | 70 | 455±15 | 260 | 680 | 100 | 70 | 155 |
2.Materials of 24kV composite polymer insulators
1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.
4).5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
3. Company advantage:
(The world's only one insulators maker who can produce all material as below by ourselves)
1-We produce epoxy resin fiberglass rod.
2-We produce HTV silicone rubber.
3-We produce HDG metal fittings.
4-Famous and top brand in China.
5-Superior quality and competitive price.
6-Almost 20 years experience with insulators, surge arresters and fuse cutouts.
7-Exported to more than 35 countries.
8-Guarantee: we can give 15 years wanrantee period after shipment.
9-ISO9001 & ISO14001 & OHSAS18001 and third party support and assurance from Envertec-Europe.
