7 Inch Android Touch Screen POE Tablet For Home Lighting Control

7 Inch Android Touch Screen POE Tablet For Home Lighting Control

FOB Reference Price: Get Latest Price

≥1 Pieces

US $170

≥100 Pieces

US $150

≥1000 Pieces

US $140

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Operating System:: Android 6.0

Type:: Tablet PC

Weight:: 350g

Place of Origin:: Guangdong, China

Brand Name:: SIBO

Model Number:: Q896S

CPU:: 8-Core

Bracket:: Inwall, Onwall, Glass Wall, Desktop

Optional Function:: POE, NFC Reader, LED Light, Serial Port, Arduino

Working Temperature:: 0-40 Degree

Color:: Black/White

Network:: WIFI, Ethernet, BLE

POE:: IEEE802.3af, 48V

Ratio:: 16:10

Brightness:: 350 cd/㎡

Certification:: ROHS, CE, FCC, CE, RoHS

Quick Details

Screen Size:: 7"

Memory Capacity:: 2gb

Display resolution:: 1024X600

Operating System:: Android 6.0

Type:: Tablet PC

Weight:: 350g

Place of Origin:: Guangdong, China

Brand Name:: SIBO

Model Number:: Q896S

CPU:: 8-Core

Bracket:: Inwall, Onwall, Glass Wall, Desktop

Optional Function:: POE, NFC Reader, LED Light, Serial Port, Arduino

Working Temperature:: 0-40 Degree

Color:: Black/White

Network:: WIFI, Ethernet, BLE

POE:: IEEE802.3af, 48V

Ratio:: 16:10

Brightness:: 350 cd/㎡

Certification:: ROHS, CE, FCC, CE, RoHS

Product Description

Product Name	7 Inch Android Touch Screen POE Tablet For Home Lighting Control
Material	Indusrtial standard material
Main Function	POE, NFC reader, LED light bar
Other function	WIFI, BLE, camera, temperature & humidity sensor, serial port, GPIO, Arduino nano board
Installation	Inwall, onwall, on glass wall, on desktop

7 Inch Android Touch Screen POE Tablet For Home Lighting Control :

-Android 6.0 OS, rooted right.

-IPS touch screen, resolution:1024x600

-POE, IEEE802.3af, 48V

-Support source code to integrate with your software

-Brackets for installation

-Custom boot up logo

Details Images

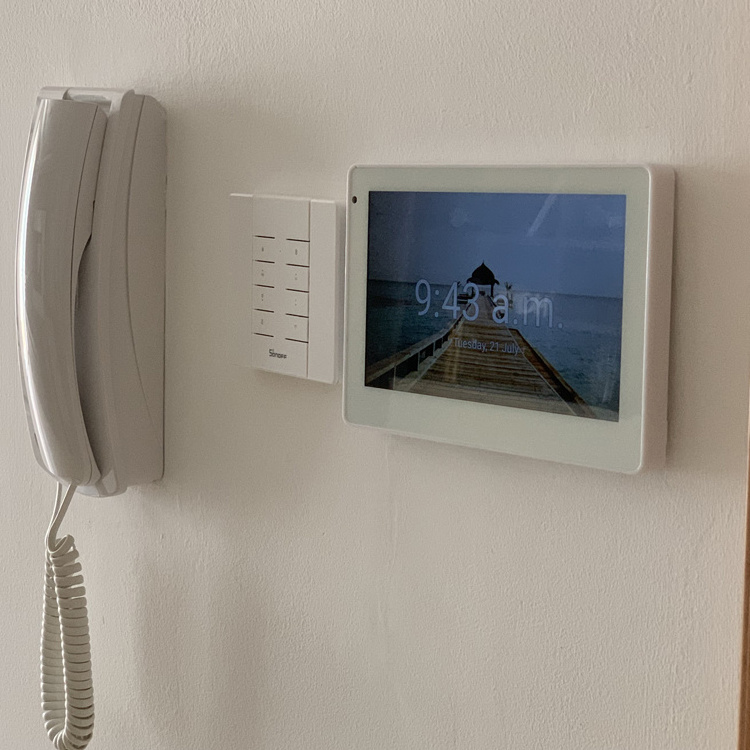

SIBO 7'' POE Tablet For Smart Home:

Nowaday, smart home has already become an possible concept by using smart tablet as a controller. SIBO 7'' tablet Q896S is definitedly designed for intelligent home. This tablet has poe function that just uses one cable for ethernet and power supplying at the same time. Also there are an intercom function, so it is available to communicate to other people in different rooms. What's more, this tablet supports google apps or software developed by yourself, so if your don't have the development capability, you still can use this tablet in your house. Meanwhile, Q986S has many kinds of brackets for installation.

Custom tablet according to the different requirements:

1.Support small quantity and sample order.

2.Lead time is 5-7 days.

Standard Interfaces：

-HD-MI output

- DC jack

-Lan port, RJ45

-USB 2.0, host and device

-Standard Interfaces

-Serial port

-GPIO

-Arduino nano

-Standard Interfaces

-Temperature & humidity sensor

Proximity & humidity sensor:

With this function, you can know the temperature and humidity in the room, which will hlep to take good care of yourself.

IPS touch screen:

Glass+glass screen

Resolution 1024*600, 350 nits

Specification

Model Number			Q896S
Hardware Specs	Processor	Allwinner A83T processor
		CPU	8-Core ARM A7 CPU, 1.2Ghz
		Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
		RAM	2GB
		Nand Flash	8GB

Software Feature	System	Google Android 6.0
		Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
		Audio	Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
		Language	Support multi-languages

Interfaces	Back	HD-MI Out
				DC IN Power Terminal (9V-36V)
				Ethernet Interface(RJ45)
				USB Socket HOST Mode By Default, Can be configurated to DEVICE
				Optional:RS232,RS485

Network	WIFI+BLE	WIFI (802.11b/g/n), BLE V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Network		LAN Port	Ethernet RJ45
Power Supply	DC IN	DC 9V - 36V
Boot Up	Auto Boot	Auto Boot Up When Power Supplies
Custom details, please feel free to contact us ！

Installation Instructions

Packing&Shipping

Packaging	10 units/ ctn
Carton dimension	28.5x27.8x31.5cm
Weight	7.5kg/ctn
Shipping	Fedex/DHL/UPS/TNT or your option
Delivery day	Sample:5-7 days, batch goods:20-25 days
Warranty	12 months

Company Introduction

About us:

Since established in 2001, Shenzhen SIBO Industrial & Development Co., Ltd already had an 18-year experience in tablet industry as a manufacturer. Right now, our mian product are 7'' , 9'' and 10.1'' custom tablets. With the good quality control and humanized customized service, SIBO company has already earned a good reputation from domestic and oversea. We will devote our expertise and technique to meet your business needs from designing to manufacuring the right products.

Our Services & Strength

* 18 Years Experiences in Tablet PC for Automation
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery

Certifications

FAQ

Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.

Question: What is your company mainly products?
Answer: Our mainly products are 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital
signage, access & security control, home automation, industrial control, energy & power management...

Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.

Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)

Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT
to enable our customers to get their goods rapidly.

Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.

Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.

Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)

Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we
repair you without labor charge collection.

Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
