Telephone Phone Network RJ11 Cable Line ADSL Modem Micro Filter Splitter

Telephone Phone Network RJ11 Cable Line ADSL

ADSL:ADSL connections use existing copper telephone lines to transmit data to and from the ISP.  A special Internet service which is available in many areas.

ADSL splitters/filters is an electronic device that isolates the ADSL and voice bands. An ADSL Line Filter is required whenever you connect a computer to the internet using Broadband over a standard telephone line. The filters/splitter divide the signals on the telephone line between the high pitched computer modem sounds and the lower pitched human voices .

Telephone Phone Network RJ11 Cable Line ADSL 1, UL, ROHS compliant;

2, Low pass filter, optimum performance;

3, EMI/FRI filtering included. ADSL filter eliminates the interference of broadband modem signal and voice signal, and enables computer and telephone to be used the same time without any equipment installed.

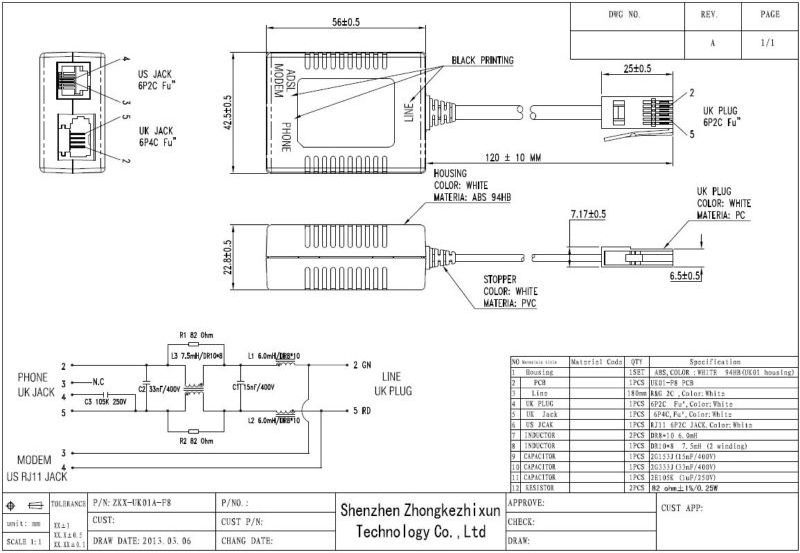

wired RJ11 plug in one end for telephone signal in, and 2 RJ11 jacks in another end, separatelly for telephone signal out, and broadband modem signal out. EMI/FRI filtering included.

Telephone Phone Network RJ11 Cable Line ADSL parameter

Usage of  Telephone Phone Network RJ11 Cable Line ADSL

HOUSING: ABS  CONTACT:PHOSPHOR BRONZE,HARD GOLD  SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH

ELECTRICAL
CURRENT RATING:1.5AMPS VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min  INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX
WORKING  TEMPERATURE :  -35°C ~80°C

Quality Guarantee of  Telephone Phone Network RJ11 Cable Line ADSL

Machine of    Telephone Phone Network RJ11 Cable Line ADSL

Production Lines: five lines in Shenzhen Factory, Eight lines in Meizhou Factory.

Shipping ways

ADSL splitters/filters is an electronic device that isolates the ADSL and voice bands. An ADSL Line Filter is required whenever you connect a computer to the internet using Broadband over a standard telephone line.

The filters/splitter divide the signals on the telephone line between the high pitched computer modem sounds and the lower pitched human voices.

Our  long-term cooperation customer:

This product is suitable for the ADSL business with phone lines, separation of the low frequency signal and high frequency data voice signal, to make it through the same route transmission noninterference, a

void the following phenomena: one, the Internet phone, phone call there is noise in two, while surfing easy to drop, a separator for a telephone, a few extension installing a few separator to ensure no messenger wire!Three, the three ports of this separator: a phone line into, ADSL, one answer the phone. LINE for the telecommunication authority outside interface, PHONE for telephone interface, for ADSL MODEM.

Team Culture:

Quality Assurance

1. All electronic components are brand new
2. Professional QC team 100% check and test before shipment
3. Over charge protection, over discharge protection, over current protection.
Why choose ZHONG KE XUN  ELECTRONIC (H.K.)CO., LTD?
About us
SHENZHEN ZHONG KE XUN  ELECTRONIC (H.K.)CO., LTD
specializes in rj11-rj50 network cable .adapter .pcb jack .plug &connector .data cable and other related products. We integrate research and development, production, sale, service and technology. Since our establishment in 2001, our company has always focused on the "cable&adapter" research and development, management and research. We are aiming at a multi-win situation with our partners, staff members, shareholders and suppliers.

Advantages
1. We accept small quantity , delivery fast , also accept paypal. .2.Professional QC team 100% check and test before shipment
3. Over charge protection, over discharge protection, over current protection.
4. Competitive price , because we are factory
5.Environmently friendly, energy-saving, complying with the safe certification standard.
6.High Quality Competitive Price
7. Welcome OEM & ODM

About Shipping:
1.We ship items by DHL/FEDEX/UPS/EMS/TNT(If with Exw price),another by sea and by air both ok(if with FOB price)you can choose by yourself.
2.We hope goods arrive on time,but since this is an international delivery,shipping time will be highly depended on the courie company and local customs/duties.Thank you for your kindly understanding.

Choose ZKX, Creating Your Greater Value!

1.ADSL splitter, 2VDSL splitter,3telephone adapter, 4telephone  plug,

5telephone accessory,6surface mount box,7wall plate,8,network direct connection

9network cable connectors, 10TAE NIF  plug adapter
